Available Immediately. Please note: sold “as-is, where-is.” Pricing excludes decommissioning, loading, shipping, installation, training, taxes, and all other associated costs.
| Max Profile Width | 36" | 914.4 mm |
| Minimum Profile Width | 4" | 101.6 mm |
| Max Profile Height | 6" | 152.4 mm |
| Minimum Profile Height | 4" | 101.6 mm |
| Power Source | Hypertherm 260XD | Hypertherm 260XD |
| Amps | 260 | 260 |
| In-feed Conveyors | 68' | 20,726 mm |
| Out-Feed Conveyors | 46' | 14,021 mm |
| Dust Collector | Donaldson Torit DF0 3-6 | Donaldson Torit DF0 3-6 |
| Power Requirements | 480V/60Hz | 480V/60Hz |
Beam Capacity:
Beam Width: 4" – 36"
Beam Height: 4" – 6"
KSS Tube Capacity:
Minimum: 2" x 2"
Maximum: 24" x 16"
Channel Capacity
Width: 3" – 36"
Height:1.25" – 4"
Angle Capacity:
Minimum: 3" x 3"
Maximum: 8" x 8"
Strip Processing:
Width: 4" – 36"
Thickness: 0.25" – 1.25"
Material Length:
Useful Length: 40'
Performance:
Travel Speed: 170 FPM
Horsepower: 7.5 HP

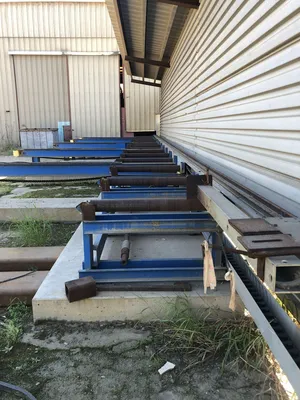

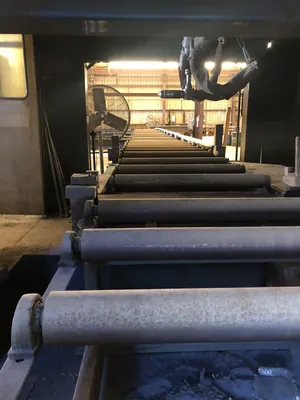

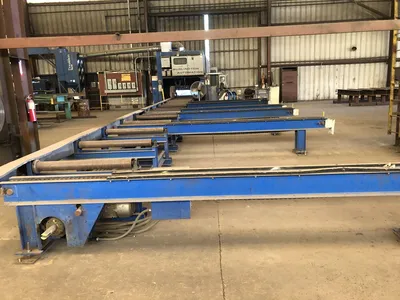

Conveyors:
Infeed Conveyor: 68'

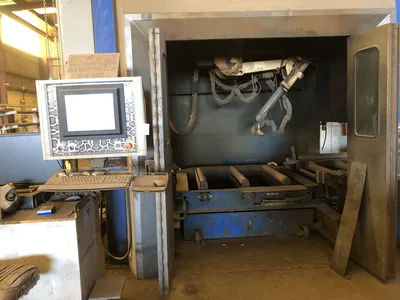

Outfeed Conveyor: 46' with 9’ of cabin space for the robot
Infeed: 68’
Outfeed: 46’ with 9’ of cabin space for the robot

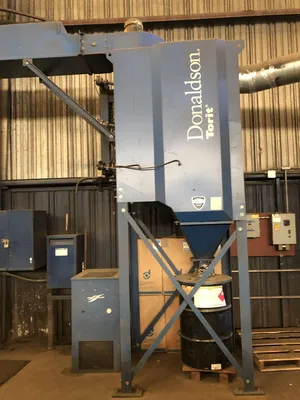

Donaldson Torit DF0 3-6 Dust Collector

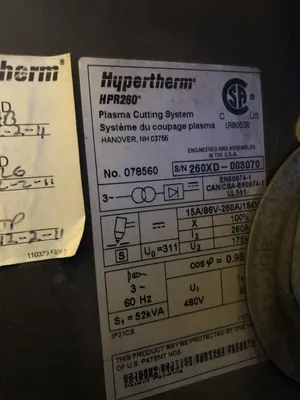

Hypertherm 260XD
