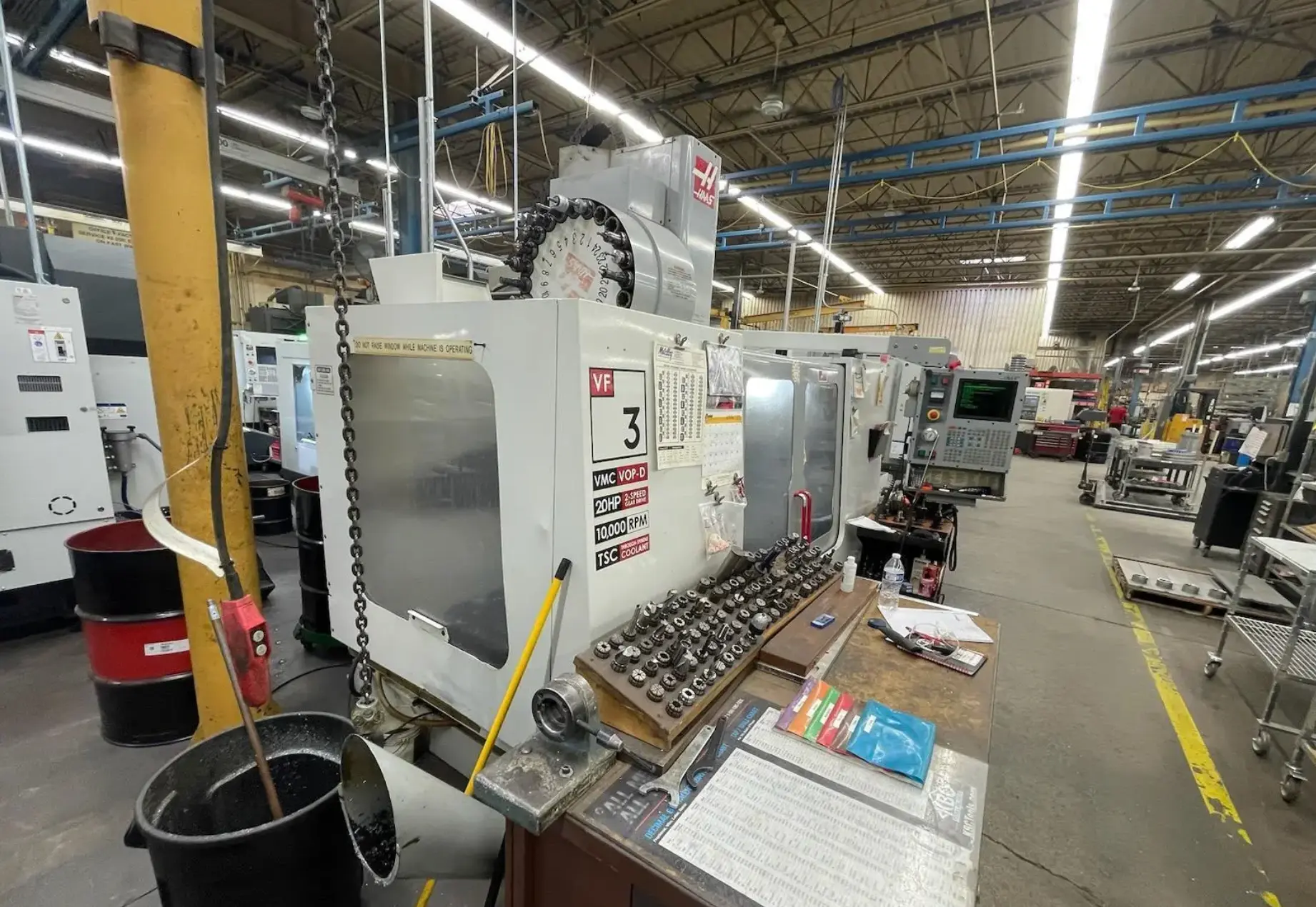

Vertical Machining Center, used condition, offers a 40"x20"x25" work area, 20 hp, 10,000 RPM spindle, CAT-40 taper, and 3-axis capability. Features include programmable coolant nozzle, rigid tap, custom macros, and more.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 19" | 482.6 mm |
| Table-L | 40" | 1,016 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
10,000 RPM Spindle
2-Speed Gear Box
Programmable Coolant Nozzle
Quick Code Programming
Rigid Tap
Coordinate Rotation & Scaling
Custom Macros
Remote Jog Handle
Through Spindle Coolant
Coolant Tank & Pump
