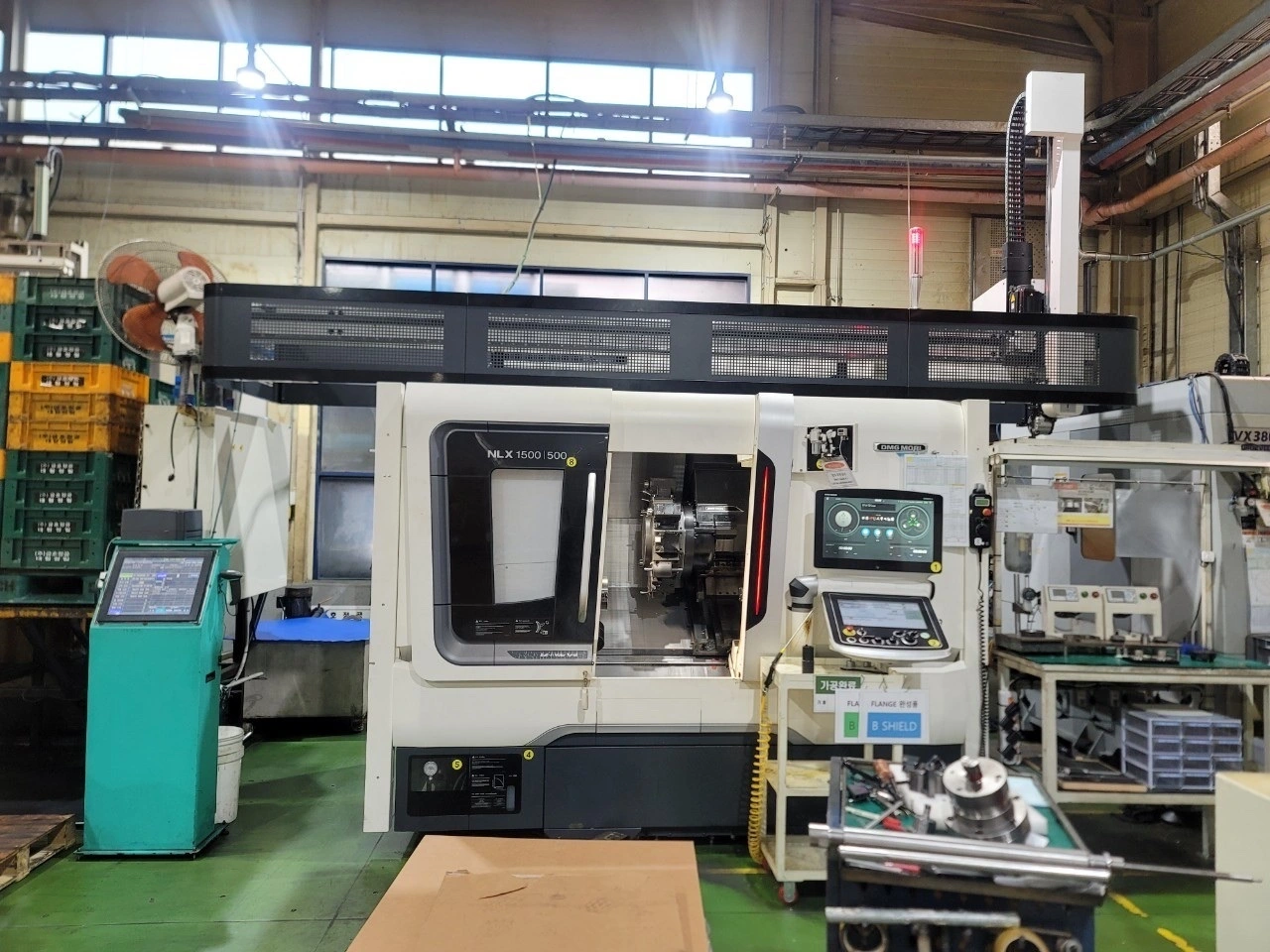

USED 2022 DMG MORI NLX 1500Y 500 W/ GANTRY
Overview
Specifications
| Swing Over Bed | 36.4" | 924.56 mm |
|---|---|---|
| Turning Diameter | 15.1" | 383.54 mm |
| Turning Length | 20.2" | 513.08 mm |
| Chuck Size 1 | 6" | 152.4 mm |
| Spindle Nose 1 | A2-5 | A2-5 |
| Spindle Bore Diameter 1 | 2.4" | 60.96 mm |
| Bar Capacity 1 | 2" | 50.8 mm |
| Spindle Speeds 1 | 6,000 RPM | 6,000 RPM |
| Spindle Horsepower 1 | 20 hp | 14.9 kW |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 23.2" | 589.28 mm |
| Y1 - Axis Travel | 3.9" | 99.06 mm |
| C - Axis Indexing 1 | 0.0001 | 0.0001 |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 393 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 10,000 RPM | 10,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Tailstock Taper | MT #4 | MT #4 |
| Programmable Tailstock | 'Yes' | 'Yes' |
| Tailstock Travel | 22.2 | 22.2 |
| Machine Weight | 11,000 lb | 4,989.5 kg |
Equipped With
CELOS M730UM CNC CONTROL
GX-05 AIV GANTRY LOADER
THROUGH SPINDLE COOLANT
TOOL SETTER
Z AXIS SCALE
MILLING HOLDERS
CHIP CONVEYOR
