USED AZZINI VINIFICATORE VSE 300 HL

Overview
Manufacturer:
AZZINI
Stock #:
H4450-1
Description

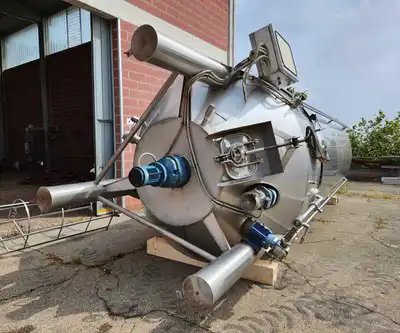

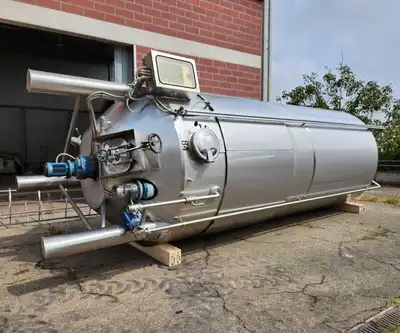

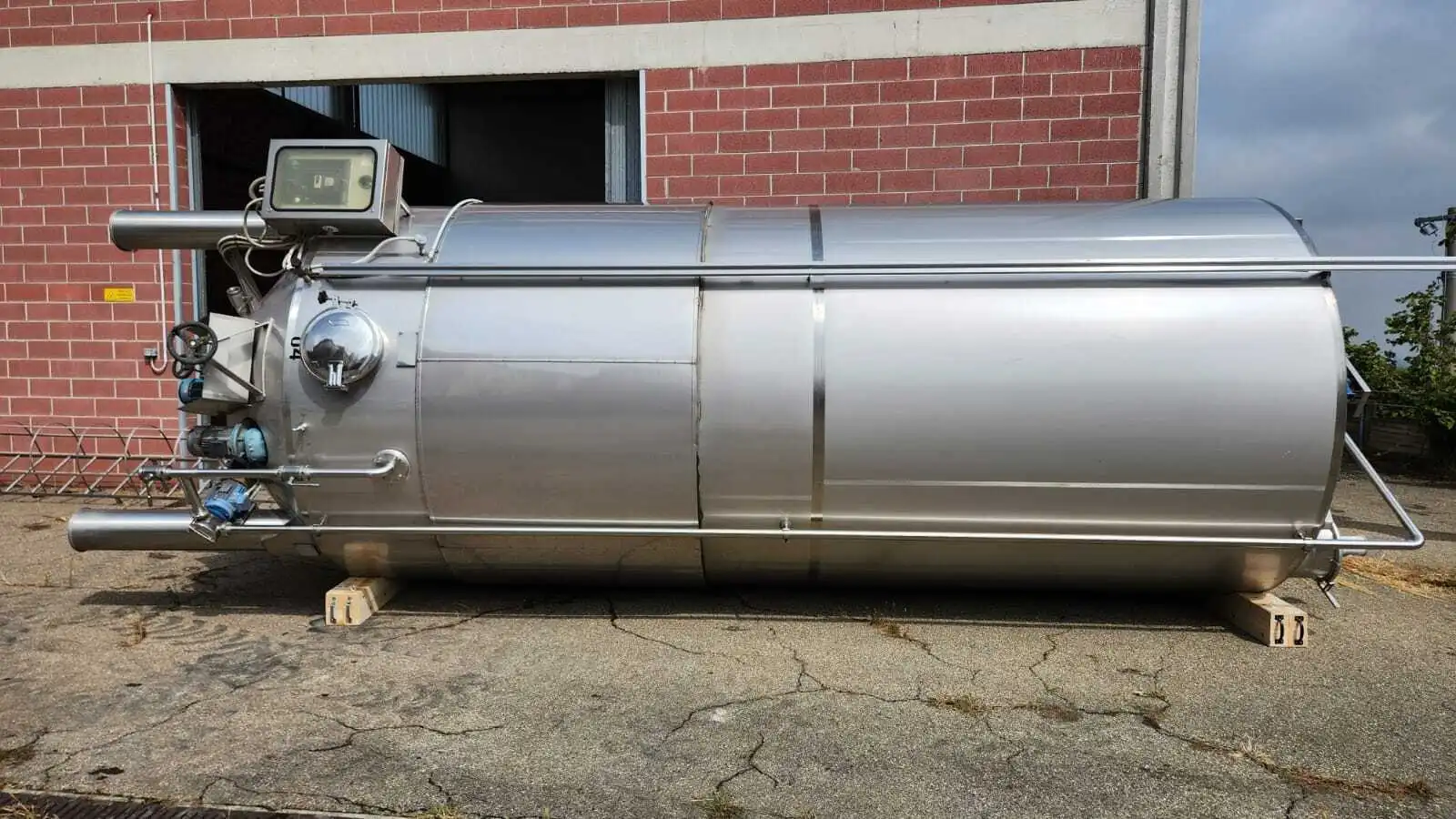

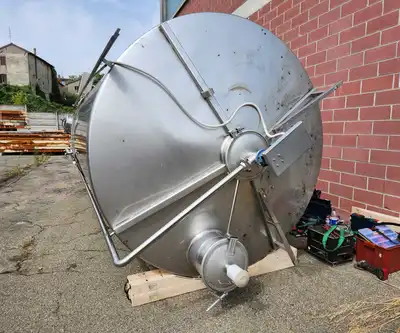

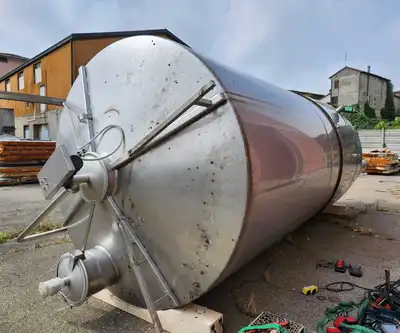

Used Azzini stainless steel vertical agitated tank / maceration tank.

- Manufacturer: Azzini S.p.A., Italy
- Model: VSE 300 HL
- Capacity: approx. 30,000 litres
- Construction material: stainless steel AISI 316 for the main vessel, parts of the cover in AISI 304
- Construction type: welded conical top and conical bottom
- Dimensions: approx. 2540 mm diameter × approx. 5700 mm straight side height × approx. 8050 mm overall height
- Agitator: bottom-mounted scrapping agitator
- Equipped with: recirculation pump and filter
- Mounted on: stainless steel legs

Specifications
Capacity30,000 L7,925.2 gal
Diameter2,450 mm8.04'
Height8,050 mm26.41'
Type of stainlessAISI 316AISI 316
Type Of HeadsWelded conical top and bottomWelded conical top and bottom
Vertical/HorizontalVerticalVertical
Legs/Lugs/SkirtLegsLegs
