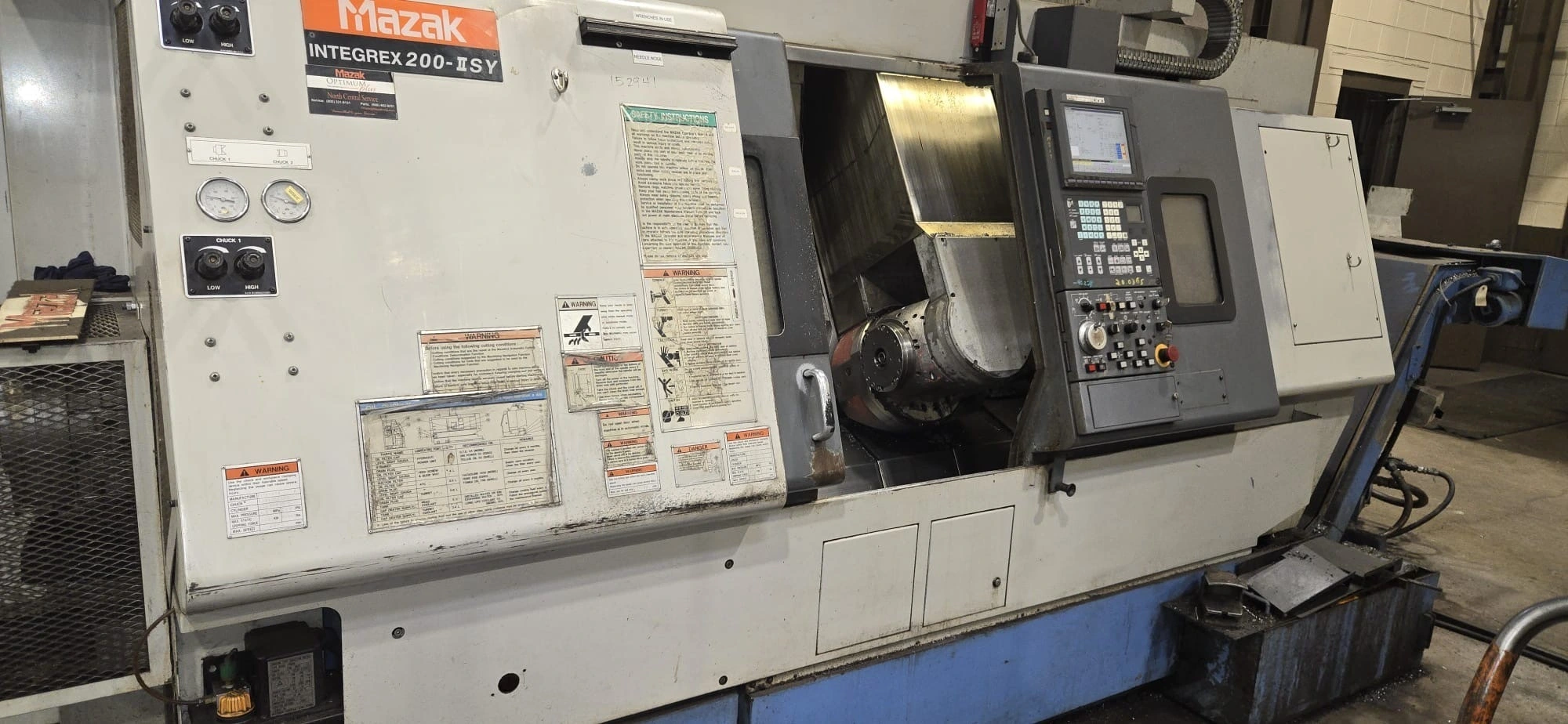

2001 Mazak INTEGREX 200-IISY, 5-axis CNC lathe, features 21.25" swing, 39.5" machining length, 10" chuck, 20 hp, and max 5000 RPM. Equipped with high-pressure coolant, 40-tool magazine, spindle speeds up to 10,000 RPM, and advanced control options.
| # Axis | 5 | 5 |
| Swing | 21.25" | 539.75 mm |
| Machining Length | 39.5" | 1,003.3 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 21.25" | 539.75 mm |
| Tailstock | No | No |
| Control | CNC (Mazatrol Fusion) | CNC (Mazatrol Fusion) |
Mazak Super Flow I High Pressure Coolant 1000 PSI/6GPM
Super Flow Pump
Spindle Bore Dia. 76mm (2.99") for Main Spindle Max RPM
10" Chuck B210A815 (Bore: 76 / 1st Spindle)
Chip Conveyor Side Disposal (Hinge Type)
Coolant Through Milling Head
Multitap Transformer
Machine Arranged 230-460V
PCMCIA Interface (2-Slot)
3.5" Floppy Disk Drive (FDD)
2GB Hard Drive
40 Tool Magazine
2nd Spindle C-Axis 0.001 Degree Increment
EIA/ISO Option Package (for Integrex with B Axis)
Hydraulic Pressure Interlock
B-Axis 0.001 Degree Increment N/A Contouring
Tool Eye
Operator Door Interlock with Lock-Switch
Rotary-Tool Spindle Speed 10000 RPM
5KG/71 PSI Coolant Flood/Thru Not Simul-Flowable
B-Axis 0.001 Degree Increment Contouring/EIA Only
Milling-Spindle Synchronous Tapping
Overload Detection System
High/Low Chuck Pressure System (Main Spindle)
High/Low Chuck Pressure System (2nd Spindle)
High-Speed PC-Card (K6-233MHz)
Geometry Compensation Function
