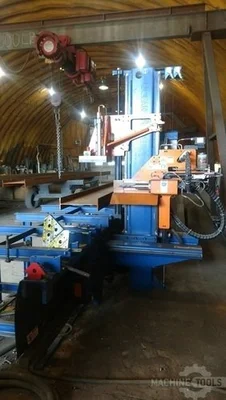

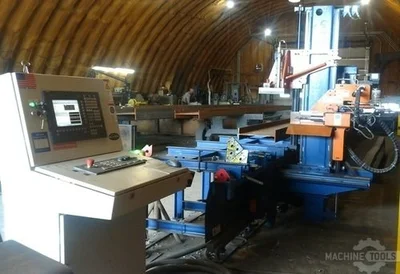

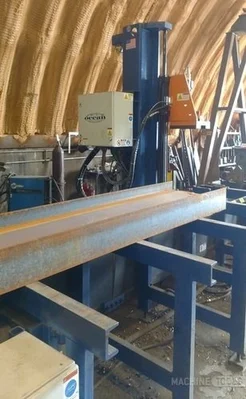

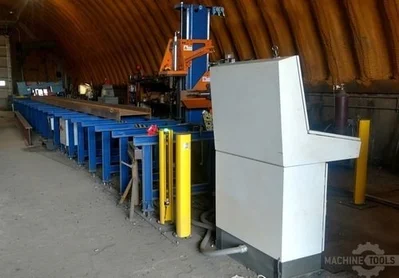

USED PEDDINGHAUS OCEAN AVENGER

Brand – PEDDINGHAUS Model – OCEAN AVENGER Type – Beam / Drill Lines Year – 2016 Condition – Used – Excellent

Power: 20 hp
RPM: 545 RPM
Control: CNC (Siemens CNC Console)
Manufacturer: Peddinghaus Corporation Maximum Beam Size: 40″ x 40 ft Maximum Beam Weight: 730 lbs/ft (1088 kg/m) Minimum Drill Diameter: 1/4″ (6.5 mm) Maximum Drill Diameter: 2″ (50 mm) Maximum Material Thickness: Up to 10″ (250 mm) Maximum X-Axis Speed: 120 ft/min Maximum Y-Axis Speed: 120 ft/min Spindle Motor Power: 13 3/4 HP Drilling Speed Range: 0–545 RPM (continuously variable) Drilling Feed Rate: 2″–10″ per minute (50–254 mm), infinitely variable Spindle Stroke: 13″ (330 mm) max Total Power: 20 HP (14.9 kW) Power Supply: 208–575V, 3-Phase, 60 Hz (50 Hz available) Average Output: 200–400 holes per hour depending on profile drilled
