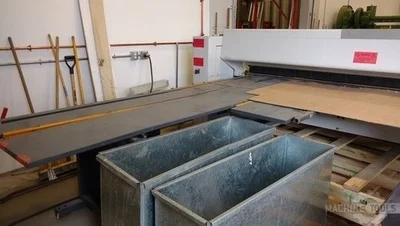

USED RAS TURBOBEND PLUS 62.30

Brand – RAS Model – TURBOBEND PLUS 62.30 Type – Folding Machines Year – 1998 Condition – Used – Excellent

Max Thickness: 0.0787″
Max Thickness (gauge): 14 gauge
Overall Length: 126″

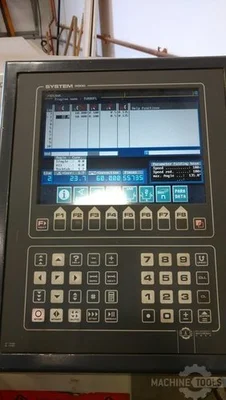

Control: CNC (System 5000)
Date of Manufacture: 1998 Maximum Sheet Thickness (Mild Steel): 2 mm / 14 ga Working Length: 3200 mm / 125.9″ Back-Gauge Depth (Standard): 6 – 1550 mm / 0.24″ – 61″ Back-Gauge Accuracy: ±0.15 mm / ±0.006″ Upper Beam Open Height: Max 200 mm / 7.87″ CNC Folding Beam Adjustment: Max 5.5 mm / 0.2″ Working Height: 850 mm / 33.5″ Machine Length: 4340 mm / 170.0″ Machine Width: 2100 mm / 83.7″ Machine Height: 1380 mm / 54.5″ Machine Weight: Approx. 3500 kg / 7,725 lbs Air Pressure Requirement: 5 bar / 72.5 PSI Drive Power (Upper Beam): 1.1 kW / 1.5 hp Drive Power (Folding Beam): 2.2 kW / 3.0 hp

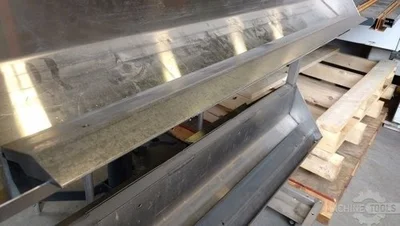

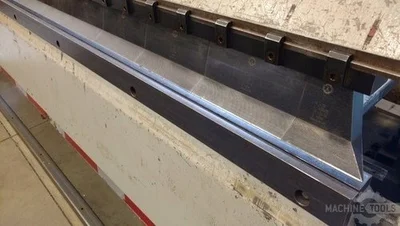

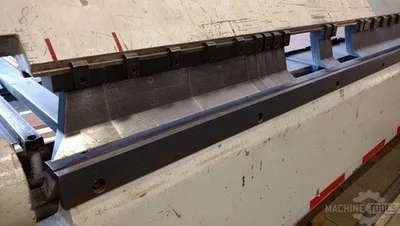

USB interface for parameter backup (replaces floppy disk) 10’ travel back gauge on one side 60” main back gauge 10’ solid nose bar in 3 equal sections Folding beam fingers in good condition Complete set of manuals: operation, control, and electrical
