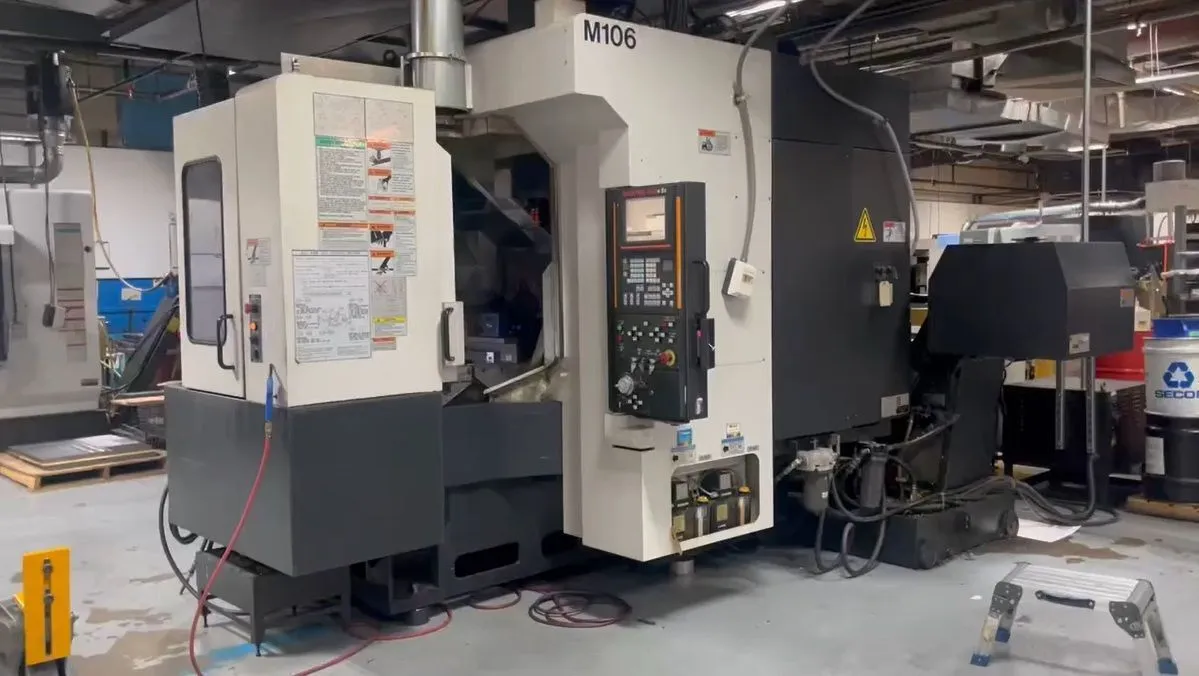

USED 2004 MAZAK VARIAXIS 500-5X
Overview
Description
MAZAK VARIAXIS 500-5X, 2004 model, vertical machining center with 20.08" x/y-axis travel, 18.11" z-axis travel, 12,000 RPM spindle, 120-tool capacity, and Mazatrol CNC. Includes coolant systems, chip conveyor, and more. Available now.
Specifications
| TABLE LENGTH | 19.7" | 500.38 mm |
|---|---|---|
| TABLE WIDTH | 15.7" | 398.78 mm |
| NUMBER OF PALLETS | 2 | 2 |
| TABLE CAPACITY | 661 lb | 299.8 kg |
| X-AXIS TRAVEL | 20.08" | 510.03 mm |
| Y-AXIS TRAVEL | 20.08" | 510.03 mm |
| Z-AXIS TRAVEL | 18.11" | 459.99 mm |
| A-AXIS ROTATION | 120 DEGREES, +/-30 DEGREES | 120 DEGREES, +/-30 DEGREES |
| C-AXIS ROTATION | 360,000 POSITIONS | 360,000 POSITIONS |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 120 | 120 |
| MAX RAPIDS | 1,969 in/min. | 50 m/min. |
Equipped With
MAZATROL PC-FUSION CNC 640M 5X CONTROL WITH MS WIN 2000 PRO
DIE-MOLD PACKAGE WITH ETHERNET OPERATION-5X
- PROTOCOL B RS-232C
- MAZACC 3D HIGH-SPEED SOFTWARE PACKAGE
- FINE SPLINE INTERPOLATION (EIA)
- EHTERNET OPERATION FUNCTION
- HIGH-SPEED PC-CARD (K6-233MHZ)
INCH/METRIC CONVERSION
PCMCIA INTERFACE (2 SLOT)
3.5" FDD UNIT
NETWORK INTERFACE (FOR LAN & MODEM)
DYNAMIC COMPENSATION 2 (EIA/ISO)
PREP FOR VISUAL TOOL ID/DATA MGT
PREP COOLANT THROUGH SPINDLE (SUPER FLOW)
COOLANT THROUGH SPINDLE @ 71 PSI
PREP MAZAK MONITORING SYSTEM B OPTICAL TYPE MP10
2 PALLET CHANGER
WORKPIECE AIR BLAST
FLOOD COOLANT @ 64 PSI / 8 GAL
DELUGE COOLANT SYSTEM 60L/MIN
AUTO POWER ON/OFF & WARM-UP
SIGNAL TOWER (3 COLORS LIGHTS)
ADDITIONAL WORK LIGHT
CHIP CONVEYOR RIGHT SIDE DISP (CONSEP)
AUTO PECKING CYCLE WITH LOAD DETECTION
EIA/ISO CONV (REQ EIA/ISO INPUT)
ADDITIONAL M-CODE FUNCTION (3M-CODES)
COST FOR ABOVE EQUIPPED SYSTEM IF PURCHASED NEW: $295,000
** AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
