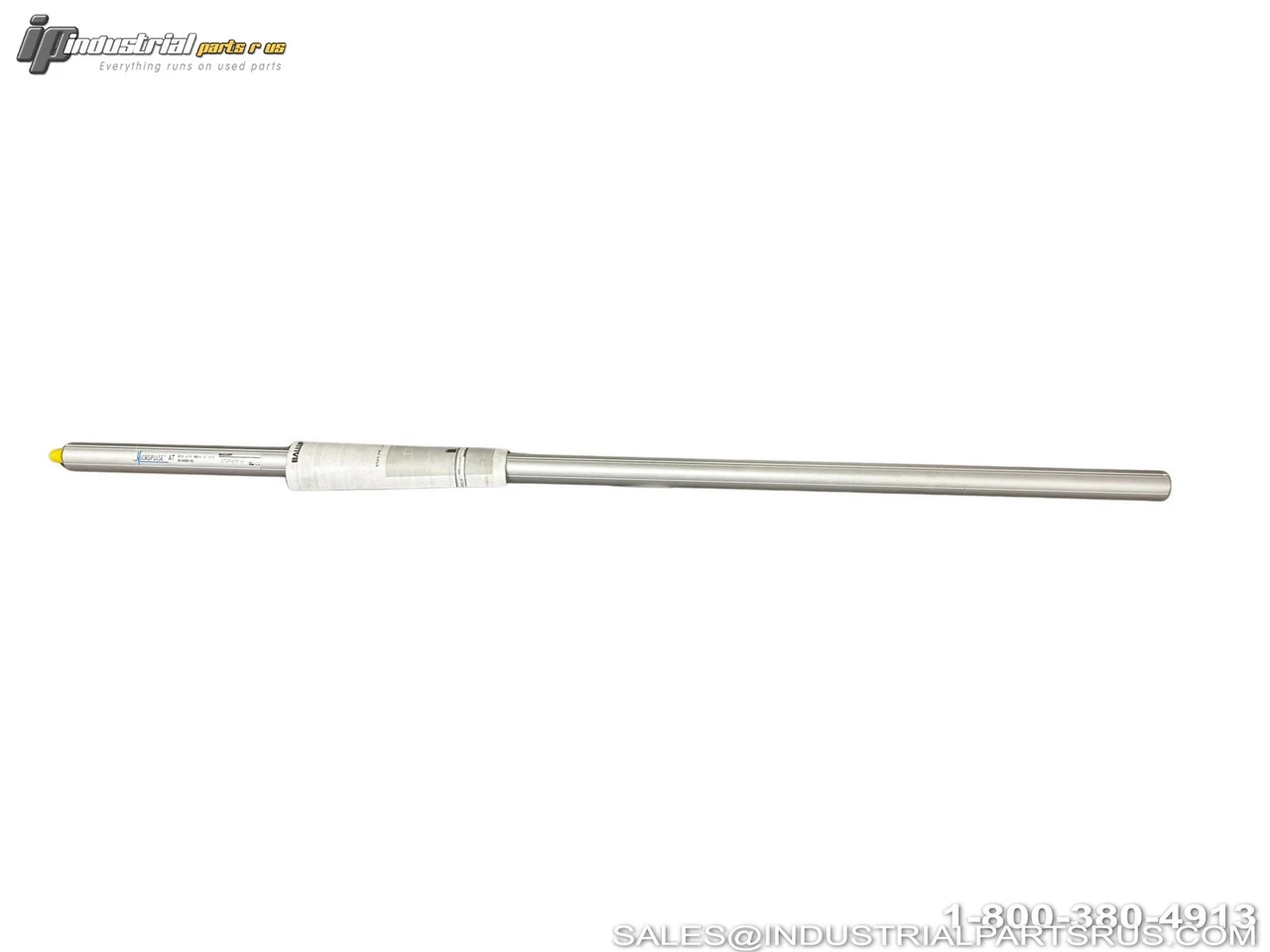

USED BALLUFF BTL6-A110-M0914-A1-S115
Overview
Description
The Balluff BTL6-A110-M0914-A1-S115 is a magnetostrictive linear position sensor designed for precise, contact-free position measurement. This profile series transducer features a hermetically sealed aluminum housing with IP67 protection, making it suitable for harsh industrial environments including presses, injection molding machines, and gantry robots.
Specification
Value
Brand
Balluff
Model/Part Number
BTL6-A110-M0914-A1-S115
Product Type
Magnetostrictive Linear Position Sensor
Series
Profile Series
Measuring Range
914 mm
Housing Material
Aluminum, Anodized
Mounting Type
Mounting Clamps
Connection Type
Connector, M12x1, 8-pin
Analog Output
0...10 V, 10...0 V
Operating Voltage
20...28 VDC
Sampling Frequency
1000 Hz
Resolution
≤ 20 µm
Non-linearity
±200 µm
Repeat Accuracy
≤ ± 10 µm
Operating Temperature
0...70 °C
IP Rating
IP67
Maximum Magnets
1
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 10.00 LBS | 10.00 LBS |
|---|
SKU: AI0835
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 10.00 LBS
Width: 8.00
(in)
Height: 8.00
(in)
Depth: 48.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Analog Voltage 0-10V / 10-0V
Sensor Type: Magnetostrictive
Manufacturer: Balluff
Part Number: BTL6-A110-M0914-A1-S115
Shelf: K-60
Model: BTL6-A110-M0914-A1-S115
MPN: BTL6-A110-M0914-A1-S115
Type: Linear Sensor
