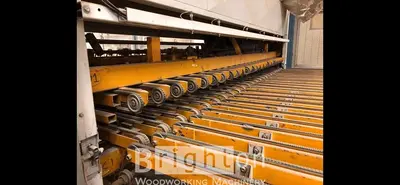

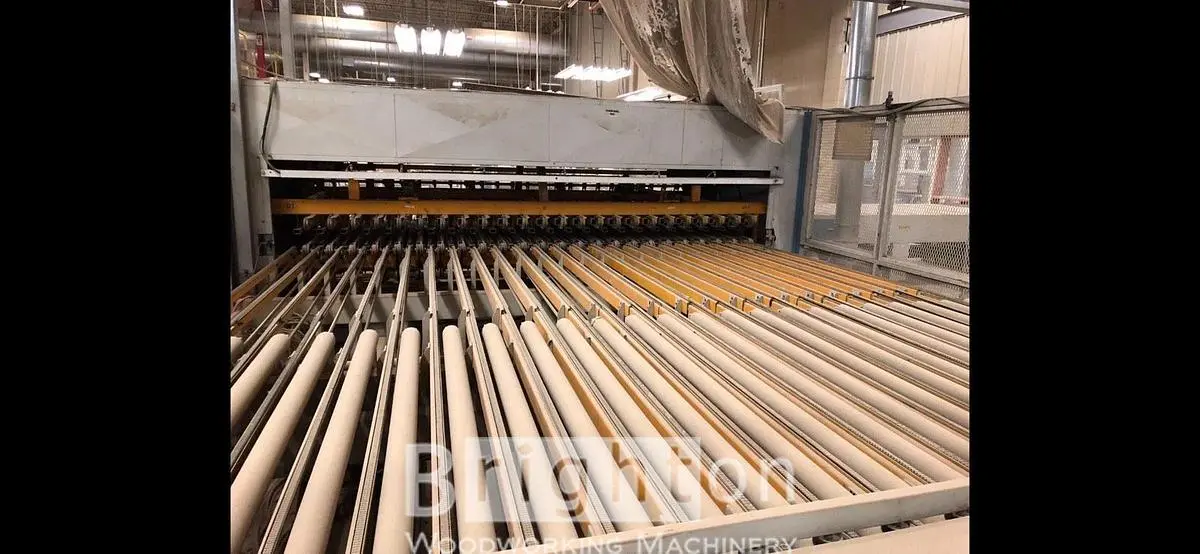

USED CEFLA PANEL AND DOOR FLIPPER

CEFLA PANEL AND DOOR FLIPPER
Why your shop needs the Cefla Pnel and Door Flipper.
Double-Sided Productivity: Eliminate the need for manual handling between coats. This unit automatically turns panels or doors , allowing your line to process both sides in a single pass for multiple-coat applications.
Versatile Integration: Designed as a combination "Transfer" and "Turn Over" unit, it fits seamlessly into existing flatline spray systems or sanding lines.
Precision Handling: Uses pneumatic clamping to secure pieces without damaging the wet or freshly cured surface, maintaining the high quality standards.

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information
Click for shipping information.
Click for electrical information.
Working Length: 3500 mm

Working width: 1450mm

Distance betweem inlet and outlet axis: 3660

Spacing of belts and hold downs: 140mm

Panel thickness: 5/70 mm

Minimum work table: 895mm

Compressed air consumption: 30 Ni/per cycle {6bar}

Pwer requirements 5.5 KW.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.

Quality: Very Good
Electrics: V / Ph / 60 Hz
