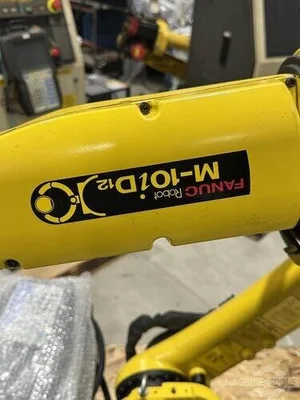

This used FANUC M-10iD/12 (2022) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller and 6-axis configuration.

1- FANUC M-10iD/12 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER,

TEACH PENDANT, AND CABLES.

SERIAL NUMBER: F798267

DATE OF MFG. 01/2022

CONTROL TYPE A05B-2682-B051 NO. E22112050

ARM TYPE A05B-1227-B222 NO. R22220105

STK#105450

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes:.............6

Payload:........12 kg

Reach:.......1441 mm

Repeatability:± 0.02 mm

Robot Mass: 145 kg

Structure: .....Articulated

Mounting:.....Floor, Inverted, Angle

Robot Motion Speed:

J1...... 260°/s (3.4 rad/s)

J2...... 240°/s (3.05 rad/s)

J3...... 260°/s (3.14 rad/s)

J4...... 430°/s (6.98 rad/s)

J5...... 450°/s (6.98 rad/s)

J6...... 720°/s (10.47 rad/s)

Robot Motion Range:

J1...... 340° (Optional: 370°)

J2...... 235°

J3...... 455°

J4...... 380°

J5...... 360°

J6...... 900°

Robot Applications:

Assembly

Load/Transfer

Dispensing

Material Removal

Material Handling

Pick/Pack/Removal/Palletizing

EQUIPPED WITH:

FANUC MECHANICAL UNIT

FANUC R-30iB PLUS CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC ROBOT COLOR TEACH PENDANT

FANUC CAMERA CONNECTIONS

FANCU ETHERNET THROUGH THE ARM

PER THE OEM:

Fast and compact palletizing

With its slim design and small footprint, this model saves precious floor space and is ideally suited to compact cells. And thanks to its speed and 5th axis, it makes a great choice for many applications requiring high rates of throughput and maximum reliability.

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
