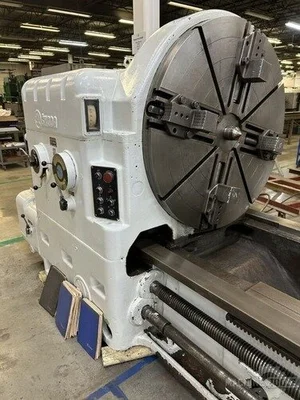

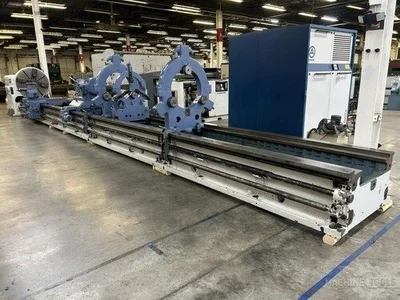

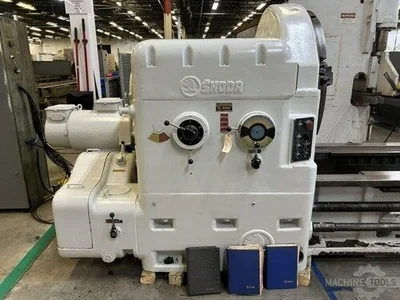

USED SKODA SRM 125/12-75

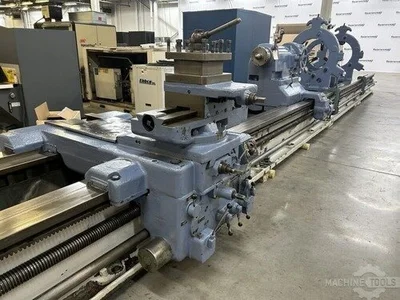

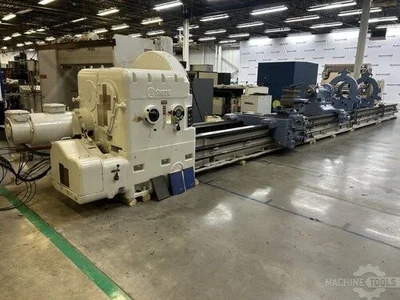

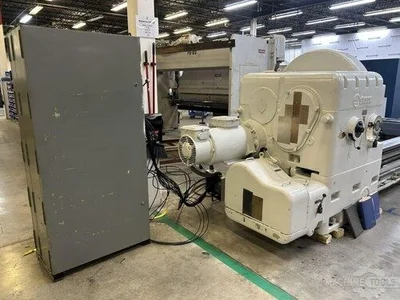

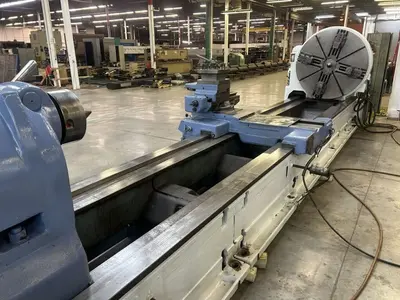

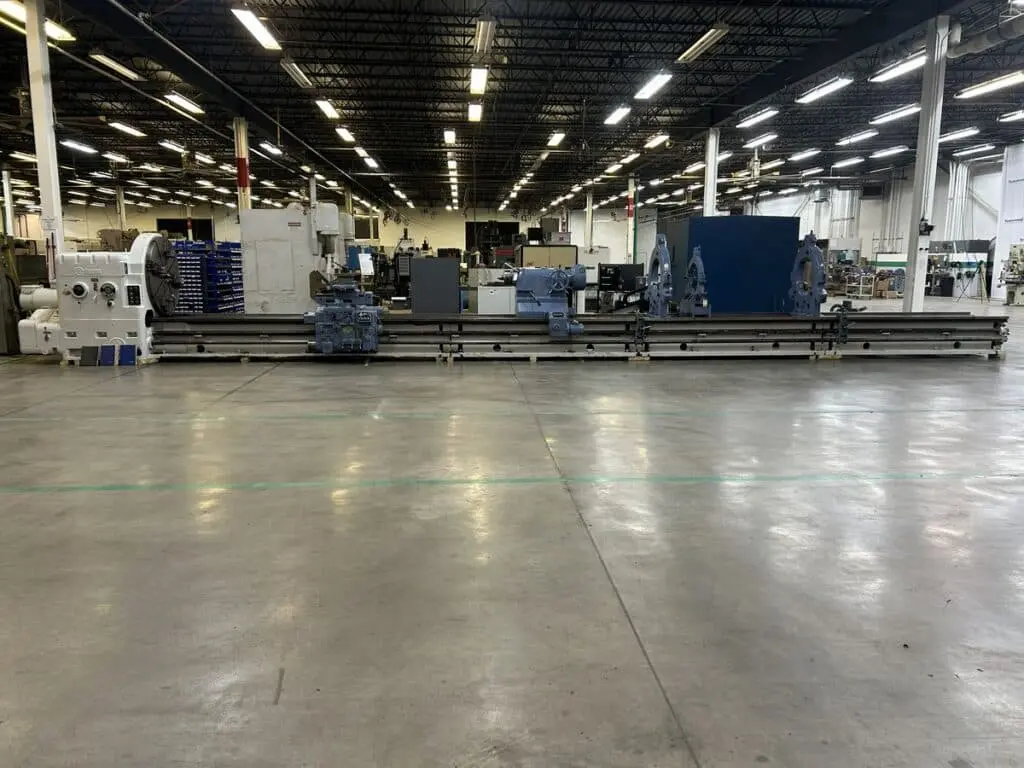

Skoda SRM 125/12-75 49" x 480" Heavy Duty Engine Lathe, 40' Turning Length

General Info

Stock #: 180250032
Location: Decatur, GA
Brand: Skoda
Model: SRM 125/12-75

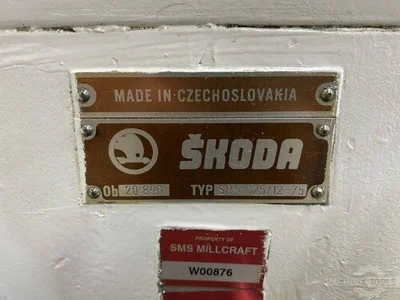

Serial #: 20 896
Approx. Shipping Weight: 55,000 Lbs.
Approx. Shipping Dimensions: 53' L x 8' W x 7' H

Specifications

Swing Over Bed: 49"
Swing Over Carriage: 35"
Distance Between Centers(Approximate): 480"

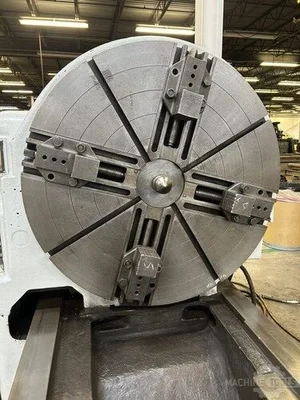

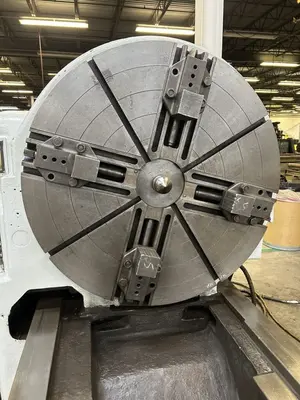

Maximum Torque of Face plate: 22,780 ft.-lbs.
Maximum Weight of Workpiece Between Centers(Without Rests): 30,850 Lbs.
Height of Bed: 24-1/2"
Width of Bed: 43-1/4"

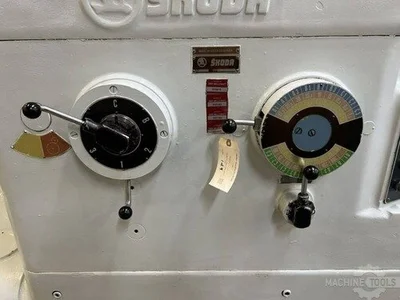

Spindle Speeds 1st Range: 1.8 to 90 1.4 to 71 RPM
Spindle Speeds 2nd Range: 8 to 400 6,3 to 315 RPM

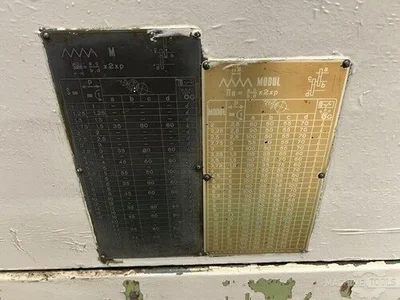

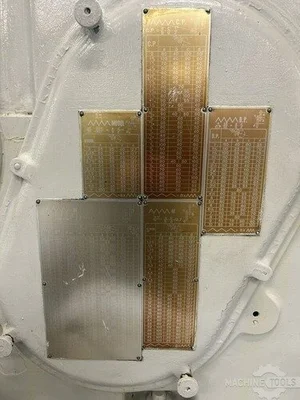

Metric Threads(28): 1 to 50
Module Threads(28): 2 to 20
Whitworth Threads: 24 to 1/2 TPI
Main Motor: 50 HP
Motor For Rapid Traverse of Carriage: 1.75 HP

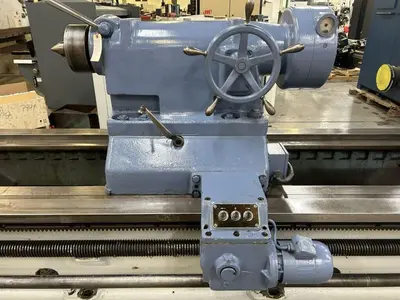

Motor For Travel of Tailstock: 1.5 HP
Overall Bed Length: 542"
Electrical: 480V/3PH

Equipped With

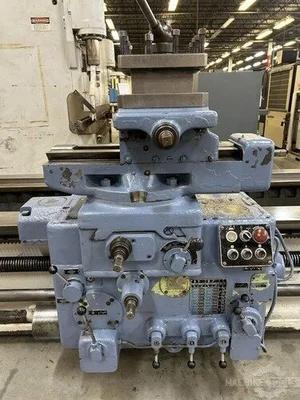

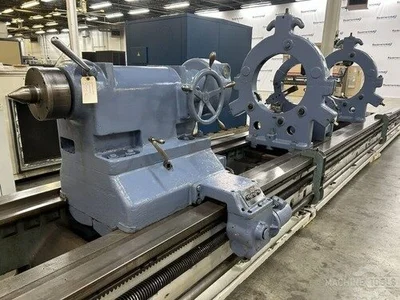

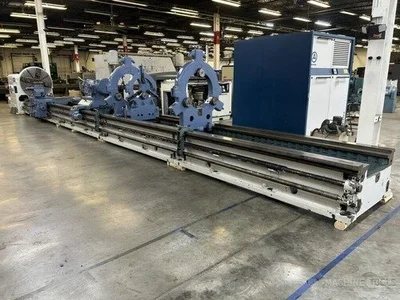

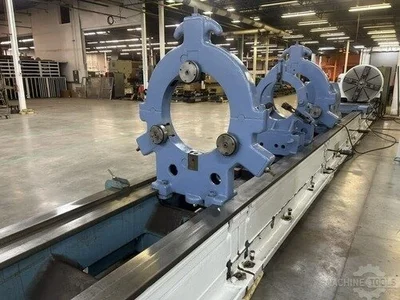

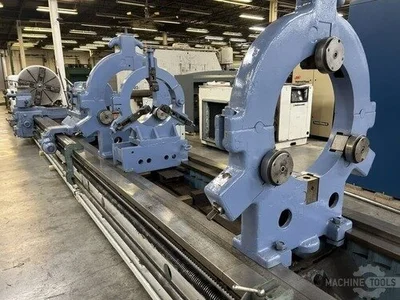

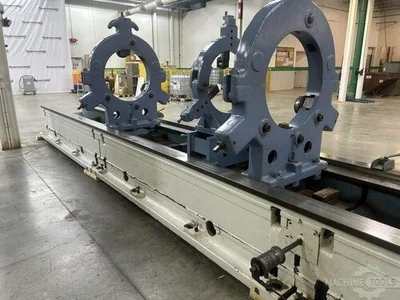

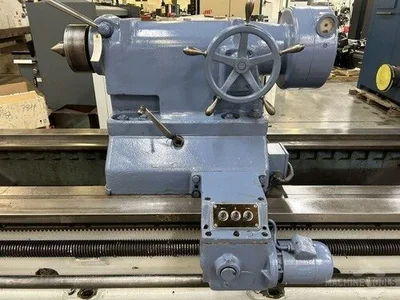

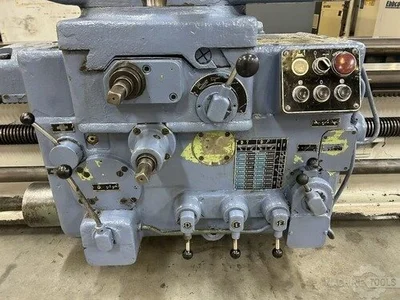

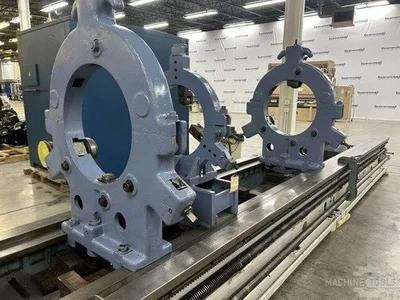

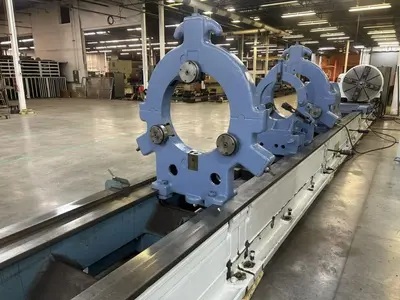

(3) Steady Rest, Powered Tailstock, Powered Carriage Feed, Manuals/documentation

Additional Info
The Skoda Engine Lathe can be demoed upon request.
