USED CARLTON 0A

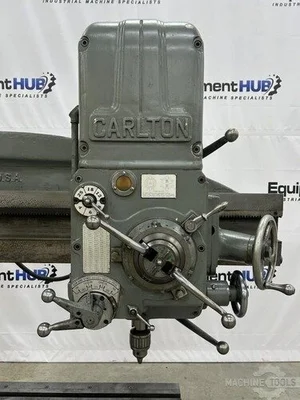

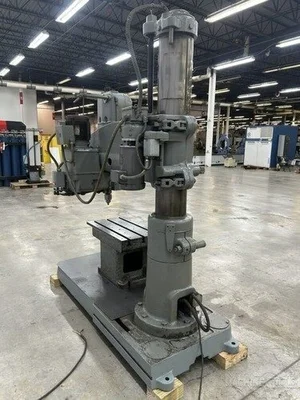

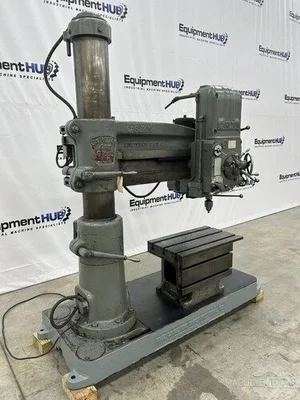

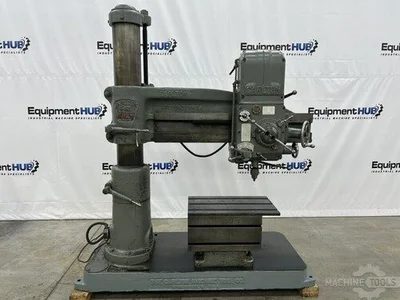

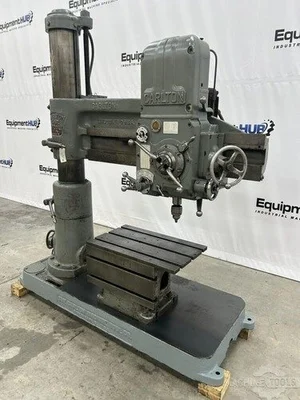

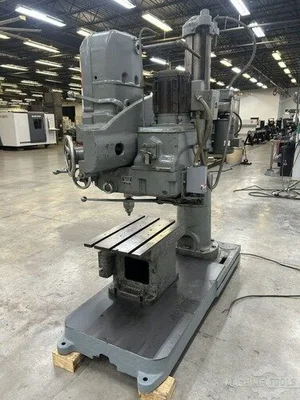

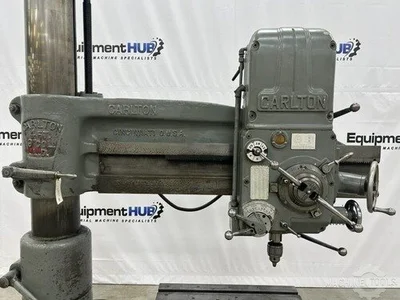

Carlton 0A 4' x 9" Radial Arm Drill

General Info

Stock #: 180260012
Location: Decatur, GA
Brand: Carlton
Model: 0A
Serial #: 0A 231
Approx. Shipping Weight: 6,000 Lbs.
Approx. Shipping Dimensions: 7' L x 4' W x 8' H
Skidding Fee: Skidding Unavailable

Specifications

Arm Length: 4'

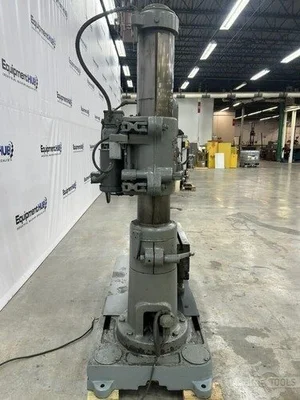

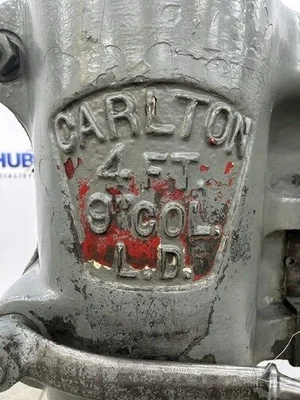

Column Diameter: 9"

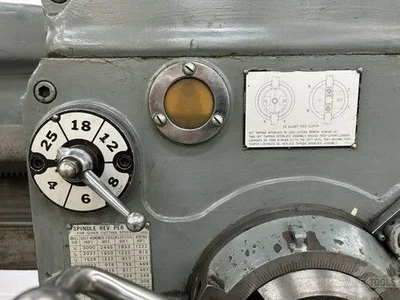

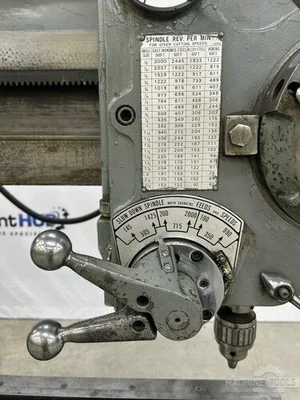

Spindle Speeds (12): 145 to 2000 RPM
Feeds (6): .004 to .025 IPR

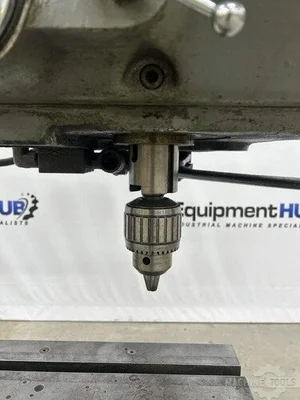

Spindle Quill Travel: 12"

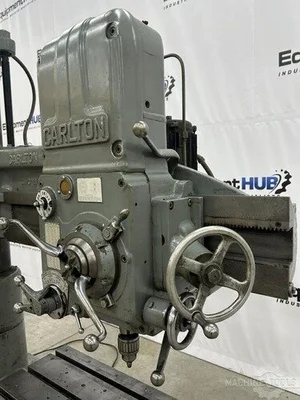

Travel of Head on Arm: 39"
Travel of Arm on Column: 28-1/2"

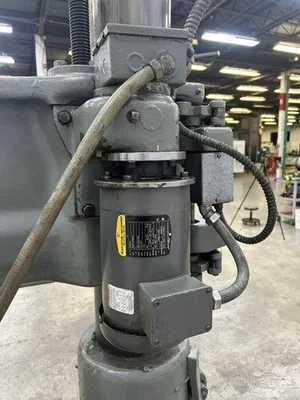

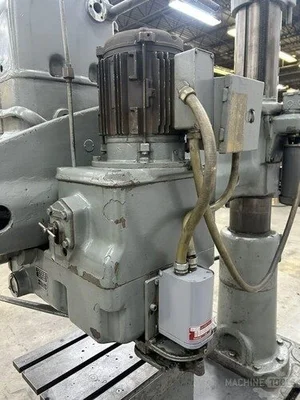

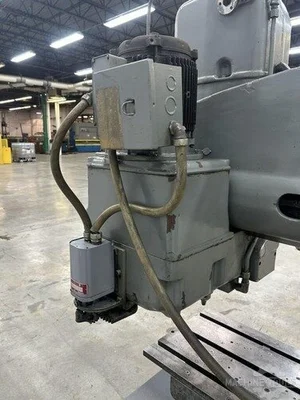

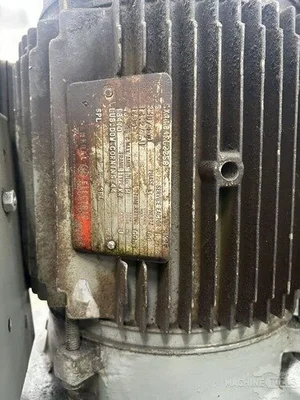

Spindle Motor HP: 5
Electrical: 230V/3PH

Equipped With

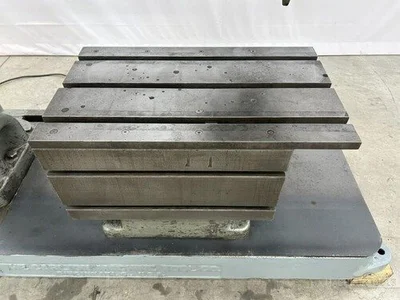

Power Elevation, Manual Head Clamp Lock/Release Lever, Manual Column Lock/Release Lever, Box Table

Additional Info
The Carlton Radial Arm Drill can be demoed upon request. Check out the video on the listing to see it in operation. ***Spindle speeds 100/350/990 don't work***
