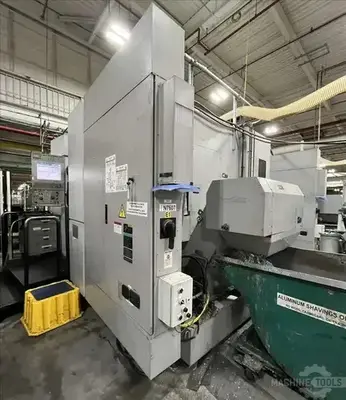

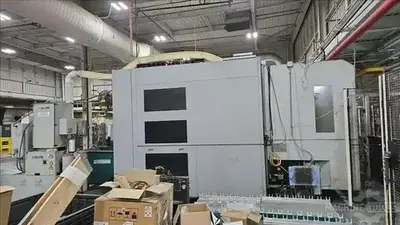

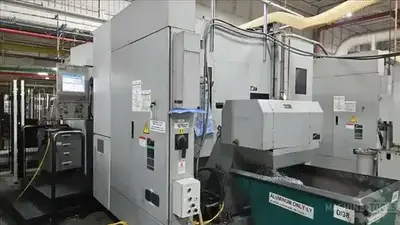

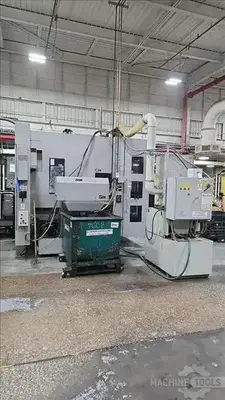

Mori Seiki NH6300 Twin Pallet CNC Horizontal Machining Center
| X | 41.3" | 1,049 mm |
| Y | 35.4" | 899.16 mm |
| Z | 38.6" | 980.44 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Pallet-W | 24.8" | 629.92 mm |
| Pallet-L | 24.8" | 629.92 mm |
Pallet Size: 24.8" x 24.8"
Number of Pallets: 2
Pallet Weight Capacity: 3,300 lb.
Max. Workpiece Swing Diameter: 41.3"
Max. Workpiece Height: 51.1"
X-Axis Travel: 41.3"
Y-Axis Travel: 35.4"
Z-Axis Travel: 38.6"
B-Axis Index: 0.001°
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
Tool Changer: 60-ATC

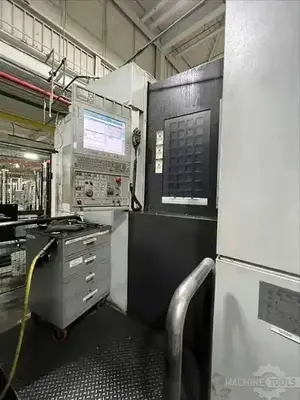

Mori Seiki MSX-701 IV Fanuc Based Control
Thru Flange Coolant

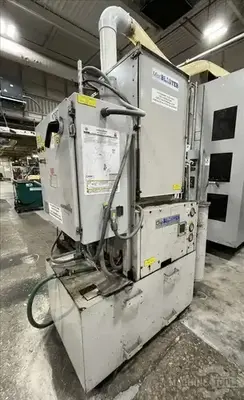

Chip Blaster High Pressure Unit
Full 4th Axis B-Axis
