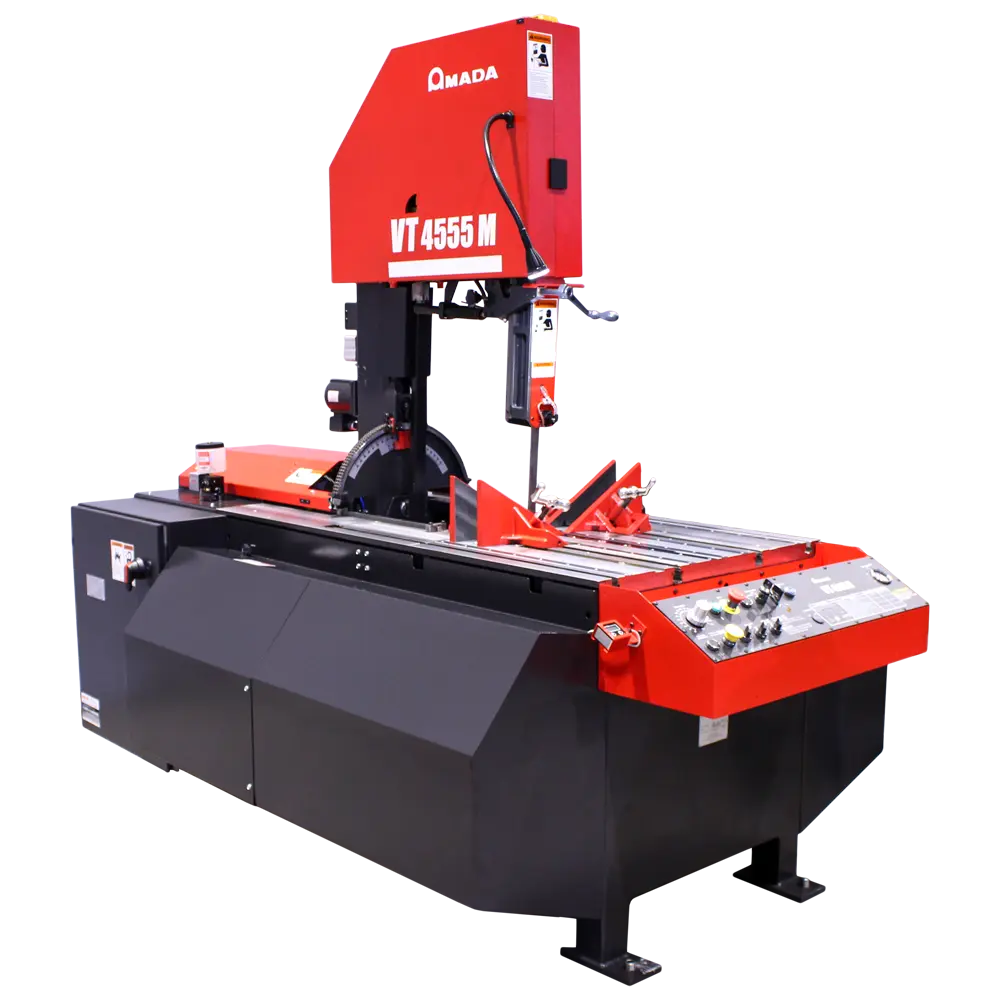

NEW AMADA VT-4555M
Overview
The Worlds Most Popular Vertical Tilt-Frame
• 5 H.P.
• 1-1/4″ Blade
• Marvel Series (8-Mark-III)
• All-Mechanical Design
• Cast Iron Construction
• Metal Cutting
• Large Adaptable Work Table
• Semi-Automatic
FEATURES
• Front Mounted Speed Control
- Allows blade speed to be adjusted from the operator’s control station.
• T-Slotted Work Table
- Work area 24.25” x 33” (616 mm x 838 mm); table height 34.5” (876 mm); four machined T-slots accept .625” (15.5 mm) T-Bolts on our VT4555. Work area 24.25” x 33” (616 mm x 838 mm); Table height 38” (965 mm); Two machined T-slots on our VT4555M.
• 3° Canted Column
- Standard 3° forward approach angle for increased efficiency in cutting structural materials.
• Miter Cutting
- Column and blade tilt up to 60° right and left. Optional Powered Tilt is available.
• Quick Action Vice
- Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of the blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide.
•Automatic Stops
- Adjustable stops can be pre-set to stop advance and return of blade, and also to stop the motor at any location within the 18” (457 mm) travel of the blade.
• Flushing Hose
- Washes chips from hard to get at places reducing clean-up time.
• Power Chip Brush
- Together with blade wipers and flood coolant deep blade teeth free of chips.
• Eagle Beak VTR Blade
- Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase.
Specs
Cutting Capacity (Standard Column with 3° Forward Cant):
Round (Diameter)
at 0° 17.5″ 445 mm
at 45° Right 14.5″ 368 mm
at 45° Left 13.0″ 330 mm
at 60° Right 9.7″ 246 mm
at 60° Left 7.3″ 185 mm
Rectangle (W x H)
at 0° 17.5″ 445 x 558 mm
at 45° Right 17.5″ x 14.5″ 445 x 368 mm
Rectangle at 45° Left 17.5″ x 13.0″ 445 x 330 mm
at 60° Right 17.5″ x 9.7″ 445 x 246 mm
at 60° Left 17.5″ x 7.3″ 445 x 185 mm
Maximum Vise Opening
at 45° Left 17.5″ 445 mm
at 60° Left 17.5″ 445 mm
Work Load Capacity 4,996 lbs 2,267 kg
Saw Blade:
Dimensions (L x T x W) 15’4″ x 0.042″ x 1-1/4″ 4674 x 1.1 x 34 mm
Blade Speed 50-450 ft./min by Inverter 15-137 m/min by Inverter
Tension Control Pneumatic (tightening by air ratchet)
Blade Control:
Cutting Control Clutch Power Feed
Blade Feed Force 0 to 250 lbs 0 to 1112 N
Motors:
Saw Blade 5 HP 3.7 kW
Sawhead Fast Feed 1/4 HP 0.2 kW
Cutting Fluid Pump 1/8 HP 0.1 kW
Tilt Gear 1/15 HP 0.05 kW
Power Requirement
Power Supply Voltage AC230V±10% or AC460V±10%, 3 PH, 60 Hz Voltage must be specified when ordering
Power Requirement
Cutting Fluid:
Tank Capacity 19.8 gal 75 liters
Pump Type Electric
Air Supply:
Air Supply 87-145 psi 0.6-1.0 MPa
Air Set Pressure 80 psi 0.55 MPa
Chip Disposal Manual
Feed Table:
Feed Mechanism NA
Feed Stroke NA
Machine Dimensions (W x L x H) 94.7″ x 99.2″ x 90.8″ 2404 x 2518 x 2305 mm
Table Height (Above Floor) 38.0″ 965 mm
Machine Weight 2,867 lbs 1,300 kg
