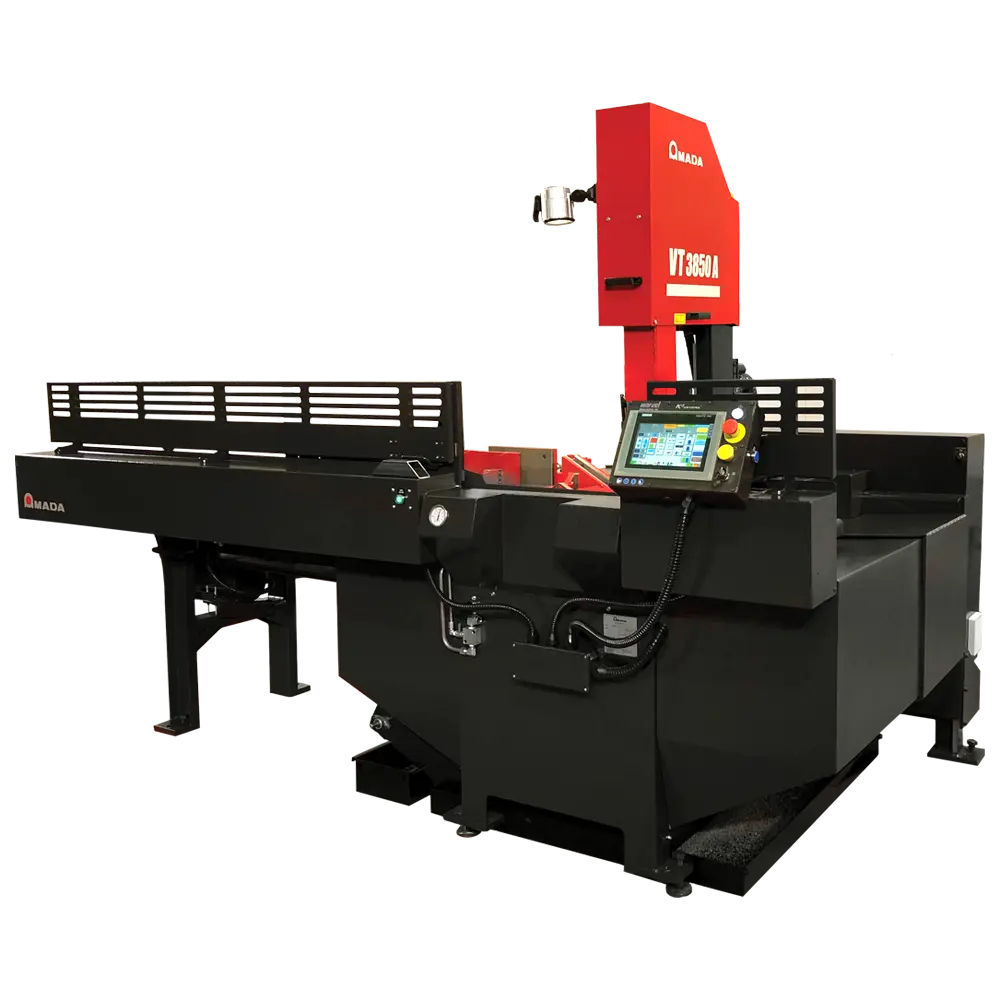

NEW AMADA VT3850A
Overview
Direct Force Sensing Electric Ball Screw Feed
• 5 H.P.
• 1-1/4″ Blade
• Marvel Series (380APC)
• Automatic Indexing
• ± 60° Miter
• Hydraulic
• Metal Cutting
• High-Speed Bandsaw
• Programmable Control
FEATURES
• Tilting Column
- For miter cutting up to 60° left and right of vertical. Variable speed, inverter-driven, electronic tilt- Includes encoder feedback and touch screen display & control, for precision miter positioning. Electrically powered with encoder feedback and PC3 Controller.
• 0° – 3° Canted Column
- Adjustable 0 or 3-degree forward approach angle, for notching, or increased efficiency in the cutting of structural materials. Capacity at 0° 15″ x 20″. Capacity at 3° 14.5″ x 20″.
• Jammed Blade Protection
- Automatically senses resistance as the column returns and stops to prevent blade damage.
• Vises
- Hydraulic 60° jaws are standard with Optional Variable Vise Pressure as well as square jaws.
• Automatic Bar Feed
- Design features a 48” stroke length with indexing speeds of up to 70 ft./min.
• PC3 Programmable Control®
- Provides a Programmable Logic Control Unit with a 9” color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.
Specs
Cutting Capacity (Standard Column with 3° Forward Cant):
Round (Diameter)
at 0° 14.5″ 368 mm
at 45° Right 13.5″ 343 mm
at 45° Left 12.75″ 324 mm
at 60° Right 8.75″ 222 mm
at 60° Left 7.75″ 197 mm
Rectangle (W x H)
at 0° 14.50″ x 20.00″ 368 x 508 mm
at 45° Right 14.50″ x 13.50″ 368 x 343 mm
at 45° Left 14.50″ x 12.75″ 368 x 324 mm
at 60° Right 14.50” x 8.75“ 368 x 222 mm
at 60° Left 14.50″ x 7.75″ 368 x 197 mm
Maximum Vise Opening 15.25″ 387 mm
Work Load Capacity 1,000 lbs 454 kg
Saw Blade:
Dimensions (L x T x W) 16′ x 0.042″ x 1-1/4″ 4877 x 1.1 x 34 mm
Blade Speed 60-400 ft./min by Inverter 18-122 m/min by Inverter
Tension Control Hydraulic
Blade Control:
Cutting Control Direct Force Sensing Electric Ball Screw with PC3 Programmable Control
Blade Feed Force 0 to 300 lbs 0 to 1334 N
Vise Operation:
Type Main Vise (Optional second vise is available to install)
Control Hydraulic, Half Stroking with 6.7″ High x 11.4″ Wide 60° Faceplates
Motors:
Saw Blade 5 HP 3.7 kW
Hydraulic Pump 2 HP 1.5 kW
Cutting Fluid Pump 1/8 HP 0.1 kW
Tilt Gear 1/15 HP 0.05 kW
Power Requirement:
Power Supply Voltage AC230V±10% or AC460V±10%, 3 PH, 60 Hz Voltage must be specified when ordering
Power Requirement
Cutting Fluid:
Tank Capacity 26.0 gal 98 liters
Pump Type Electric
Hydraulic:
Tank Capacity 14.0 gal 53 liters
Pressure Setting 725 psi 5.0 MPa
Chip Disposal Chip Conveyor
Standard Feed Vise:
Index Mechanism Shuttle Vise
Material Index VT3850A: Double Ball Screw by Electrically Driven VT3850S: AC Servo Motor with Double Ball Screw
Feed Stroke 48.0″ 1219 mm
Remnant Length 19″ plus length of parts 482 mm plus length of parts
Machine Dimensions (W x L x H) 158.3″ x 111.8″ x 93.7″ 4021 x 2839 x 2379 mm
Table Height (Above Floor) 40.0″ 1016 mm
Machine Weight 5,900 lbs 1,300 kg
