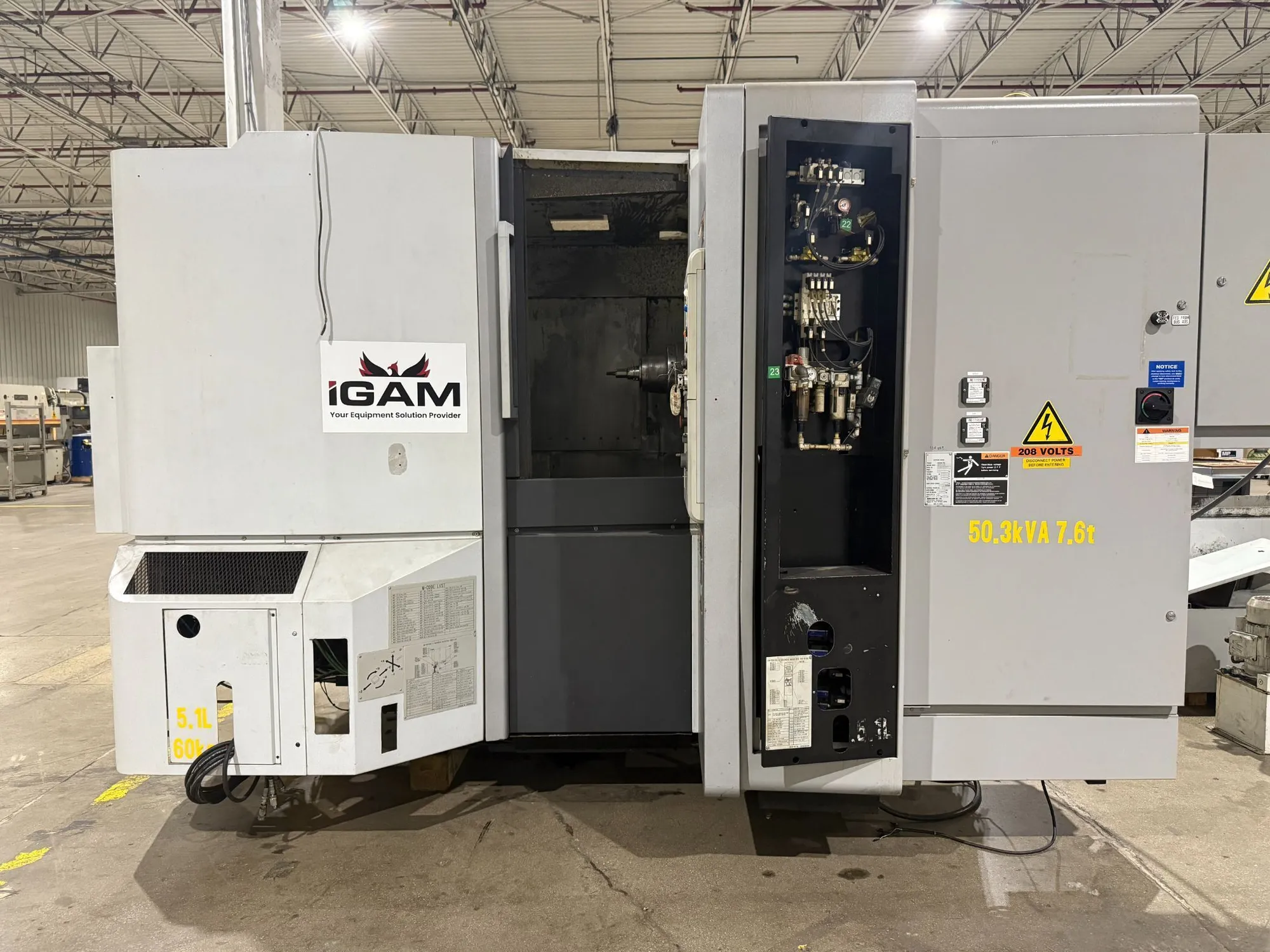

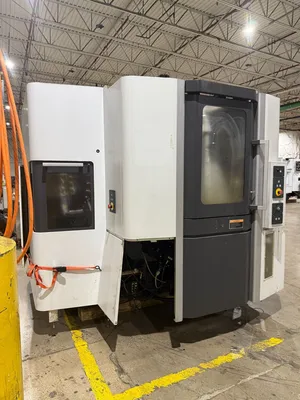

2012 MORI SEIKI NHX4000

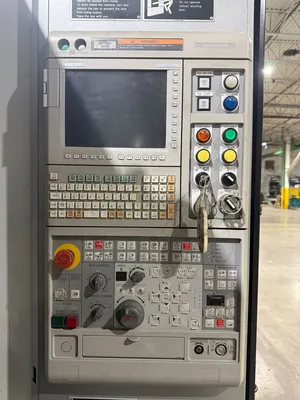

Mitsubishi 730 control,

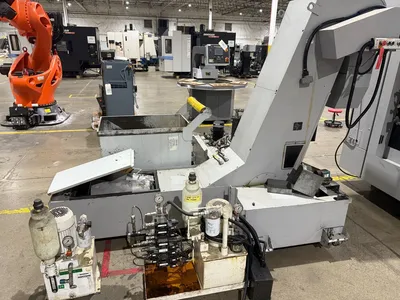

Coolant tank and pumps
chip conveyor
| CNC Control | Mitsubishi 730 | Mitsubishi 730 |
| # Axis | 4 | 4 |
| Pallet-L | 15.7" | 398.78 mm |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet Indexing (B-axis) | .001 | .001 |
| X-axis Travel | 22" | 558.8 mm |
| Y-axis Travel | 22" | 558.8 mm |
| Z-axis Travel | 26" | 660.4 mm |
| Rapid Traverse Rate (X/Y/Z) | 2362 | 2362 |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | HSK-A63 | HSK-A63 |
| Spindle Motor | 20 hp | 14.9 kW |
| # ATC | 40 | 40 |
| Dimensions | 165.9″ x 107.1″ x 98.9″ | 165.9″ x 107.1″ x 98.9″ |
| Weight | 16,720 lbs. | 16,720 lbs. |
SPINDLE CENTER TO TABLE TOP: 2.4″ – 24.4″
SPINDLE NOSE TO TABLE CENTER: 2.8″ – 28.7″
TOOL CHANGE TIME (T – T / C – C): 0.9 / 2.8 SECONDS
PALLET CHANGE TIME: 8 SECONDS
PALLET LOAD CAPACITY: 880 LBS.
MAX WORKPIECE DIA / HEIGHT: 24.8″ / 34.6″
MAX TOOL DIAMETER: 2.7″ / 6.6″
MAX TOOL LENGTH: 17.7″
MAX TOOL WEIGHT: 17.6 LBS.
TOOLING SHOWN, CHIPBLASTER, COOLANT FILTRATION SYSTEM, CHIP CONVEYOR
