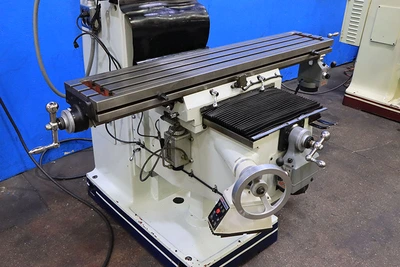

USED 2000 MSC - Vectrax GS-20V

50" Table 5HP Spindle MSC - Vectrax GS-20V VERTICAL MILL, Vari-Speed, R-8, 3 Servo Feeds, Box Ways,

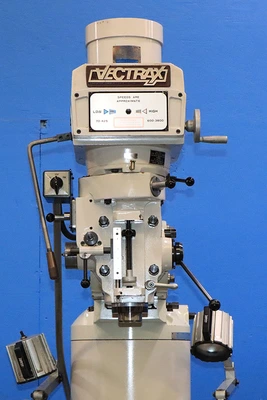

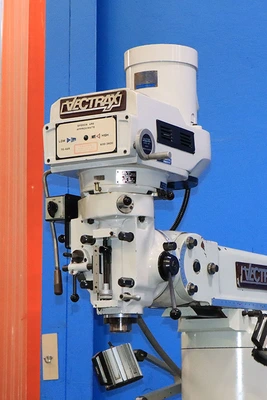

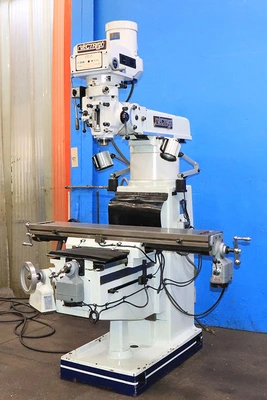

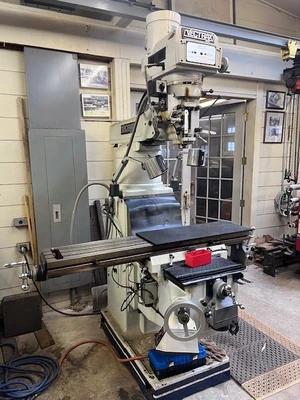

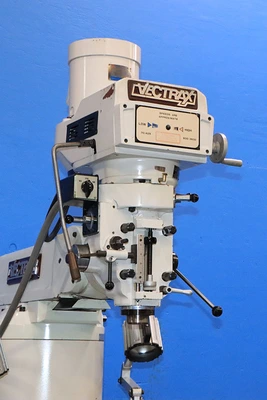

VECRAX VERTICAL MILLING MACHINE

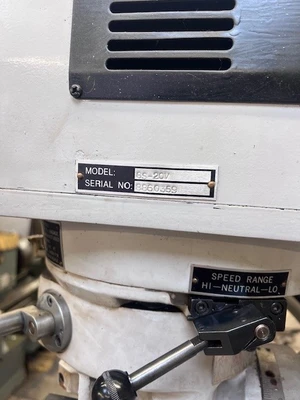

MODEL: GS-20V, S/N: 8860359

SPECIFICATIONS:

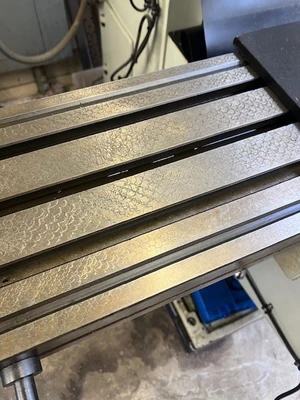

TABLE SIZE .............................. 10" X 54"

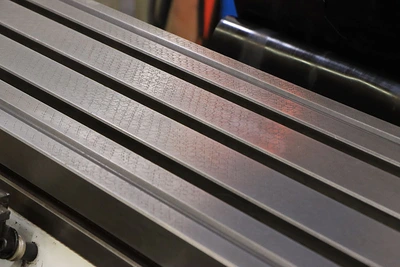

NUMBER OF T-SLOTS ....................... 3

LONGITUDINAL TABLE TRAVEL ............... 32"

CROSS TRAVEL ............................ 17.5"

QUILL TRAVEL ............................ 5"

KNEE TRAVEL ............................. 16"

RAM TRAVEL .............................. 18"

HEAD TILT, LEFT & RIGHT ................. 90 DEGREES

HEAD TILT, FRONT & REAR ................. 15 DEGREES

INFINITELY VARIABLE SPEED RANGE ......... 70 - 3,600 RPM

SPINDLE TAPER ........................... R-8

MAX COLLET CAPACITY ..................... 3/4"

QUILL TRAVEL ............................ 5"

QUILL FEEDS ........................ 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT ...................... 5,000 LBS

EQUIPPED WITH:

BALL SCREWS FOR X & Y AXES

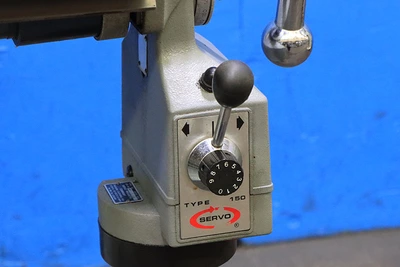

SERVO POWER FEED FOR LONGITUDINAL TRAVEL

SERVO POWER FEED FOR CROSS TRAVEL

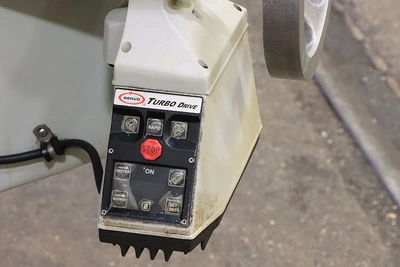

SERVO POWER FEED FOR VERTICAL KNEE TRAVEL

RISER BLOCK

TWO HALOGEN WORK LIGHTS

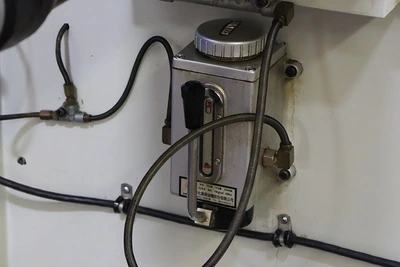

ONE SHOT LUBRICATION SYSTEM

5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
