USED 2010 Micro-Vu SPECTRA, NEW 2010, M1030432, 10X LENS
Overview
Description
14" Screen Micro-Vu SPECTRA, NEW 2010, M1030432, 10X LENS OPTICAL COMPARATOR, Q16 DRO w/PROG. GEO FUNCT.,
Specifications

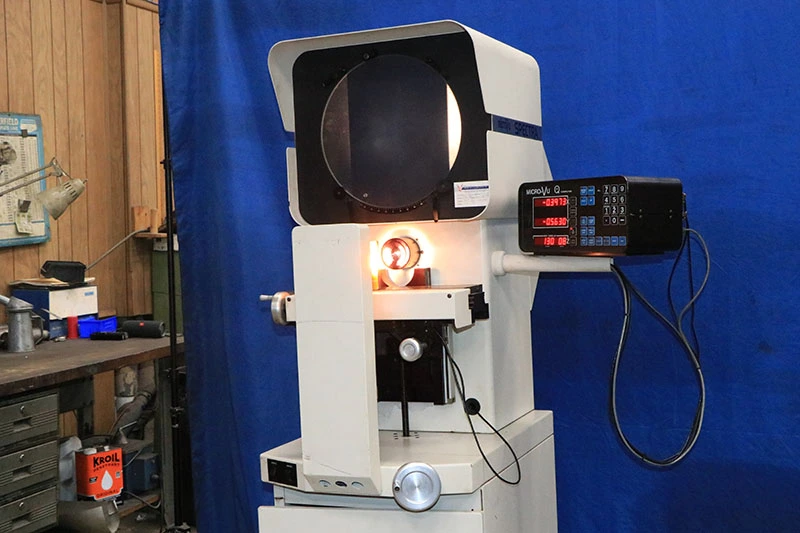

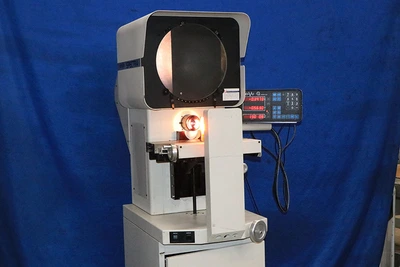

14" MICRO-VU "SPECTRA" SERIES
(MADE IN USA)
HORIZONTAL BENCH MODEL OPTICAL COMPARATOR
WITH FACTORY CABINET BASE,
AND MICRO-VU Q16 DRO
MODEL: M1030432 S/N: 7475 NEW: 2010

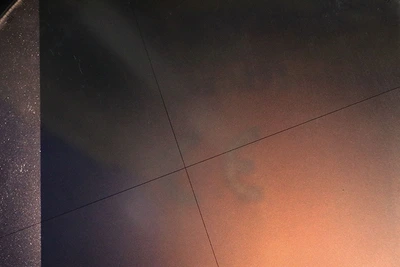

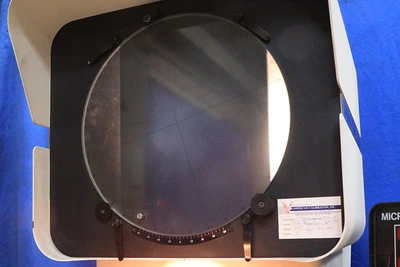

SCREEN DIAMETER .................... 14"
TABLE SIZE ......................... 18" X 5"
WEIGHT CAPACITY ON TABLE ........... 110 LBS.
HORIZONTAL TRAVEL .................. 12"
VERTICAL TRAVEL .................... 6"
FOCUS .............................. 2"
APPROX. DIMS. WITH CABINET BASE .... 38"L-R x 43"D x 71"H
CABINET BASE HEIGHT ................ 30" HIGH
APPROXIMATE WEIGHT ................. 325 LBS.
EQUIPPED WITH:

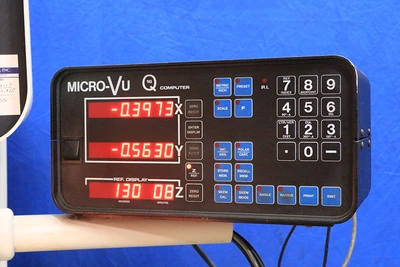

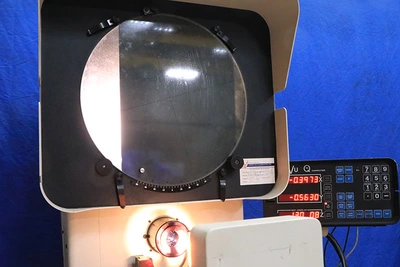

MICRO-VU Q-16 DIGITAL READOUT DISPLAY WITH
PROGRAMMABLE GEOMETRIC FUNCTIONS, AND
DIGITAL READOUT DISPLAY FOR THE
SCREEN PROTRATCTOR
"Download to your computer .
The Q16 can usually be connected
with a standard, straight-through serial cable.
Most Statistical Process Control (SPC) programs
accept information from the Q16. Use a program
like TalTech's "Software Wedge for Windows" to
get the data into most popular spreadsheets
and programs. You can also use a terminal program
like "HyperTerminal" or a DNC package
to read information".
THROUGH THE LENS SURFACE ILLUMINATION PRODUCES BIG IMAGES
COLLIMATED, HIGH INTENSITY PROFILE ILLUMINATION
ENSURES SHARP IMAGE
ERECT IMAGE
SURFACE & PROFILE ILLUMINATION

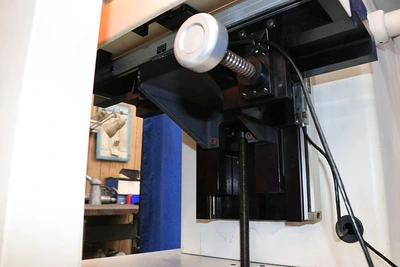

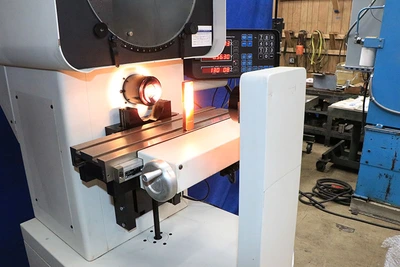

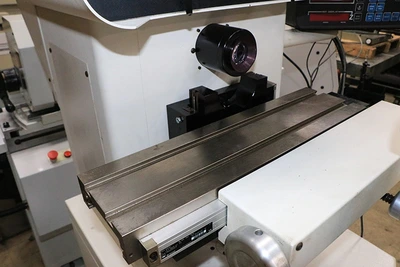

LARGE PRECISION STAGE, 12"L x 6"V x 3" TRAVELS
1 MINUTE ELECTRONIC PROTRACTOR

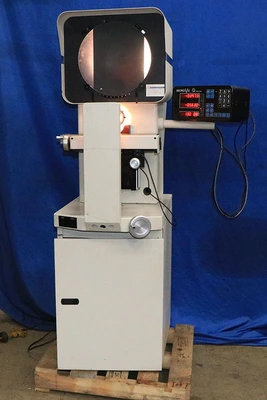

CABINET BASE
PRESENTLY HAS A 10X LENS WITH THE MACHINE.
20X AND 50X LENS AVAILABLE FOR PURCHASE WITH THIS MACHINE
@ $1000.00 PER LENS
ELECTRICAL - 1/60/110-120 VOLT AC
LINK TO VIDEO: https://youtu.be/lCY9pBy4Lt0?si=aKYKM37w8XqbiWrq
** "EXCEPTIONAL" CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, N.J. **
FOR MORE INFORMATION: Call Andy at 973-497-7600
