Used

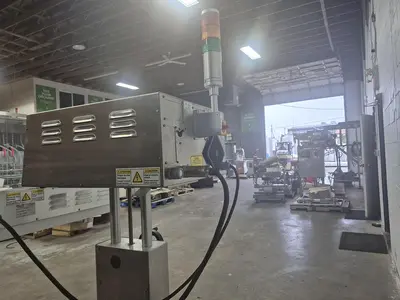

USED 2013 PILLAR TECHNOLOGIES U2P1042000000

British Columbia, Canada

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

2,379Listings|28Followers
Overview
Cappers Tamper Evident - Induction Sealers

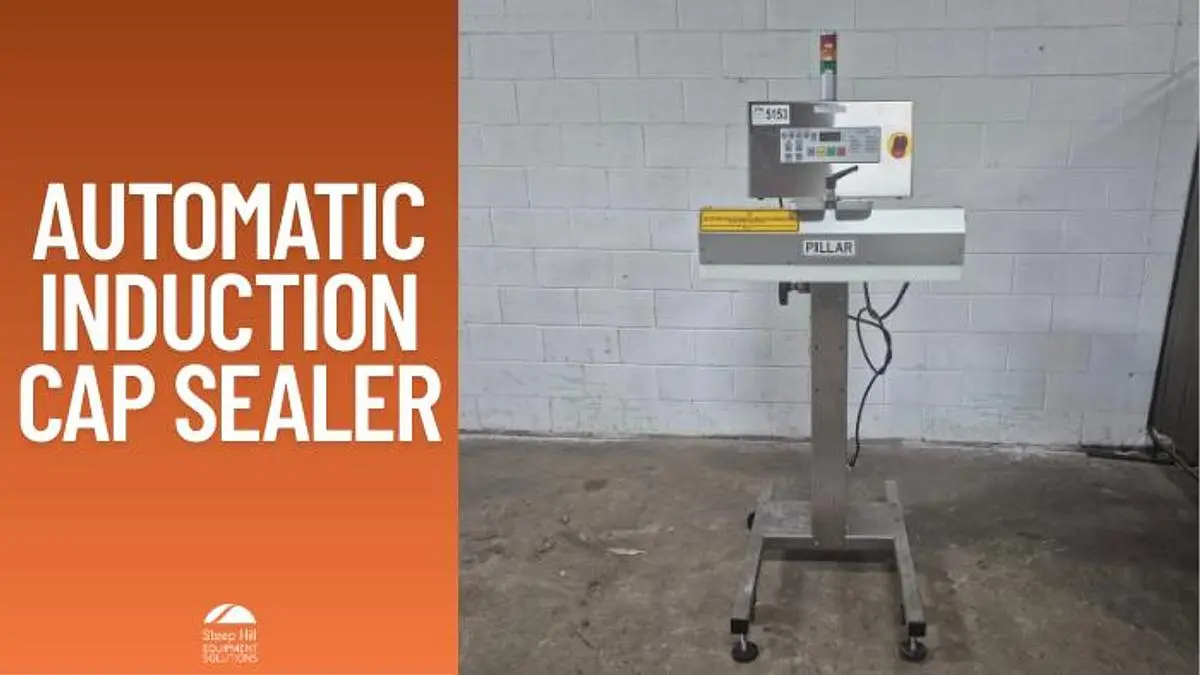

Pillar Technologies Unifoiler Automatic Induction Cap Sealer
Is used to create a hermetic, tamper-evident seal on the mouths of plastic and glass containers. It uses electromagnetic induction to heat a foil liner inside a cap, melting a polymer coating that bonds the foil to the container's lip.
Specs:

Power Output: 2000 Watts (2kW) using an efficient IGBT power supply
Electrical Requirements: 208/230 Volts, 1 Phase, 50/60 Hz
Sealing Head: Typically equipped with a universal flat sealing head (approx. 26" L x 5" W) capable of handling cap sizes from 15mm to 120mm
Performance: Capable of sealing at line speeds up to 120 feet per minute, depending on application and materials
Enclosure: Stainless steel, NEMA 4 rated (in some configurations), making it suitable for pharmaceutical and food-grade environments
Tamper Evidence: Provides a "safety seal" that, when broken or removed, leaves clear evidence of unauthorized access. This is a requirement for many over-the-counter (OTC) pharmaceutical products
Leak Prevention: Creates a liquid-tight barrier that prevents product from leaking during shipping and handling, which is especially important for chemicals and oils
Freshness & Shelf-Life Extension: Acts as an oxygen and moisture barrier to preserve the aroma and flavor of food products while preventing spoilage and contamination
Pilferage Protection: Discourages "sampling" of products in retail environments, as the seal cannot be easily replaced once removed
Industries Used In: Food & Beverage, Pharmaceuticals & Nutraceuticals, Chemicals & Automotive and Health & Beauty

Comes with a Pillar Technologies C2UU9AOO
The Pillar Technologies C2UU9AOO is an induction cap sealer, a specialized piece of industrial equipment used to create airtight, tamper-evident seals on containers. It is part of the manufacturer's C-Series line, which is designed for portability and versatility in packaging environments
Specs:

Typically part of the C-Series or Unifoiler families
Features may include microprocessor control and compatibility with universal sealing coils
Often designed for portability or integration into existing conveyor lines

Comes from a Aesus 6-Head Filling Line
https://www.steephillequipment.com/listings/8425749-used-aesus-6-head-filling-line-with-descrambler-labeler-filler-capper-induction-sealer-accumulation-table

Specs

Location Code: Showroom
Dimensions (l x w x h): 35" x 22.5" x 75"
