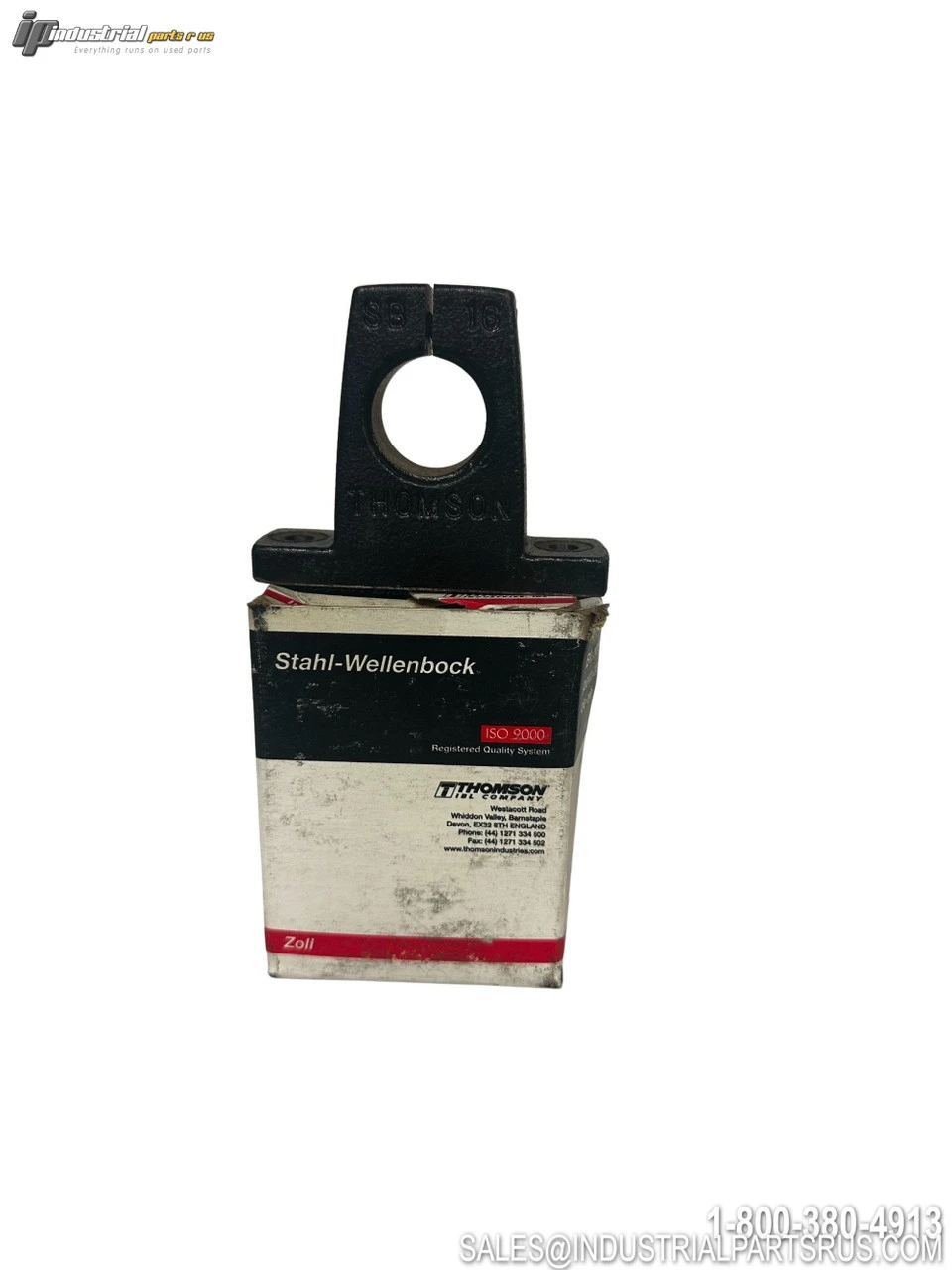

The Thomson SB16-1B is a shaft support block designed for end or intermittent support applications in linear motion systems. This malleable iron support block is engineered for use with Thomson 60 Case shafting and provides reliable shaft positioning without requiring bolts for maintenance.
Specification
Value
Brand
Thomson
Model/Part Number
SB16-1B
Product Type
Shaft Support Block
Series
SB (Standard Type)
Bore Diameter
1.000 inch
Overall Length
3.25 inches
Overall Width
1.00 inch
Overall Height
2.56 inches
Base to Shaft Center
1.50 inches
Bolt Center Distance
2.50 inches
Mounting Hole Diameter
0.28 inches
Material
Malleable Iron
Housing Style
2 Bolt Support Block
Compatible Shafting
Thomson 60 Case
Application
End/Intermittent Support
Weight
0.453 kg
We warranty all items for 30 days from date of purchase.
| Weight | 2.00 LBS | 2.00 LBS |
SKU: AI0775
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Thomson
Part Number: SB16-1B
Shelf: K-47
Model: SB16-1B
MPN: SB16-1B
Type: Linear Guide
