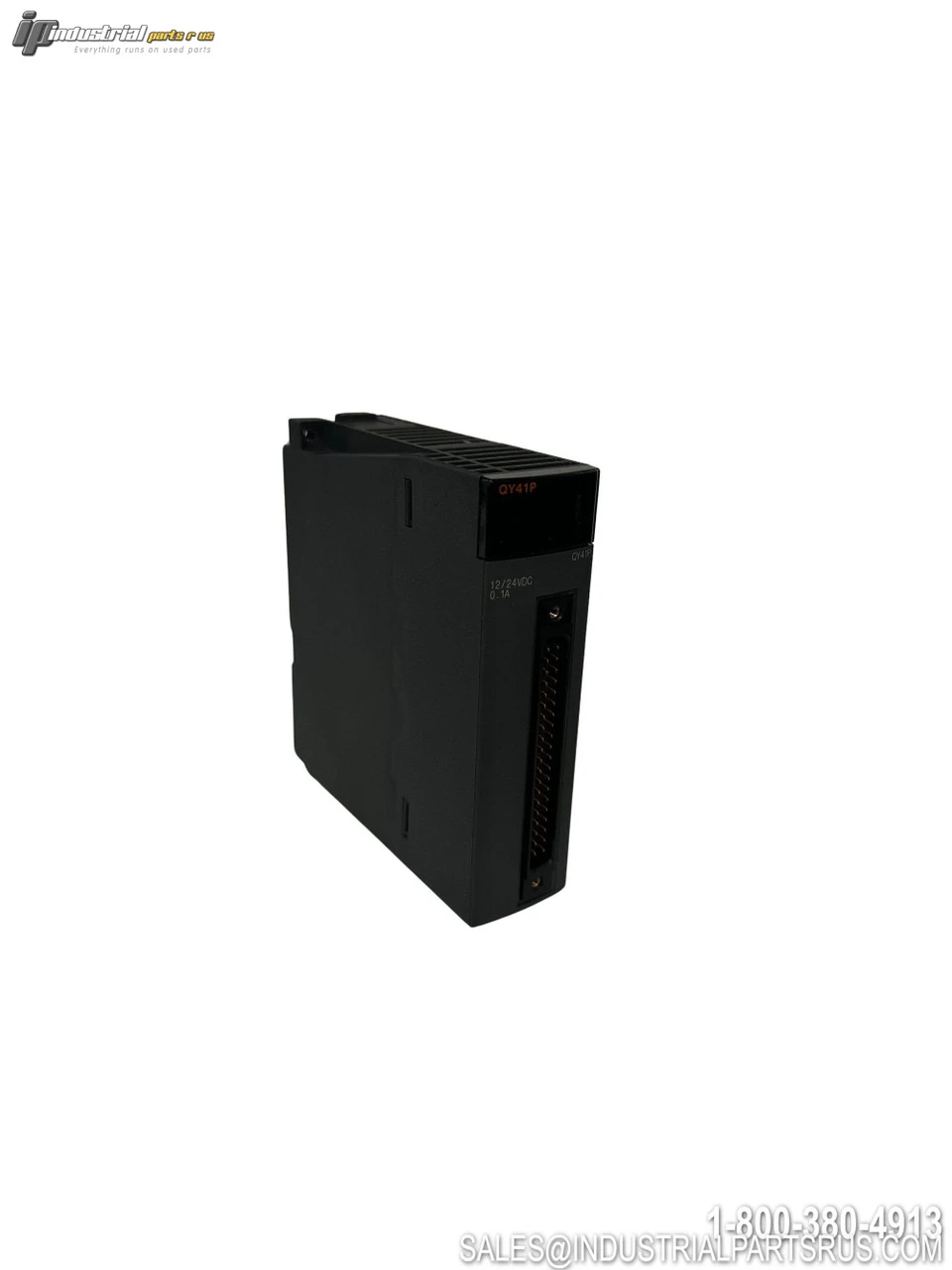

USED MITSUBISHI QY41P

The Mitsubishi QY41P is a 32-point transistor output module designed for the MELSEC-Q series PLC system. This sink-type output module provides reliable control for DC loads with voltage ratings from 12 to 24 VDC. Each output point can handle up to 0.1A with a common terminal rating of 2A, featuring fast 1ms response time and comprehensive protection including thermal and short circuit protection.
Specification
Value
Brand
Mitsubishi
Model/Part Number
QY41P
Product Type
Transistor Output Module
Series
MELSEC-Q
Output Points
32
Output Type
Sink Transistor (Drain Type)
Load Voltage
12-24VDC (+20/-15%)
Maximum Load Current
0.1A per point, 2A per common
Maximum Inrush Current
0.7A, 10ms or less
OFF Leakage Current
0.1mA or less
Response Time
1ms OFF to ON, 1ms ON to OFF
Isolation Method
Photocoupler
Points per Common
32
Common Terminals
A01, A02
Connection Type
40-pin connector
Protection
Thermal and short circuit protection
External Supply
12-24VDC (+20/-15%) 10mA
Current Consumption
105mA at 5VDC
Weight
0.15kg
Base Unit Slots
1
Certifications
UL, cUL, CE
We warranty all items for 30 days from date of purchase.

SKU: AI0907
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Sink Transistor (Drain Type)
Full Load Amps: 0.1A per point, 2A per common
Manufacturer: Mitsubishi
Part Number: QY41P
Controller Platform: MELSEC-Q
Shelf: E-6 Tub 1
Model: QY41P
MPN: QY41P
Type: PLC I/O Module
