USED 2004 AMERA-SEIKI A-3
Overview

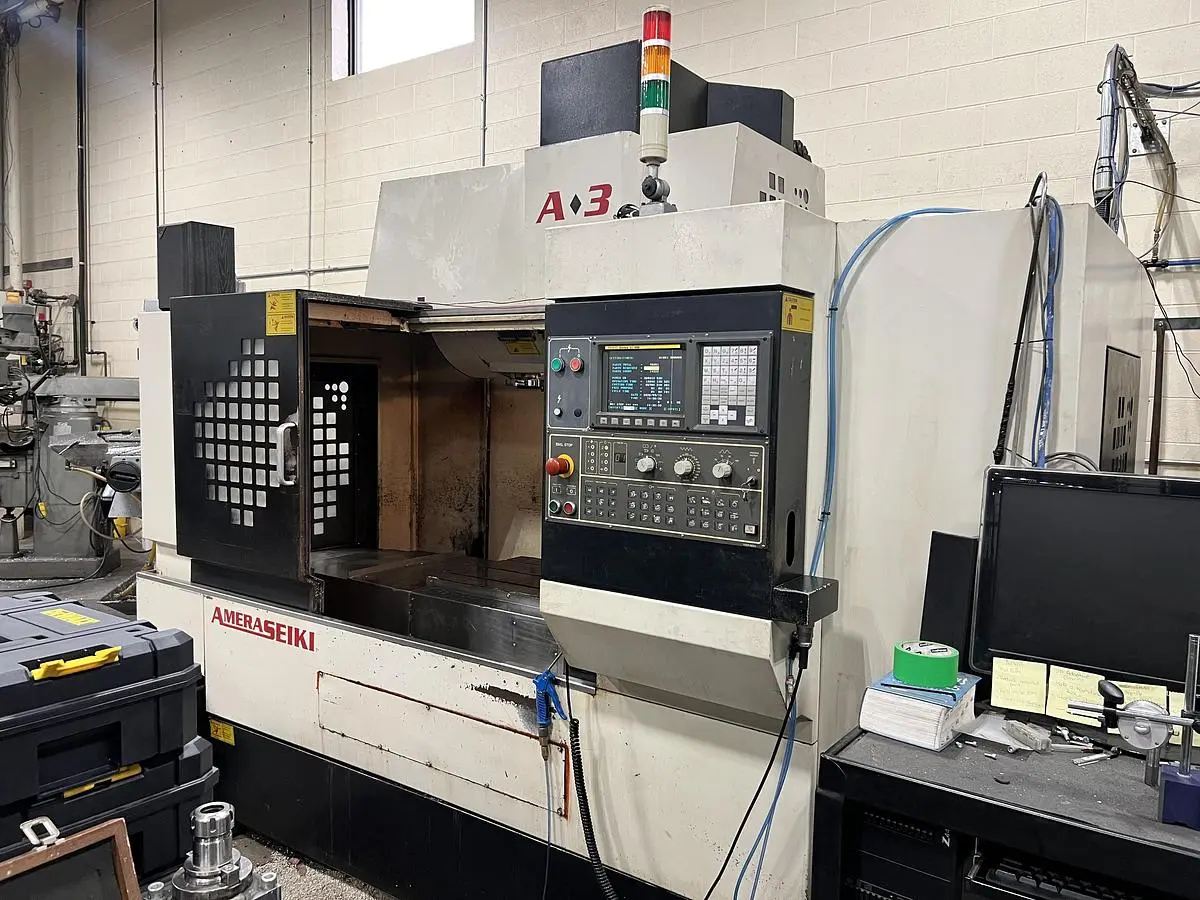

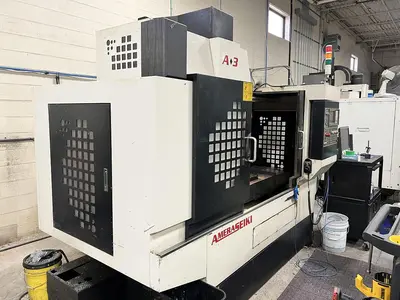

The Amera-Seiki A-3 is a versatile CNC vertical machining center designed for reliable production milling and precision machining. This 2004 machine features 44" (X), 22" (Y), and 22" (Z) travels with a 44" × 20" table and 1,540 lb load capacity. Equipped with an 8,000 RPM ISO/CAT40 spindle, 24-tool automatic tool changer, and rapid traverse rates up to 1,260 IPM, the A-3 delivers efficient machining performance for a wide range of parts. Controlled by Fanuc Series 0i-MB and complete with coolant system and chip auger, it is ideal for job shops and production environments.
Specs

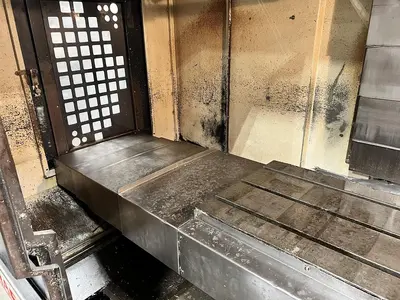

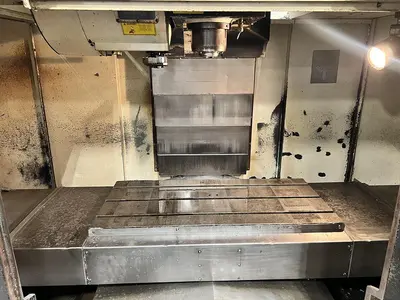

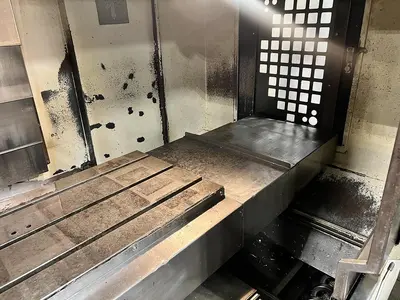

Table Size: 44" x 20"
Working Area: 44" x 22"
T-Slots: 0.7" x 6.3" x 3
Maximum Table Load: 1540 lb
X Axis Travel: 44"
Y Axis Travel: 22"
Z Axis Travel: 22"
Distance Spindle Nose to Table: 5.9" ~ 27.9"
Distance Spindle Center to Column: 24.6"
Spindle Taper: ISO 40
Spindle Diameter: 2.76"
Maximum Speed: 8000 RPM
Spindle Motor: 10 hp / 15 hp (30 min)
Tool Changer Capacity: 24
Max Tool Diameter: 3.15"
Max Tool Length: 9.84"
Max Tool Weight: 13.2 lb
Tool Change Time: 2.5 sec
Cutting Feed Rate: 472 in/min
Rapid Traverse Rate: 1260 in/min
Overall Dimensions: 121" x 87.3" x 102.2"
Gross Weight: 12,100 lb
Equipped With

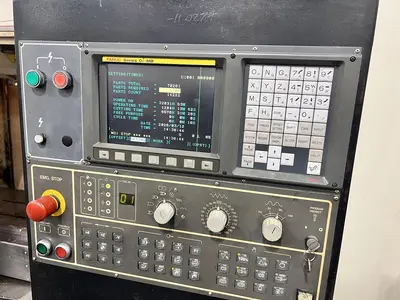

Fanuc Series 0i-MB CNC Control

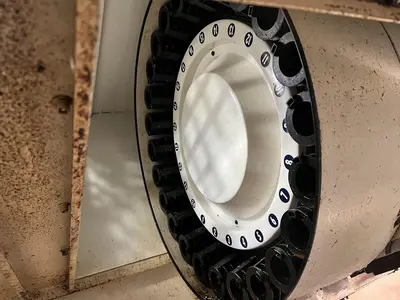

24 Position Automatic Tool Changer
ISO / CAT 40 Spindle
Coolant System

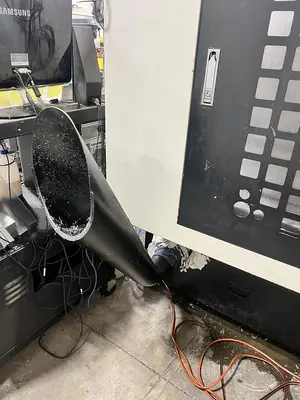

Chip Auger
