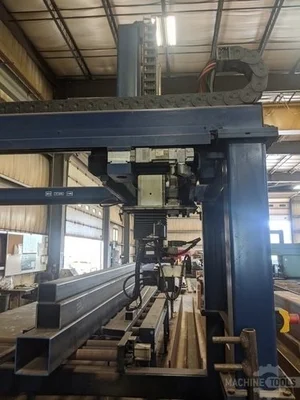

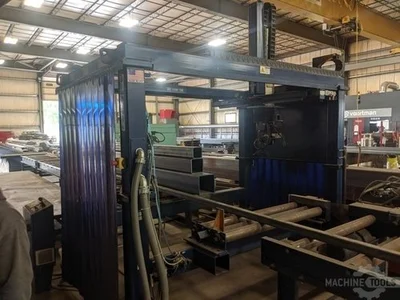

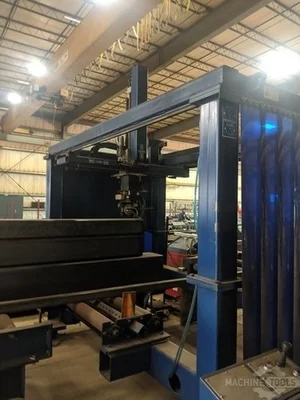

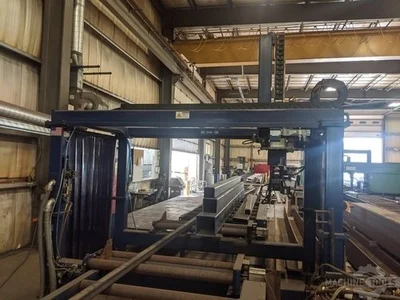

USED OCEAN LIBERATOR

Brand – OCEAN Model – LIBERATOR Type – Beam Coping Machines Year – 2015 Condition – Used – Excellent

Dimensions: Approx 124″(l) X 96″(w) X 132″(h)
Weight: 5,200 Lbs

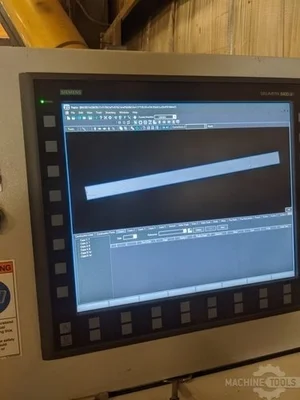

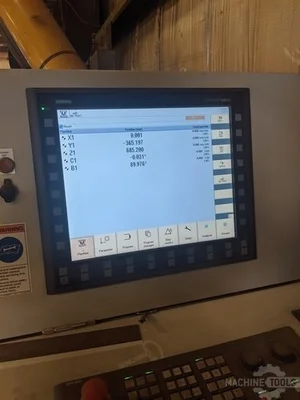

Control: CNC (Siemens 840Di CNC Controller)
Maximum Opening Width Between Material Clamps: 50″ Minimum Closed Width Between Material Clamps: 0.13″ Maximum Opening Height: 28″ Minimum Material Length: 127″ Maximum Beam Width: 48″ Minimum Beam Width: 3″ Maximum Flange Height: 24″ Maximum Flange Thickness: 6″ Minimum Plate Thickness: 0.25″ Maximum Plate Thickness: 6″ Minimum Angle Dimensions: 3″ x 3″ x 3/16″ Minimum Square Tube Dimensions: 2.5″ x 2.5″ x 3/16″

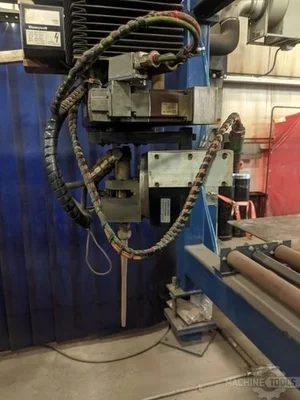

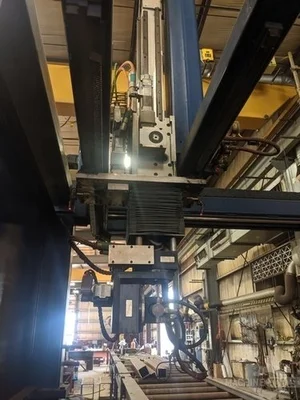

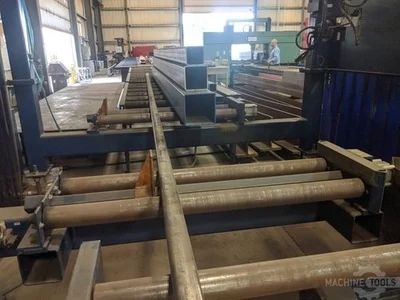

Siemens CNC Control Electric Motor Drive for A-Axis with Gearbox and Rack & Pinion Front and Rear Material Clamps Adjustable Material Supports Operator Safety Features (standard)
