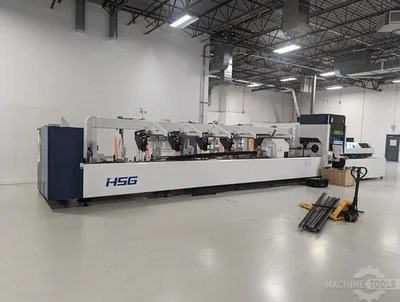

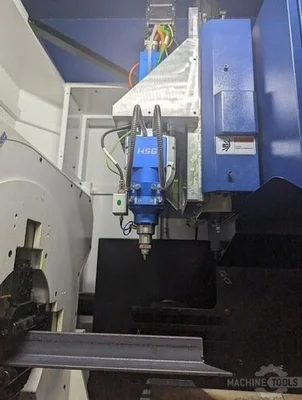

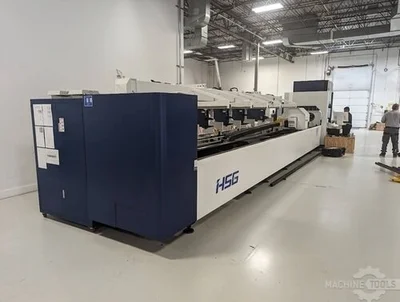

8-Meter (26.2′) In-Feed Tube Laser with 6kW Raycus Fiber Source featuring a 3D 5-Axis Cutting Head. The rotational axis offers ±45° movement with acceleration up to 3600°/s² and precision of ±6.1”. Equipped with an electromagnetic anti-bumping device, welded reduction gears, and high-accuracy speed reducers for smooth, reliable operation. HSG X-Bus CNC controls provide fast EtherCAT communication, laser energy precision, scan cutting, auto height following, tube splicing library, and intelligent nesting. Includes Au09-A unloading system with follow-up cutting and automatic flap height adjustment for varying pipe sizes. High-efficiency, environmentally friendly design with international-standard components and local service support.
Sheet-L: 314.96″
Wattage: 6000 w
IPM: 5500 cmpm
X: 314.96″
Dimensions: 14000*4700*2600mm (with loading rack)
Control: CNC (HSG-X Bus Control System)

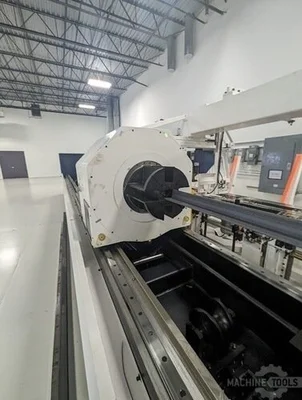

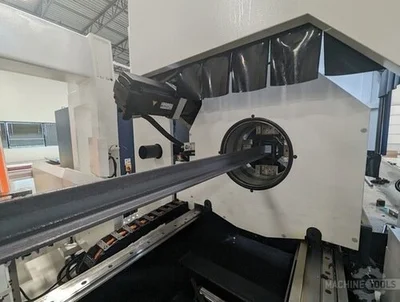

Max Tube Length: 314.96″ (≈26.25 ft) Max Single Tube Weight: 440 lbs Rotating Speed of Chucks: 120 r/min No-Load Speed: 140 m/min X/Y-Axis Positioning Accuracy: ±0.00118″ X/Y-Axis Repositioning Accuracy: ±0.00118″ Acceleration: 1.2 G Tailing Length: 8.66″ Cutting Capacity: Round Tube: 0.78″ – 10.74″ Square Tube: 0.78″ – 7.87″ Rectangular Tube (Diagonal): 10.74″ U & L Shapes (each side): 200 mm (customizable) H Shape (each side): 150 mm (customizable) Overall Dimensions: 41.01′ x 15.41′ x 8.5′

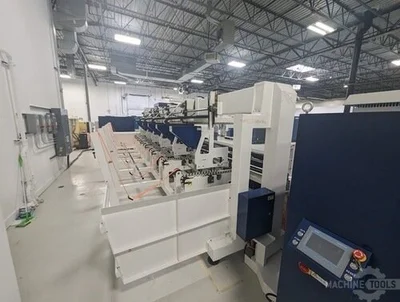

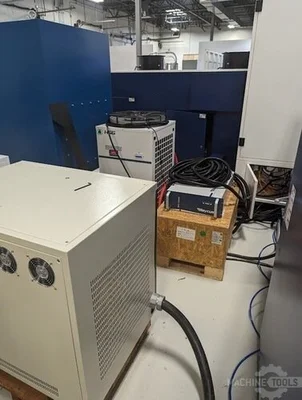

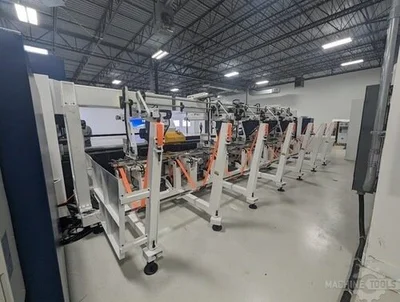

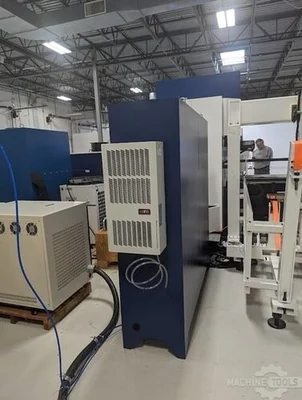

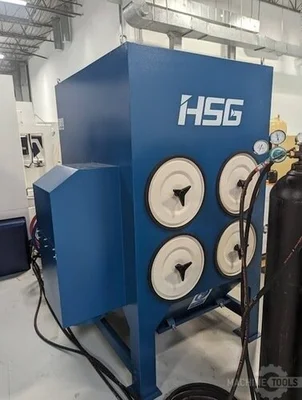

HSG-LA4 Laser Head Raycus 6,000 Watt Fiber Laser Source HSG X-Bus Control System HSG Mechanical Platform Bundle Loader 3m Auto Follow-Up Unloading Device Water Chiller Air-Conditioned Electrical Cabinet Voltage Transformer / Stabilizer Donaldson Dust Collector Safety Package Spare Clamping Jaws / Optics
