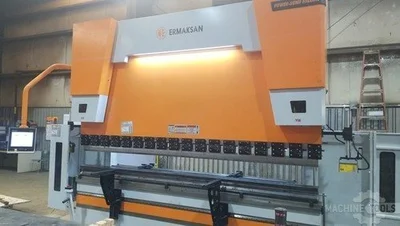

USED ERMAKSAN SPEED-BEND 4270-400

Brand – ERMAKSAN Model – SPEED-BEND 4270-400 Type – Press Brakes New – In Stock

Tonnage: 485.016 T
Type: HYD
Control: CNC (Delem 66 Touch 2D Programming/3D Graphical Visualization)
Model: ERMAK SPEED-BEND 4270-400 Capacity: 440 US Tons Bending Length: 14’ (168”) CNC Axes: 6 (Y1, Y2, X, R, Z1, Z2) Back Gauge Travel: X-Axis 31.5”, R-Axis 9.8” Crowning: CNC Motorized Wedge, Anti-Deflection Safety: LazerSafe PCSS Ram-Mounted Laser, Rear Photocell Guard, Side Guards Drive System: Mitsubishi MelServo JS Servo Motors & Drives Hydraulic System: Hoerbiger Control: Delem 66TOUCH, Profile T ‘Lite’ Offline Software Tooling: ERMAKSAN Promecam / Adapter / Special Top / RD17817 Operator Features: Double Foot Pedal, Front Sliding Support Arms Electrical: 230V or 460V, 60Hz, 3-Phase Machine Finish: RAL 7035 / RAL 9007 Documentation: English Labels & Manuals

Delem 66TOUCH 2D Programming with 3D Graphical Visualization Profile T ‘Lite’ Offline Software Included 6-Axis CNC: Y1, Y2, X, R, Z1, Z2 CNC Motorized Wedge Crowning, Anti-Deflection LazerSafe PCSS Ram-Mounted Laser Safety System Oil Coolant System Mitsubishi MelServo JS Servo Drives & Motors X-Axis Ballscrew: 31.5” R-Axis Ballscrew: 9.8” Heidenhain Linear Glass Scales: ±0.0002” Resolution, ±0.0004” Repeatability Hoerbiger Hydraulic Valve System Siemens Electrical System Precision Tooling Package: ERMAKSAN 300-400 TON American Promecam ERMAKSAN American Type Adapter H105 (168.11”) ERMAKSAN Special Top Tool R3 (168.11”) ERMAKSAN 0.1784.12.02_RD17817 (168.11”) Two (2) Front Sliding Support Arms on THK Ways Rear Photocell Guard: CAT .04 Fiessler / W2000 Sick Side Safety Guards with Switch Double Foot Pedal Operator Station 230V or 460V, 60Hz, 3-Phase Electrical (Specify at Order) Machine Finish: RAL 7035 / RAL 9007 English Labels & Manuals
