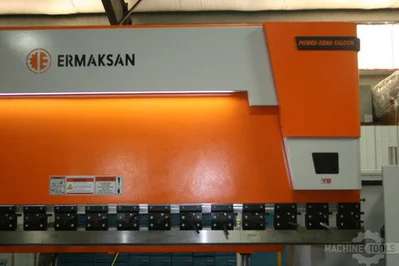

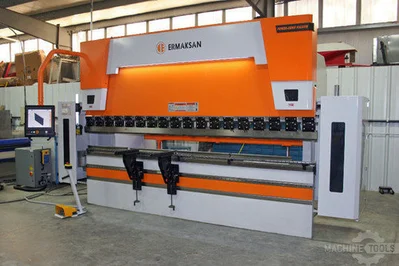

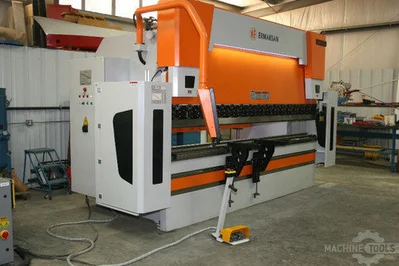

USED ERMAKSAN POWER BEND FALCON 3760-220

Brand – ERMAKSAN Model – POWER BEND FALCON 3760-220 Type – Press Brakes Year – 2017 Condition – Used – Excellent

Tonnage: 242 T
Type: HYD
Overall Length: 12.33′
Between Housings: 10.6′
Stroke: 10.83″
# Axis: 4
Dimensions: 200 x 89 x 114
Weight: 27,783
Control: CNC (ER 90 Plus)
Tonnage: 242 US Tons Bending Length (A): 148″ Distance Between Housings (B): 128″ Stroke (C): 10.8″ Daylight / Open Height (D): 21.7″ Throat Depth (E): 16.1″ Table Height (F): 35.4″ Table Width (G): 6.30″ Approach Speed: 425 in/min Bending Speed: 26 in/min Return Speed: 378 in/min Back Gauge Travel (X Axis): 31.5″ Main Motor: 24.8 HP Oil Capacity: 79.3 US Gallons Machine Length (L): 200″ Machine Width (W): 89″ Machine Height (H): 114″ Machine Weight: 27,783 lbs

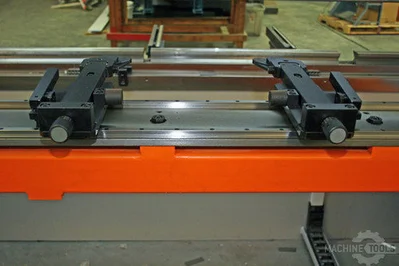

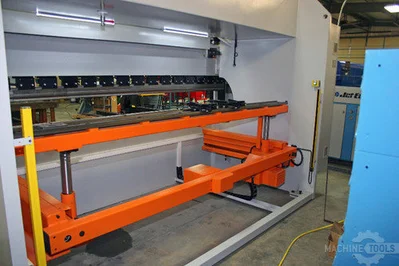

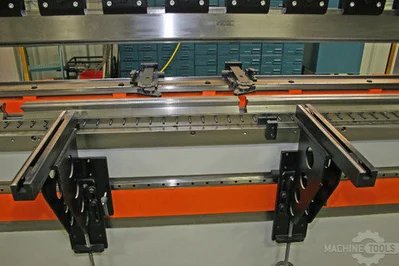

ER90 Plus CNC 3D Graphical Touchscreen Control Heidenhain Linear Encoders CNC Back Gauge (X + R Axis, Manual Z1 / Z2 Adjustment) CNC Motorized Crowning AKAS IILC2000 Front Point-of-Operation Safety System Two (2) Front Sliding Support Arms on THK Ways
