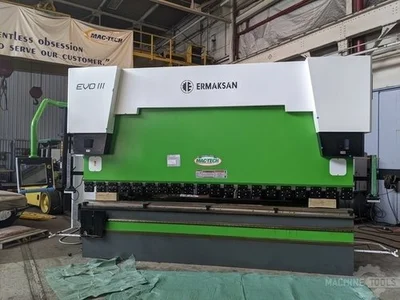

USED ERMAKSAN EVO III HYBRID

Brand – ERMAKSAN Model – EVO III HYBRID Type – Press Brakes Year – 2020 Condition – Used – Excellent

Tonnage: 242 T
Type: ELE
Overall Length: 14′
Between Housings: 120″
Stroke: 10.83″
# Axis: 7
Dimensions: 102″ (W) x 122.05″(H) x 244.09″(L)
Weight: 38,580

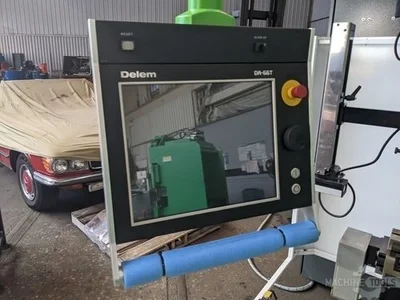

Control: CNC (Delem 66T)

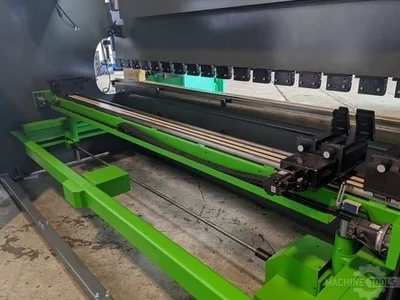

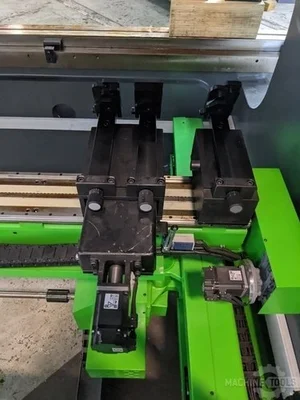

Model: Ermak EVO III 3760-175 Press capacity: 193 US Tons Bed length: 12.34 ft 7-axis configuration: Y1, Y2, X, X Prime 200, R, Z1, Z2 Back gauge: CNC-controlled X, X Prime 200, R, Z1, Z2 X-axis back gauge ballscrew: 31.5” R-axis travel: 9.8” Linear scale resolution: ±0.0002” Repeatability: ±0.0004” CNC motorized crowning: wedge-type Clamp and die holder: Promecam-style / flat top die holder Safety: Lazer Safe PCSS, photo cell guarding, interlocking side doors Operator controls: double foot pedal station Support arms: 2 front sliding arms on THK ways Electrical: Siemens, 480V, 3-Phase / 60 Hz Software: Delem 66T touchscreen, Profile T 2D offline Warranty: 1-year parts and labor Start-up & training: 2-day on-site

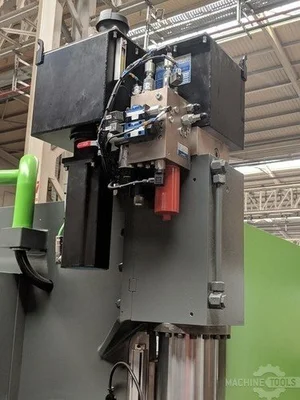

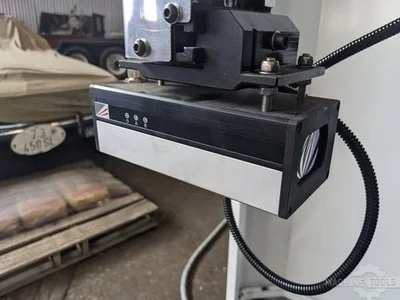

Hoerbiger Eprax Hybrid Closed Circuit Hydraulic System Delem 66T touchscreen control (2D control with 3D visual) Delem Profile T 2D offline software 7-Axis press brake: Y1, Y2, X, X Prime 200, R, Z1, Z2 Y1 + Y2 axis synchronization with ±0.0004” tolerance via linear encoders CNC back gauge: X, X Prime 200, R, Z1, Z2 31.5” X-axis ballscrew back gauge 9.8” R-axis travel Heidenhain linear scales: ±0.0002” resolution, ±0.0004” repeatability CNC motorized wedge-type crowning Lazer Safe PCSS safety system (2–6 mm mute point) Promecam-style American/European clamps and flat top die holder Clamp and die holder included Two front sliding support arms on THK ways Rear Fiessler Cat.04 photo cell guarding and side interlocking safety doors Double foot pedal operator station Siemens electrical components English labels and manuals MTTS on-site machine start-up & 2-day operator training 1-year parts and labor warranty 480V, 3-Phase / 60 Hz power RAL 7035 and RAL 9007 color scheme
