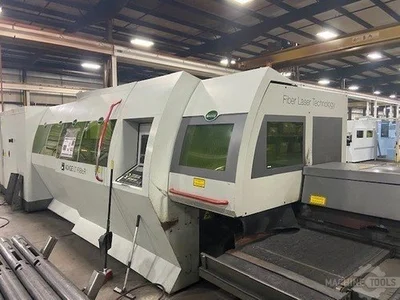

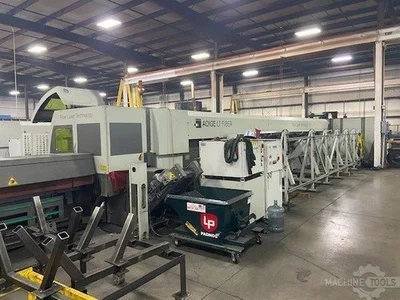

USED BLM ADIGE LASERTUBE LT FIBER 8.5-4.5

Brand – BLM ADIGE Model – ADIGE LASERTUBE LT FIBER 8.5-4.5 Type – Laser Cutters Year – 2013 Condition – Used – Excellent

Sheet-L: 334.65″
Wattage: 2000 w
Control: CNC (Siemens Sinumerik 840D CNC controller)
ADIGE Model LTFiber 8.5‑4.5 with Straight Cutting Head 8.5 m (27′10″) Rear Automatic Bundle Loader; Min bar length: 3.2 m (10′6″) 4.5 m (14′7″ front / 9′8″ rear) Finished Part Unloader Unloading Parts Collection Table for conveying finished parts Rear Scrap Conveyor: Metal-belted, collects scrap and end cuts IPG YSL‑C2000 Fiber Laser, 2,000 W, compact multimode fiber laser; low maintenance and operating cost, high beam quality Dust Collector for fume extraction Closed Loop Chiller for resonator cooling Delicate Tube Handling Option with rubber and nylon guards to minimize tube marring Weld Seam Detector for optical identification and orientation of welding seams

IPG YLS C‑2000 Fiber Laser (2,000 W, higher power optional) Siemens 840D CNC Controller Tube Twist & Bow Correction System included Optional Weld Seam Detection Optional Open Shape Cutting (channel, angle iron, flat bar) Bar Load Options: 21′ and 28′ lengths Bar Unload Options: 11′, 14′, and 21′ lengths Round Tube Diameter: 0.5″ – 6″ (optional kit required for max) Square Tube Size: 0.5″ × 0.5″ – 5″ × 5″ Rectangular Tube Size: 0.5″ × 0.5″ – 5″ × 5″ Acceptable Materials: Mild steel, stainless steel, aluminum, copper, brass, other alloys Maximum Bundle Weight: 8,000 lbs Maximum Bar Weight: 10.2 lbs / foot (15 kg / meter)
