USED BALLUFF BGL 50A-001-S49

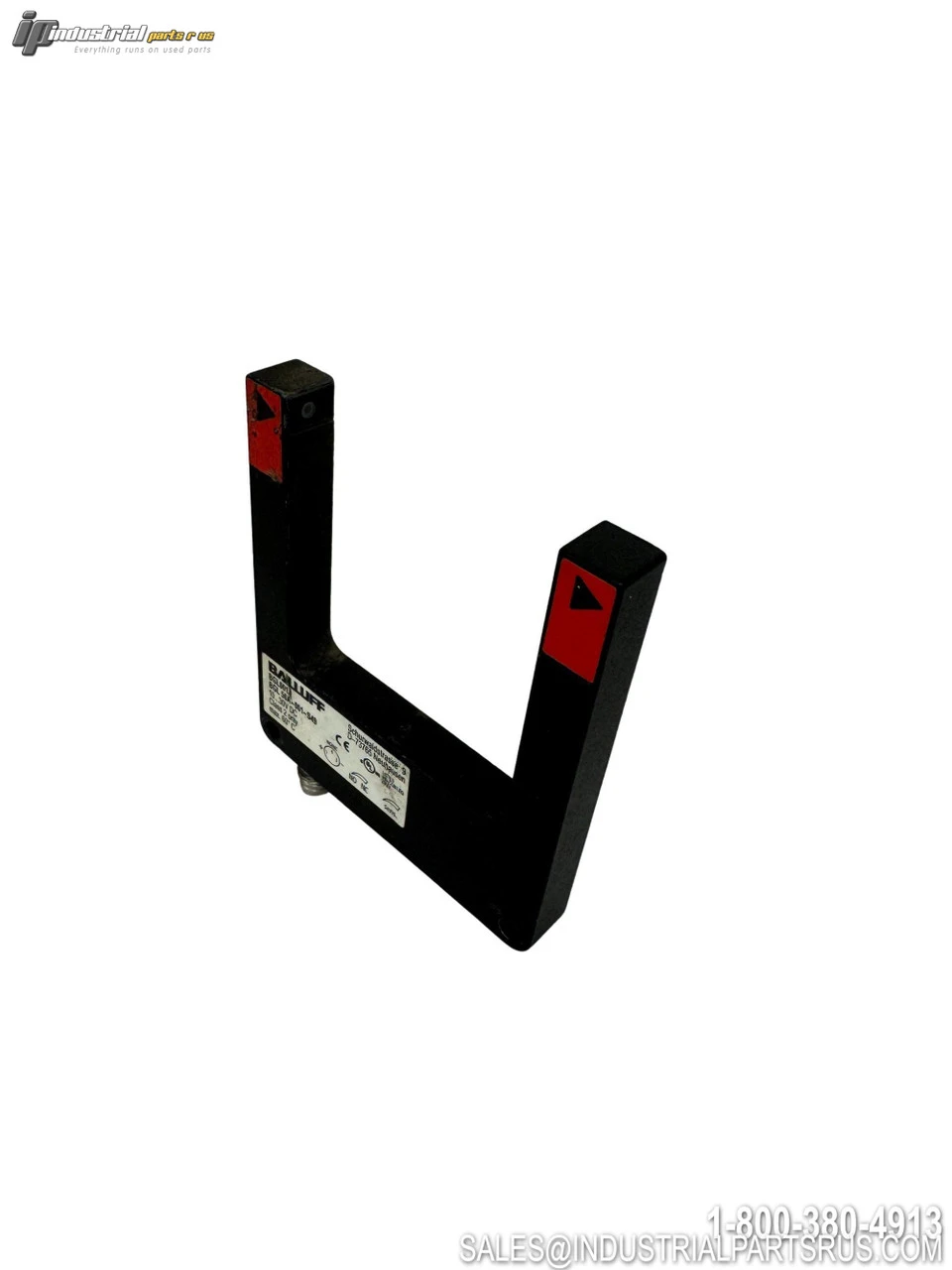

The Balluff BGL 50A-001-S49 is a photoelectric fork sensor designed for precise object detection in industrial automation applications. This through-beam sensor features a 50mm fork opening and PNP output with normally open/normally closed switching capability, making it ideal for detecting small components and providing reliable process control.
Specification
Value
Brand
Balluff
Model/Part Number
BGL 50A-001-S49
Order Code
BGL001J
Series
A
Fork Opening
50mm
Sensing Range
0-50mm
Output Type
PNP
Contact Configuration
NO/NC Switchable
Supply Voltage
10-30 VDC
Output Current
200mA
Supply Current
35mA
Switching Frequency
1.5kHz
Operating Temperature
-10°C to 60°C
Connection Type
M8x1 Male 3-Pin Connector
Housing Material
Zinc Die Casting, Painted
Sensing Surface Material
Glass
Dimensions
10 x 70 x 88 mm
IP Rating
IP65
Light Type
LED Red Light
Beam Characteristic
Divergent
Light Spot Size
Ø 1.5mm Light Exit
Approvals
CE, cULus, WEEE
We warranty all items for 30 days from date of purchase.

SKU: AI0941
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Fork Sensor
Full Load Amps: 35mA
Manufacturer: Balluff
Part Number: BGL 50A-001-S49
Shelf: K-57
Model: BGL 50A-001-S49
MPN: BGL 50A-001-S49
Type: Photoelectric Sensor
