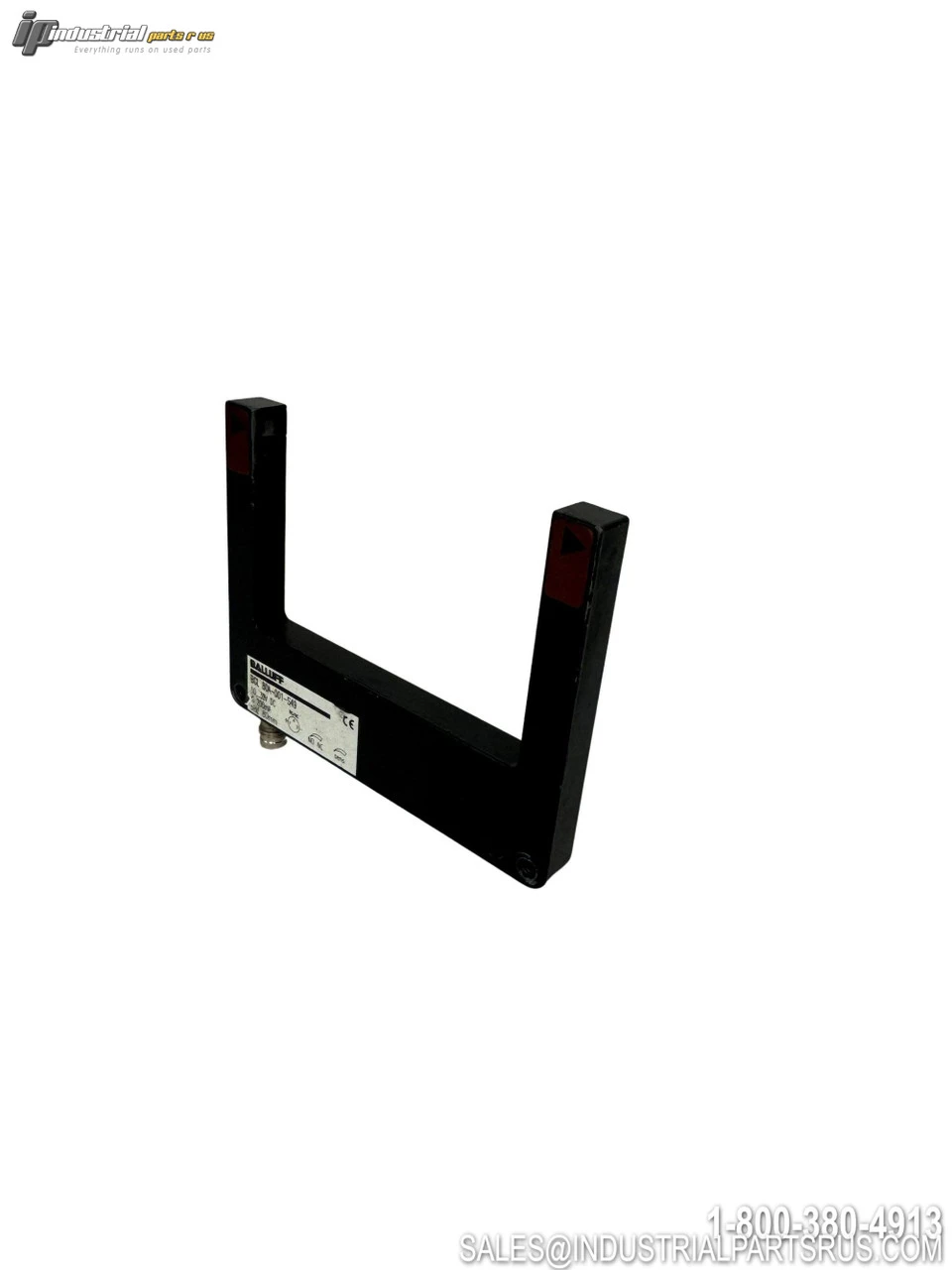

USED BALLUFF BGL 80A-001-S49

The Balluff BGL 80A-001-S49 is a fork-type photoelectric sensor designed for precise object detection and positioning applications. This self-contained through-beam sensor features a U-shaped housing configuration that offers pinpoint accuracy with highly visible red LED emission. The integrated transmitter and receiver design saves mounting and machine setup time while providing reliable process control.
Specification
Value
Brand
Balluff
Model/Part Number
BGL 80A-001-S49
Order Code
BGL0023
Series
A
Fork Opening
80 mm
Sensing Range Max
80 mm
Supply Voltage
10-30V DC
Output Type
PNP
Contact Configuration
NO/NC Switchable
Operating Current Max
200 mA
Supply Current
35 mA
Light Type
LED Red (636 nm)
Frequency Response
1.5 kHz
Operating Temperature
-10°C to +60°C
IP Rating
IP65/IP67
Dimensions
10 x 100 x 88 mm
Housing Material
Aluminum
Connection Type
M8 x 1 Male 3-Pin
Sensing Surface Material
Glass
Mounting
Screw M4, Through Hole
Optical Operation
Through-beam
We warranty all items for 30 days from date of purchase.

SKU: AI0942
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Photoelectric
Full Load Amps: 200 mA
Manufacturer: Balluff
Part Number: BGL 80A-001-S49
Shelf: K-57
Model: BGL 80A-001-S49
MPN: BGL 80A-001-S49
Type: Photoelectric Sensor
