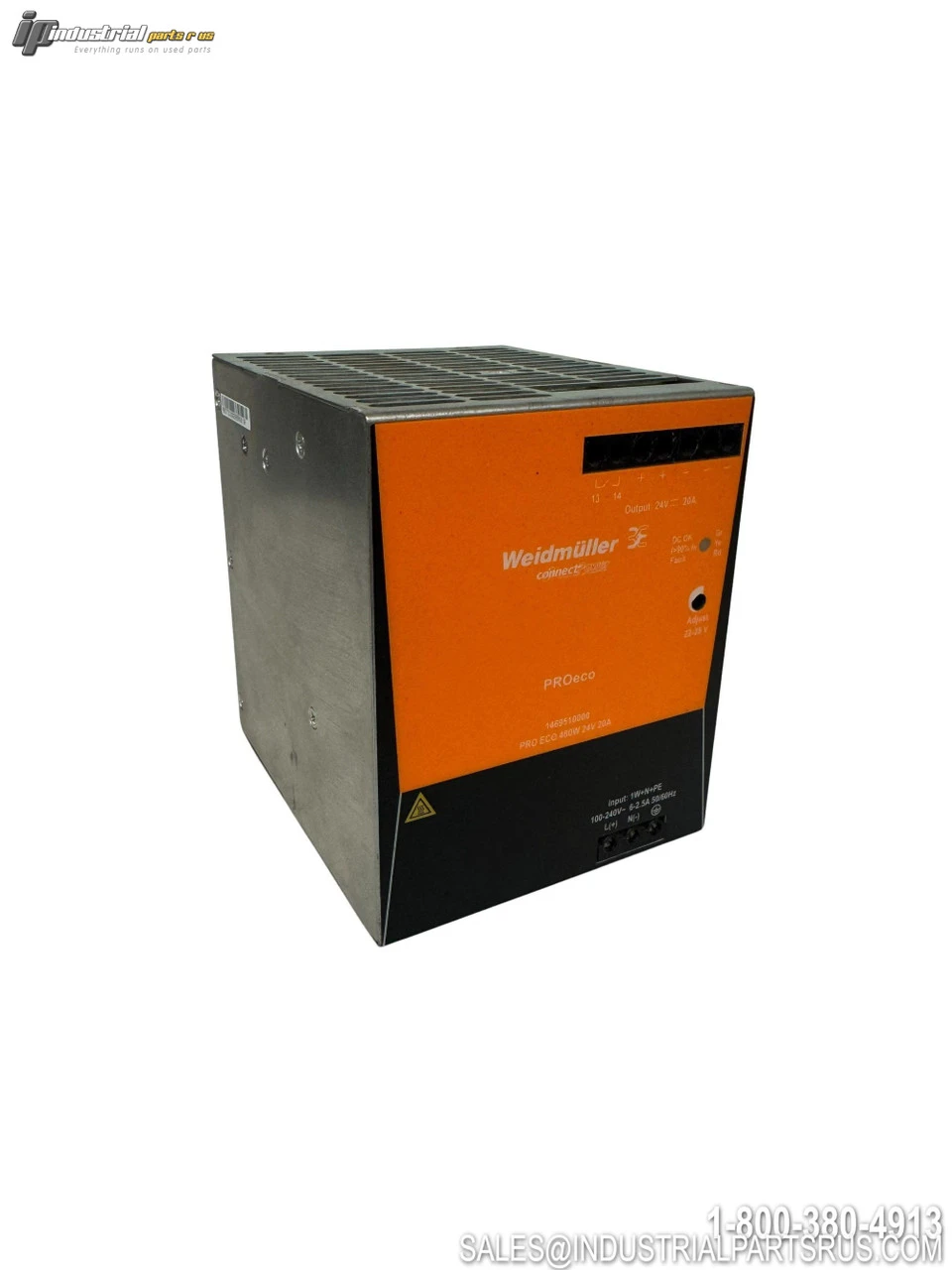

USED WEIDMÜLLER 1469510000

The Weidmüller 1469510000 is a single-phase switch mode power supply unit designed for providing DC voltage in industrial applications. This PRO ECO series power supply features 85 to 264 VAC input voltage range, 24 VDC output at 20 amperes, and 480 watts of power. The unit is designed for DIN rail mounting with dimensions of 100mm width, 125mm height, and 120mm depth.
Specification
Value
Brand
Weidmüller
Model/Part Number
1469510000
Series
PRO ECO
Input Voltage
85-264 VAC
DC Input Voltage Range
80-370 VDC
Output Voltage
24 VDC
Output Current
20 A
Power Rating
480 W
Frequency
47-63 Hz
Efficiency
91%
Operating Temperature
-25°C to 70°C
Storage Temperature
-40°C to 85°C
Mounting Type
DIN Rail
Connection Type
Screw Terminal
Width
100 mm (3.937 in)
Height
125 mm (4.921 in)
Depth
120 mm (4.724 in)
Weight
1557 g
Power Factor
>0.98 at 230V AC / >0.98 at 115V AC
AC Current Consumption
2.37A at 230V AC / 5.2A at 110V AC
Number of Outputs
1
Output Voltage Range
22-28V
Short Circuit Protection
Yes
Overload Protection
Yes
Temperature Protection
Yes
UL File Number
E258476
We warranty all items for 30 days from date of purchase.

SKU: AI0879
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 2.37A at 230V AC / 5.2A at 110V AC
Manufacturer: Weidmüller
Part Number: 1469510000
Shelf: K-32
Model: 1469510000
MPN: 1469510000
Type: Switching Power Supply
