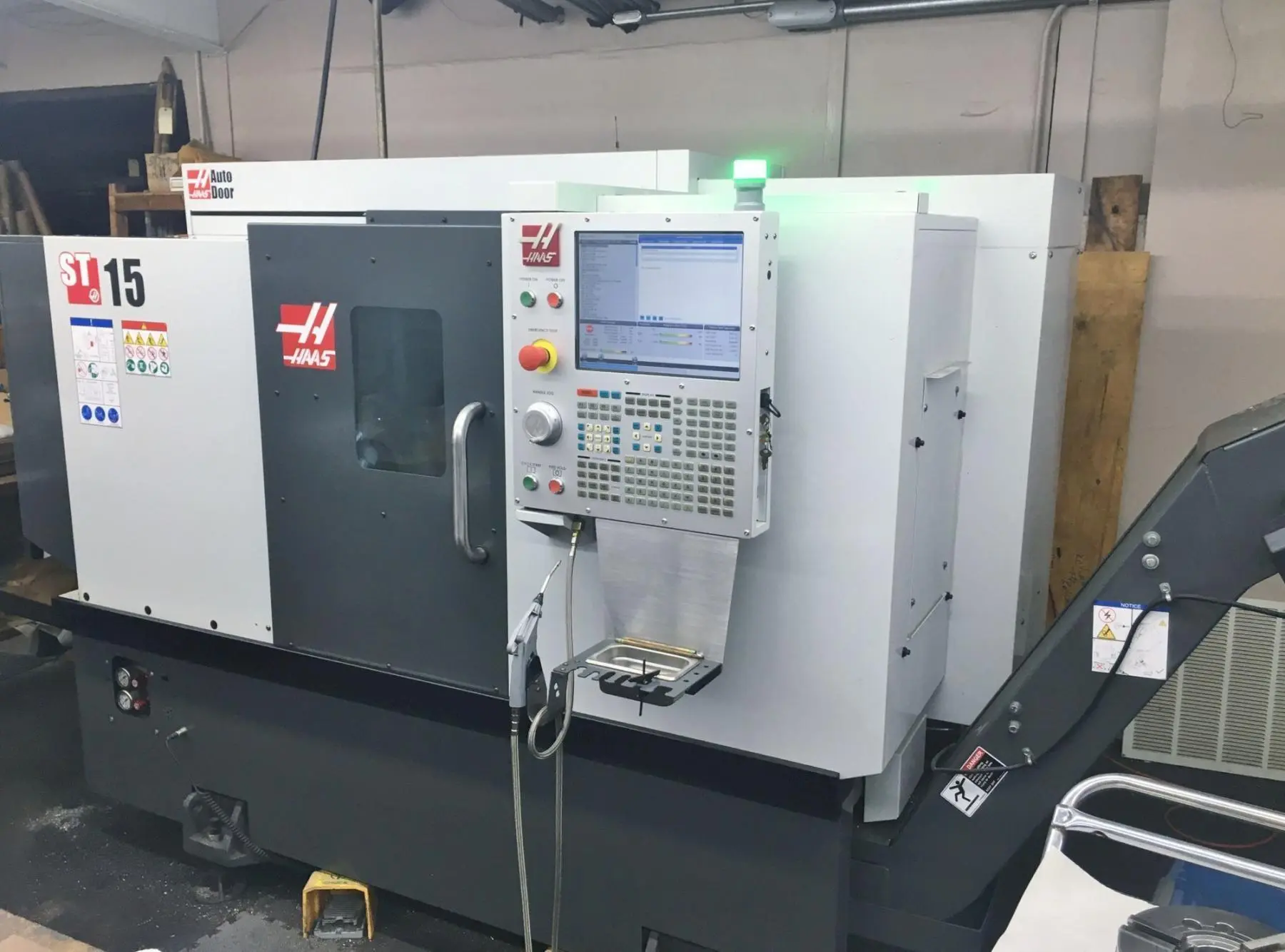

USED 2019 HAAS ST-15

Equipped With
HAAS MODEL ST-15 CNC LATHE
New 2019
HAAS NEXTGEN CONTROL
8”, 3-JAW SAMCHULLY (MH-208VI) HYDRAULIC CHUCK

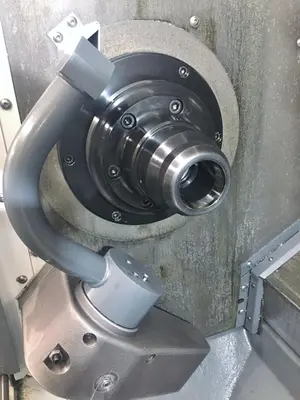

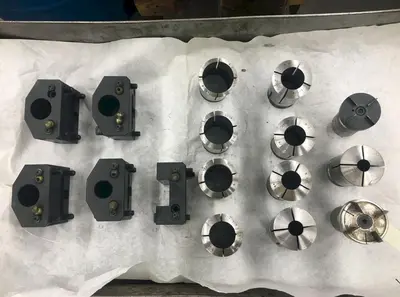

3J COLLET CHUCK
MANUAL TAILSTOCK (HYDRAULIC QUILL)
TOOL PRESETTER
CHIP CONVEYOR
AUTO DOOR

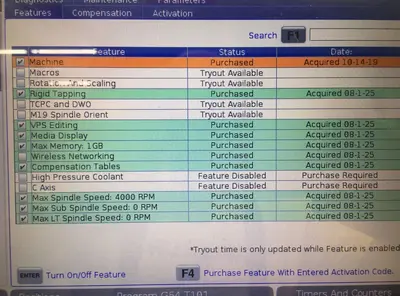

VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
RIGID TAPPING
USB PORT
ETHERNET
1GB MEMORY
WIFI CONNECTION
HAASCONNECT: REMOTE MONITORING
** AS OF MARCH 2026, CUTTING TIME – 566 HOURS
** MACHINE CUT PRIMARILY 4140 STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $100,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
MAX SWING
16.5"
MAX CUTTING DIAMETER
12"
MAX CUTTING LENGTH
16"
X-AXIS TRAVEL
7.9"
Z-AXIS TRAVEL
16"
CHUCK SIZE
8"
BAR CAPACITY
2.5"
SPINDLE NOSE
A2-6
SPINDLE MOTOR
20 hp
SPINDLE SPEED
4,000 RPM
TURRET POSITIONS
12
TURRET TYPE
BOLT-ON
