NEW GEKA HYDRACROP 55S

Equipped With

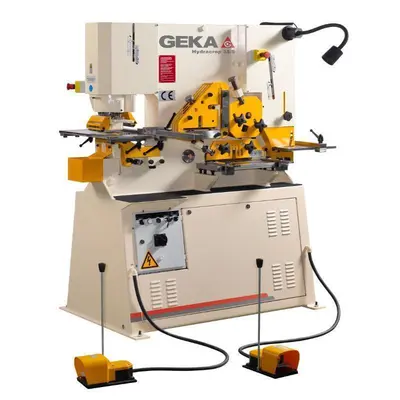

NEW GEKA HYDRACROP 55S UNIVERSAL IRONWORKER
Capacity: 61 US Tons
Ø1-1/2” in 7/16” or Ø 1-1/4” in ½”
Maximum Round Punch that can be held Ø1-9/16”.
Optional Attachments up to 4” and 6” are available.
Throat Depth: 10”
Working Height: 41-3/4”
Safety:
•2 Stage foot pedal with low pressure on first stage.
•When the stripper is open only low pressure is allowed for safe alignment of the tools.
•Steel Guards with Slots and Rollers.
•Emergency Stop close to working area.

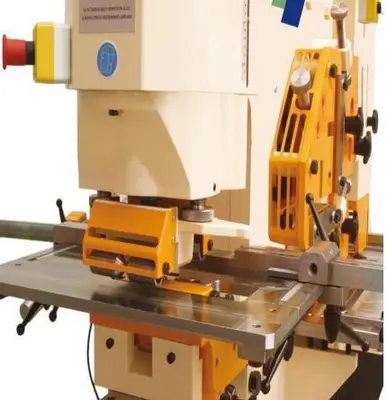

GEKA Tools:
Punches 8/31 for up to Ø1-3/16”. 8/32 for Ø1-1/4”. 8/40 up to Ø1-9/16” as standard
Optional: GEKA 5/27 and Other Brands and Styles on Request
Dies No 5 for up to Ø1-1/4” and No 8 up to Ø1-9/16”
Optional: Other Brands and Styles on Request
Other Information:
•Goose Neck Die Block with supports can be removed for punching of large U, I, and T profiles. When removed the allowable tonnage should be reduced to 30 US Tons.
•Gauging Table with inlayed inch scales as standard with front to back adjustment on rollers.
•Front to back movement on rollers for easier adjustment.
•Punch Slug Bucket
•Full Stroke or Jog Mode for inching of the tool with automatic return when lower limit switch is triggered.
•Gibbed and Guided punching cylinder for superb alignment of the tools.
•Quick change Punch holder.
Off-Set Punch and Die Holder:
A specialized Punch and Die holder that is offset ½” from center line of the standard tool set up for punching angles or other profiles. Maximum round hole is Ø13/16” and should only be used to a maximum 25 Us Tons. It requires GEKA No P9 Punches and No 1 Dies

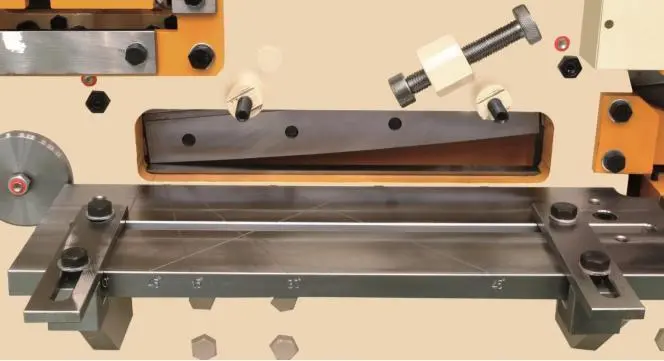

Flat Shearing Station:
Working Height: 34-3/8”
Length of Blade: 12”
Capacities: 12” x 5/8” or 8” x ¾”
Other Information:
•Rigid Table with mitering gradations inscribed in the table.
•Two adjustable guide bars.
•Manual hold down with access for shearing legs of angles
Angle Shearing Station:
Tonnage: 120 Us Tons
Working Height: 42”
Capacities: 4” x 4” x ½” or 5” x 3” x ½”
•Angles at a 45º miter (leg in) - 3" x 3" x 5/16"
Other Information:
•Shearing of both legs of the angle at the same time
•“Non-deform cut” With no material loss
•Vertical & Horizontal guides for square cuts
