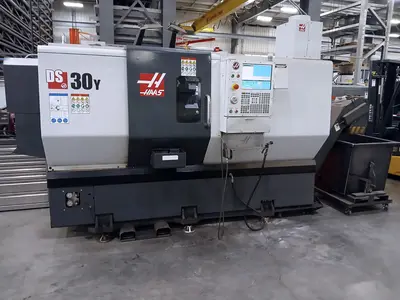

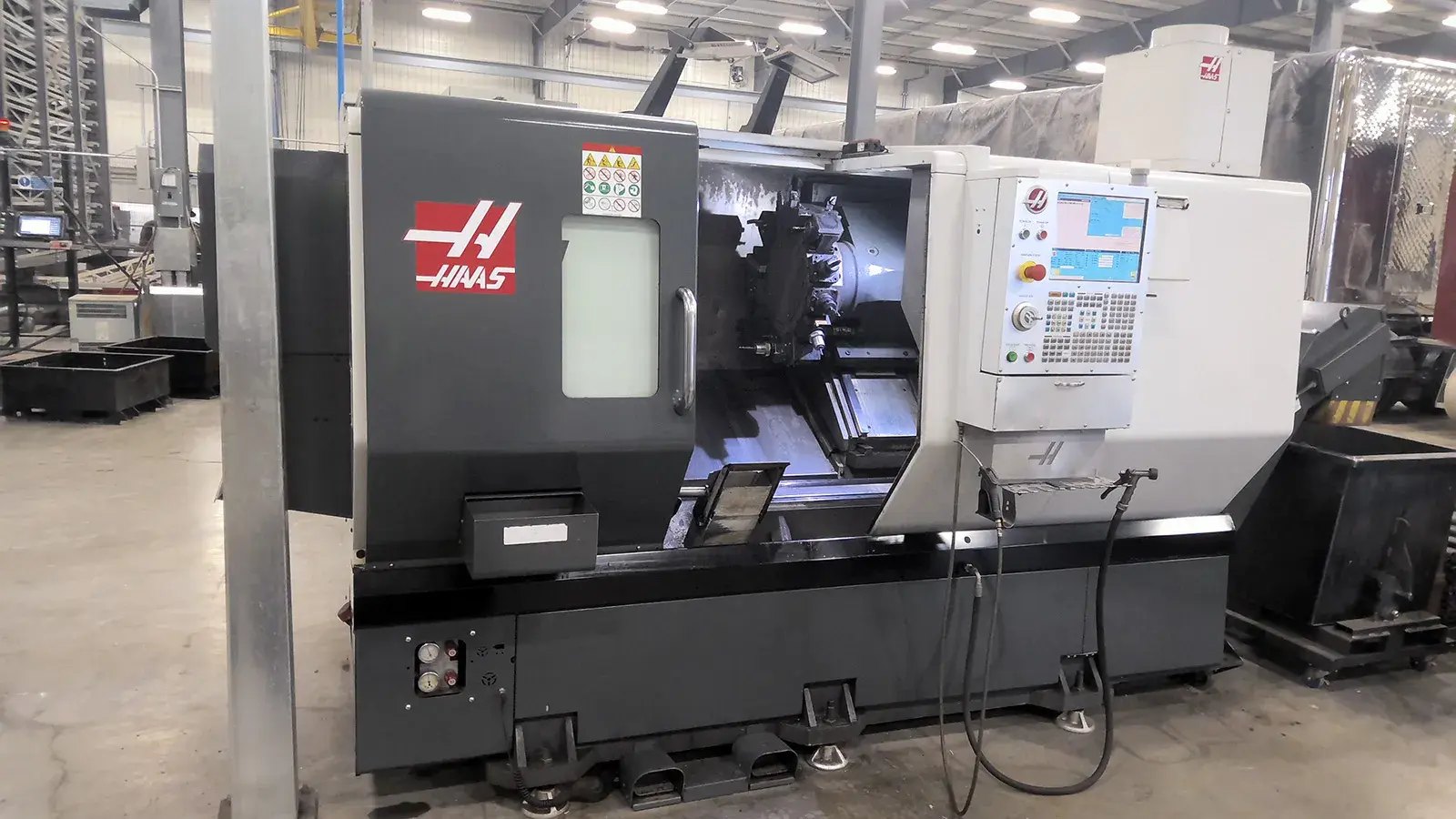

USED 2018 HAAS DS-30Y
Overview
The Haas DS-30Y CNC Lathe (2018) is a high-performance turning center designed for efficient single-setup machining. Equipped with twin spindles and Y-axis capability, it performs turning, milling, drilling, and tapping with precision. Ideal for producing complex automotive, aerospace, and industrial components such as wheel spacers and precision machined parts, delivering productivity and accuracy in demanding CNC applications.
Specs
X-Axis Travel: 12.5″
Y-Axis Travel: ±2.0″
Z-Axis Travel: 21.0″
Swing: 31.75"
Power: 30 hp
Main Spindle RPM: 4500 RPM
Live Tooling: 4000 RPM
Main Spindle Nose: A2-6
Sub-Spindle Nose: A2-5
Max Turning Diameter: 17.8″
Max Turning Length: 21.0″
Rapid Traverse (X / Z): 945 IPM
Rapid Traverse (Y): 400 IPM
Equipped With
Dual Spindle CNC Turning Center
Y-Axis + Live Tooling
BMT65 12-Station Turret
Automatic Tool Pre-Setter
Parts Catcher
Main: 10" Hydraulic Chuck (A2-6)
Sub: 8" Hydraulic Chuck (A2-5)
Belt-Type Chip Conveyor
55 Gallon Coolant Tank
Rigid Tapping
Spindle Orientation
