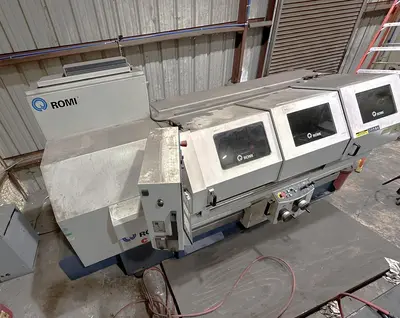

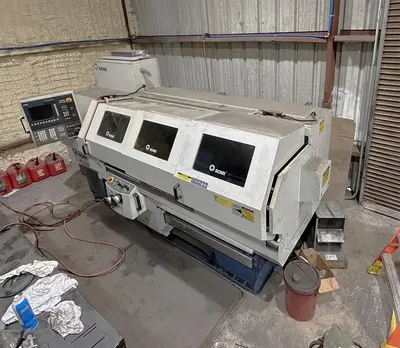

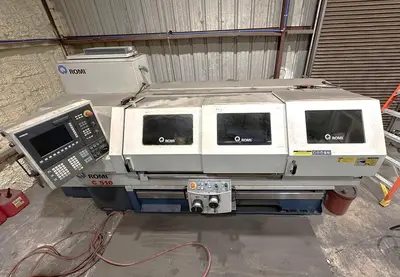

USED 2013 ROMI C-510

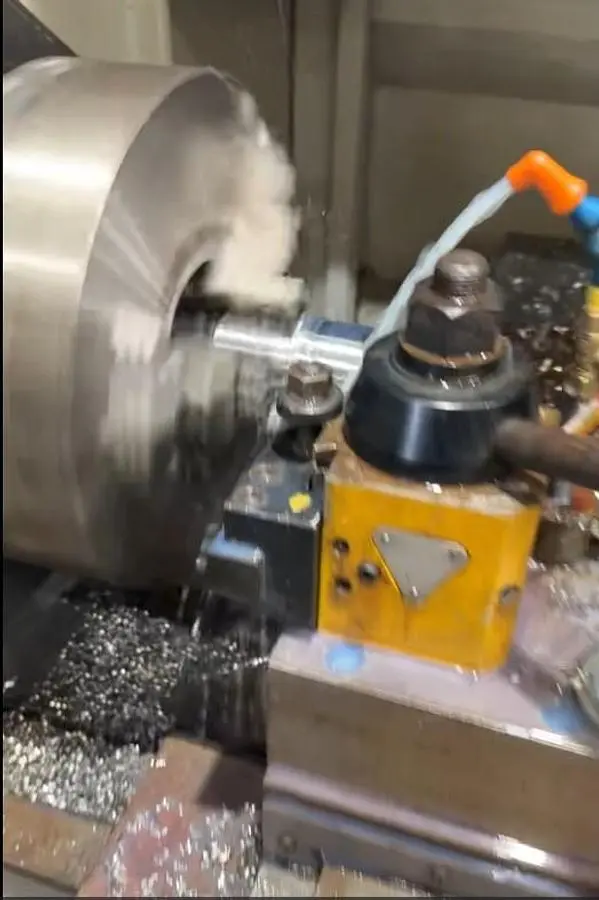

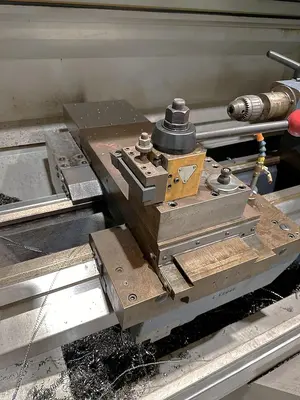

Tool Post

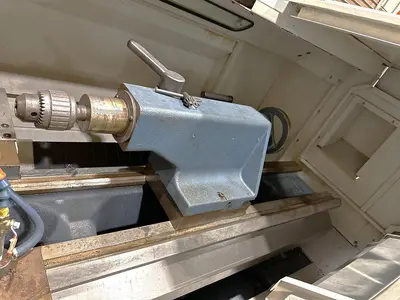

Manual Tailstock
10" 3 Jaw Manual Chuck

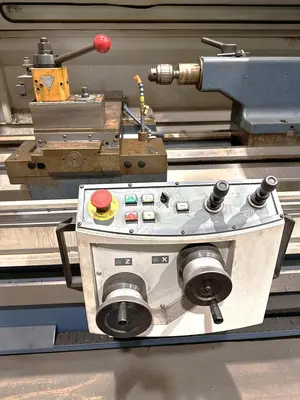

Manual Hand Wheels with Joysticks
RMMP (Romi Manual Machining Package)
-allows for both manual mode using hand wheels and auto mode using joysticks & start cycles
Belt Driven Headstock
10.4" Color LCD Monitor
Conversational Programming Ability as well as G Code
Linear & Circular Interpolation
Backround Editing

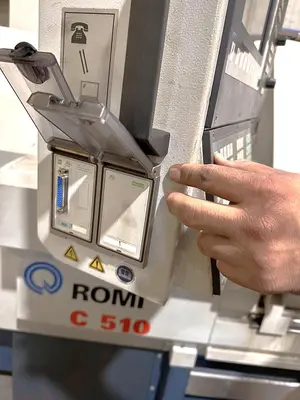

USB Port Interface
RS 232 Port Interface
Direct Drive Type Transmission
Coolant System with Tank & Pump
Hardened & Ground Ways
Wired 205V, Three Phase Electrics, 24 Amps Full Load

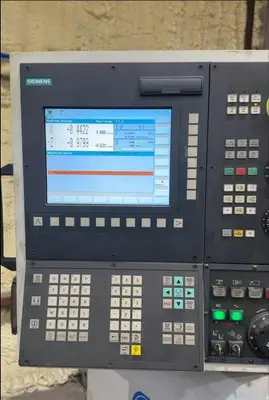

Machine Control: Siemens 828D Control w/ Conversational Programming
Chuck Size: 10" 3 Jaw Manual
Maximum Swing: 20.5"
Maximum Swing Over Cross Slide: 10"
Distance Between Centers: 59"
Height of Centers: 10.2"
Spindle Nose / Bore / Bar Capacity: A2-6" / 2.6" / 2.6"
Spindle Speed: 30 - 3,000 RPM
Spindle Motor: 15 HP
Number of Turret Positions: Tool Post
Rapid Traverse Rates: 394 IPM
Tailstock Quill Diameter / Quill Travel: 2.4" / 5.1"
Tailstock Quill Taper: MT #4
Machine Dimensions LxWxH: 142" x 49"
Machine Weight: 7,000 lbs.
