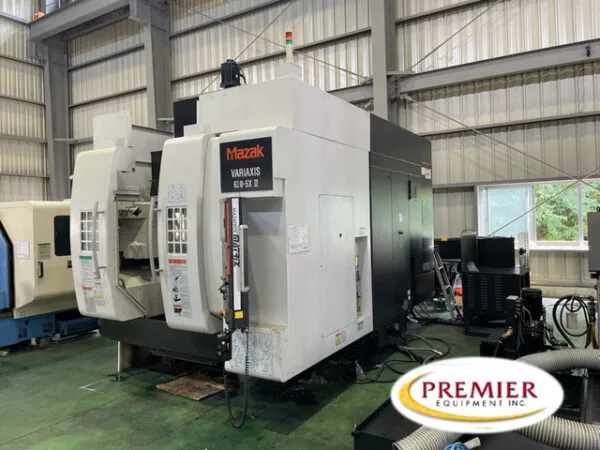

Mazak Variaxis 630-5X-II (Single Pallet) – 2010
Overview
Description
Mazak Variaxis 630-5X-II (Single Pallet) 5-Axis CNC Vertical Machining Center
Specifications
Table Size (Single Pallet)…………. 24.8″ x 19.69″
Floor Space Required………………. 110″ x 163″
Machine Height from Bottom of Base….. 127.36″
Machine Weight …………………… 29,762 lbs.
TRAVELS
X-Axis Travels……………………. 24.80″
Y-Axis Travels……………………. 30.12″
Z-Axis Travels……………………. 20.08″
A-Axis Travels
(.001 Degree Positioning Only)…….-120 deg.- +30 deg.
C-Axis Travels……………………. 360,000 degrees
Distance Spindle Nose/Table Top…….. 9.06″ – 29.13″
(Table Horizontal)
WORKPIECE SIZE
Maximum Table Load………………… 1,102 lbs.
Max Workpiece Dimensions…………… 28.74” Dia x 19.69” Height
SPINDLE
Spindle Nose……………………… #40
Spindle RPM………………………. 18,000
AUTOMATIC TOOL CHANGER
Magazine Capacity…………………. 40
Equipped With
MAZATROL MATRIX Control
EIA/ISO Input Function
ATC-40
Thru Spindle Coolant
