USED HARDINGE SG-42

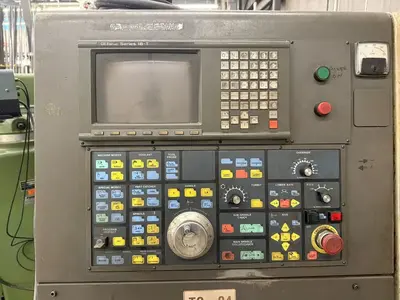

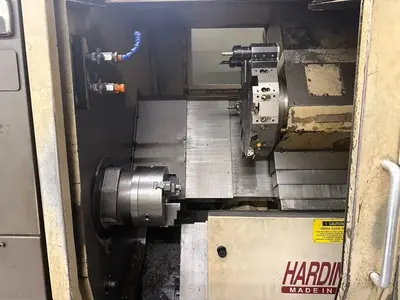

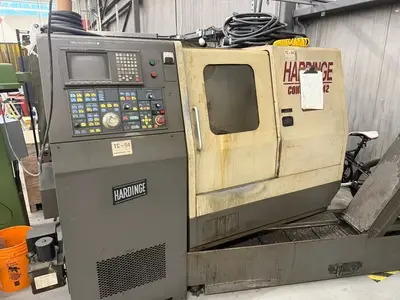

THE HARDINGE SG-42 (CONQUEST T42) IS A CNC SLANT BED TURNING CENTER FEATURING A GE FANUC 18-T CONTROL SYSTEM. IT OFFERS A MAXIMUM SWING OVER BED OF 21.2 INCHES, A MAXIMUM TURNING DIAMETER OF 9.5 INCHES, AND A MAXIMUM TURNING LENGTH OF 13.9 INCHES. THE SPINDLE IS EQUIPPED WITH AN A2-5 NOSE AND A 16C COLLET SYSTEM, PROVIDING A BAR CAPACITY OF 1.625 INCHES AND A SPINDLE BORE OF THE SAME DIMENSION. THE SPINDLE MOTOR DELIVERS 10 TO 15 HP, SUPPORTING A SPEED RANGE FROM 44 TO 5,000 RPM. THE MACHINE INCLUDES A 12-STATION TURRET WITH A 0.5-SECOND INDEX TIME, ACCOMMODATING 3/4-INCH SQUARE SHANK AND 1.25-INCH ROUND SHANK TOOLS. AXIS TRAVELS ARE 5.31 INCHES FOR THE X-AXIS AND 13.9 INCHES FOR THE Z-AXIS, WITH RAPID TRAVERSE RATES OF 472 IPM AND 630 IPM RESPECTIVELY. OPERATING ON 230V, 60HZ, 3-PHASE POWER, THE UNIT HAS APPROXIMATE PHYSICAL DIMENSIONS OF 90 X 65 X 67 INCHES AND WEIGHS APPROXIMATELY 9,500 LBS. SOME CONFIGURATIONS MAY INCLUDE A C-AXIS FOR THE MAIN SPINDLE WITH 0.001-DEGREE RESOLUTION, LIVE TOOLING CAPABILITIES, AND A PROGRAMMABLE TAILSTOCK OR SUB-SPINDLE DEPENDING ON THE SPECIFIC BUILD.
