USED 2024 HOLZ-HER TECTRA 6120 CLASSIC

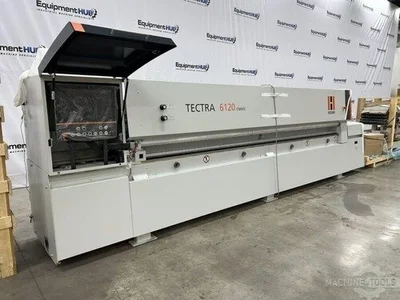

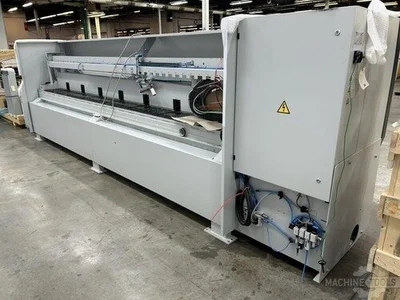

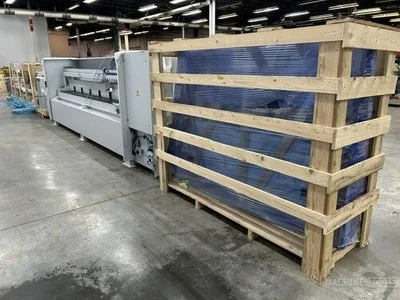

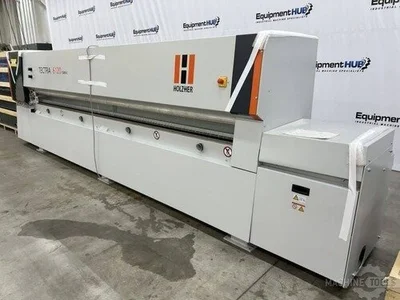

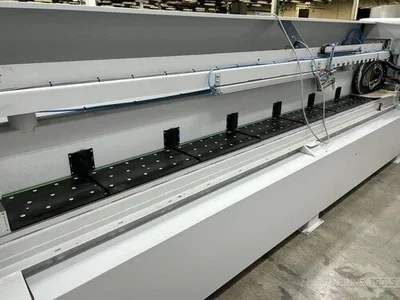

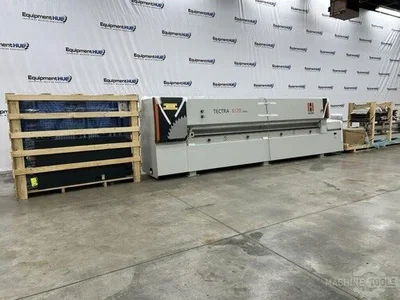

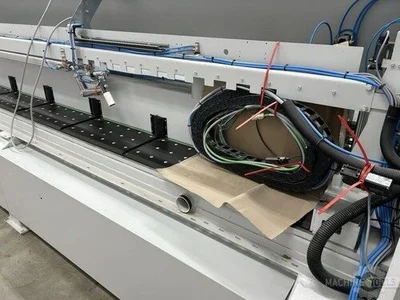

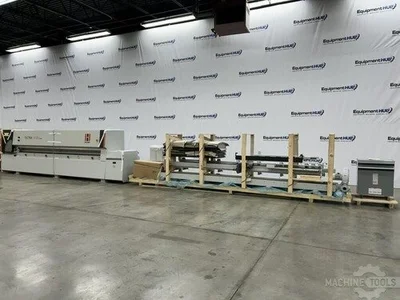

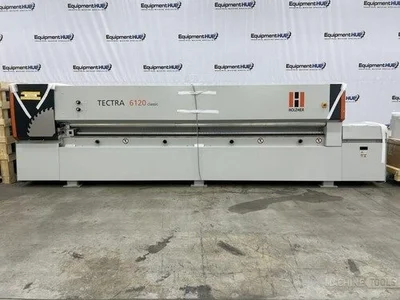

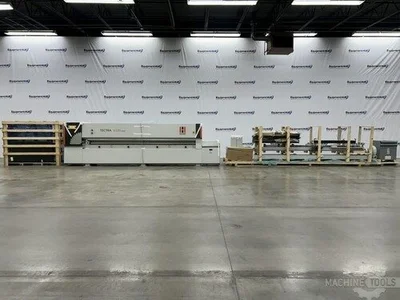

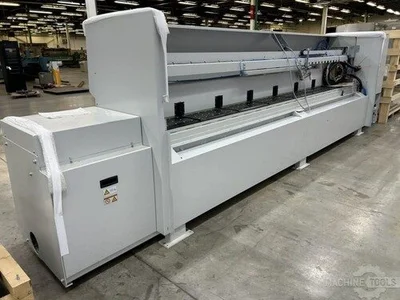

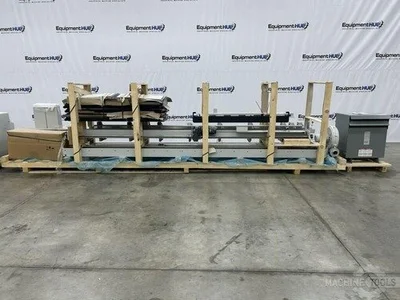

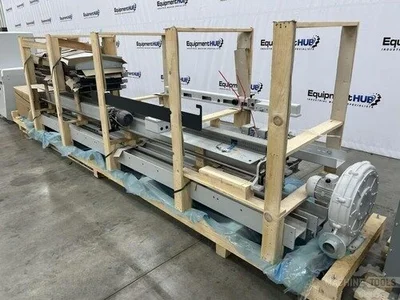

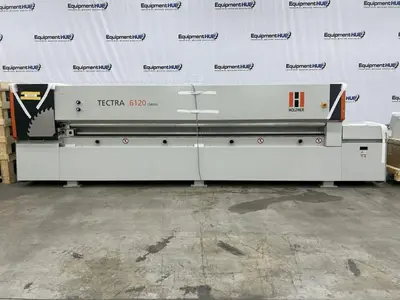

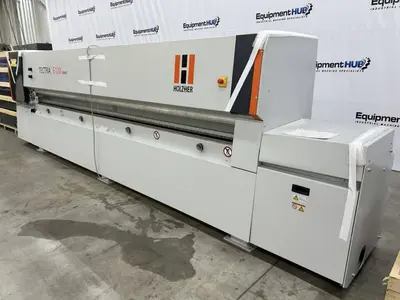

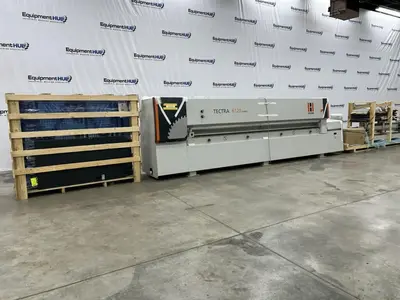

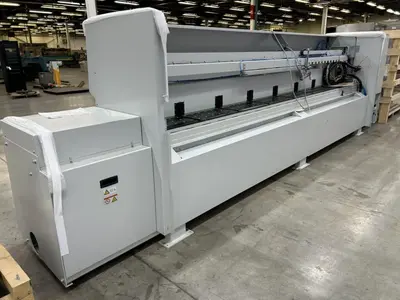

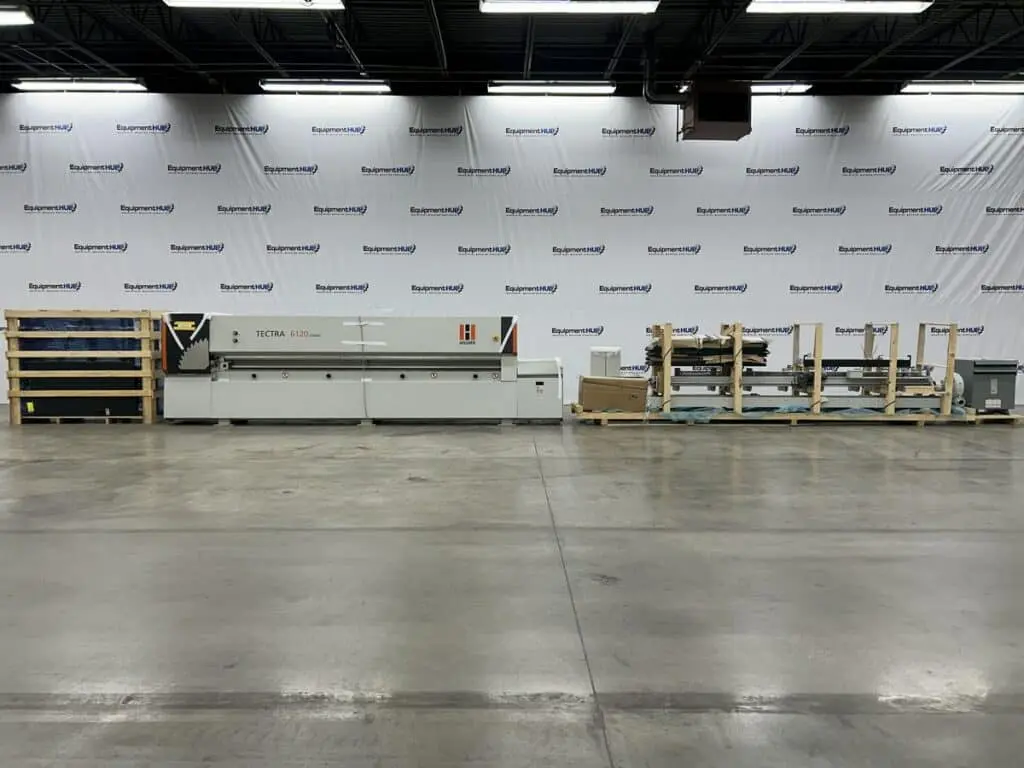

Holz-Her Tectra 6120 Classic 14' Horizontal Beam Saw (New Never Installed 2024 model)

General Info

Stock #: 110260001
Location: Decatur, GA
Brand: Holz-Her
Model: Tectra 6120 Classic

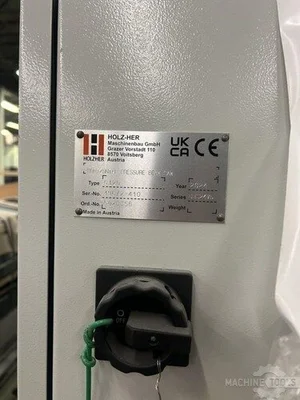

Serial #: 496/2-410
Year: 2024
Approx. Shipping Weight: 11,000 Lbs.
Approx. Shipping Dimensions: 42' L x 8' W x 6' H

Specifications

Maximum Saw Blade Projection: 3.23"
Cutting Length: 173.23"
Main Saw Motor: 10HP
Scoring Saw Motor: 3HP
Main Saw Blade Diameter: 13.78"
Scoring Saw Blade Diameter: 7.09"
Saw Carriage Feed Speed: 0 - 230 Ft/min.
Saw Carriage Return Speed: 230 ft/min.
Pusher Speed (Forward): 82 ft/min.
Pusher Speed (Backward): 328 ft/min.
Max Opening for Clamps: 3.23"
Control Screen Size: 21.5"

Equipped With

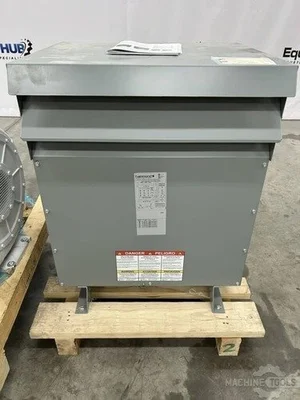

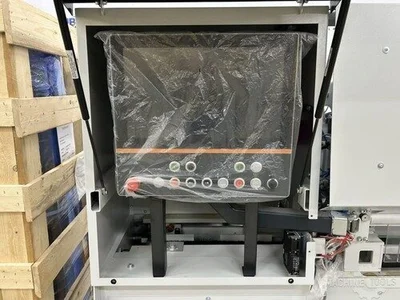

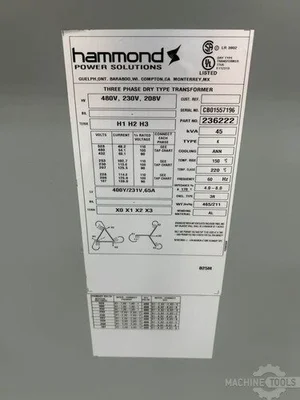

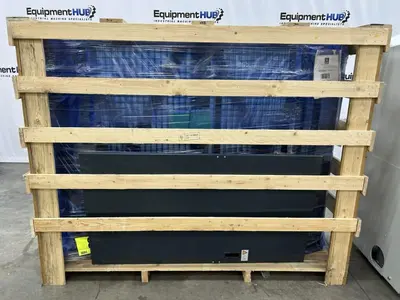

CUTControl 2 with 21.5" TFT Display and 3D Graphics, Motor Driven Programmable Groove Depth Adjustment from 0 to 1.18", Air Flotation Tables to Prevent Scratching, EASY-PLAN Optimization Software, New Hammond 45 kVA 400V Output Transformer, New Dust Collector

Additional Info

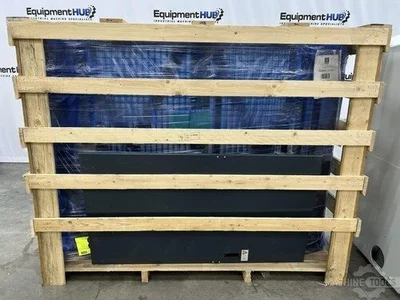

This is a brand new saw that was never put in production.
