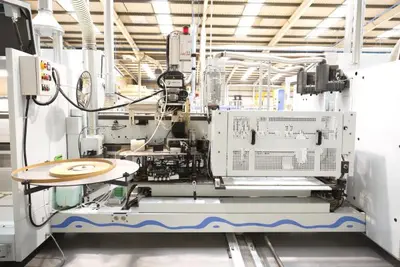

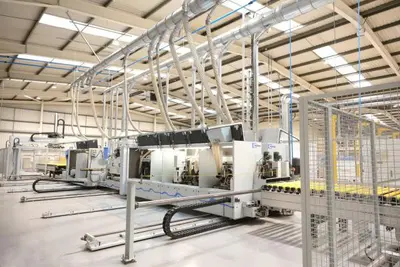

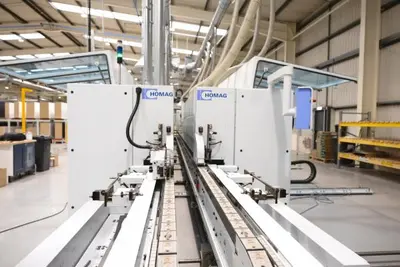

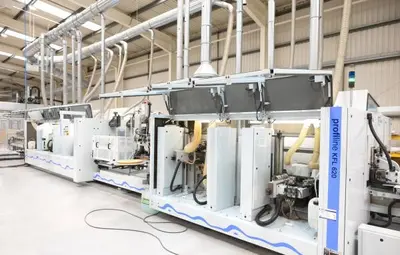

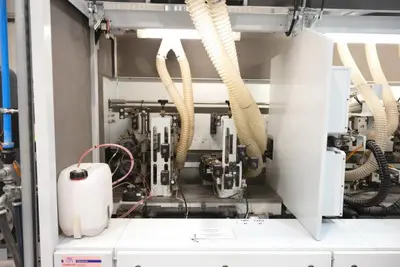

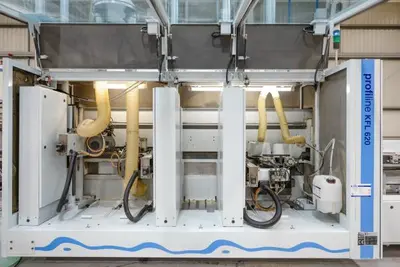

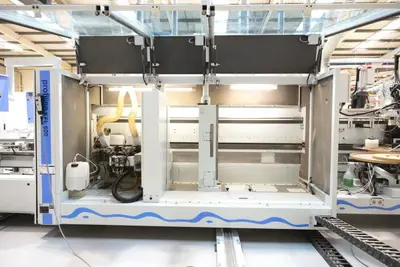

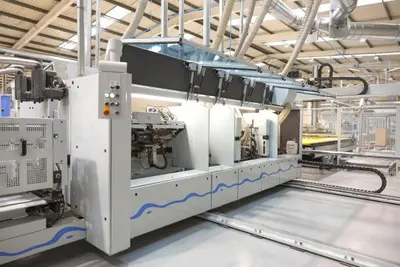

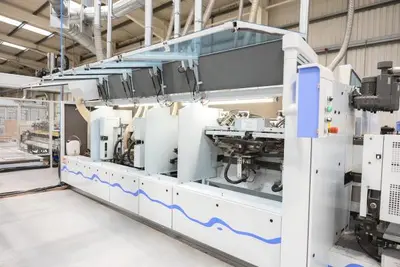

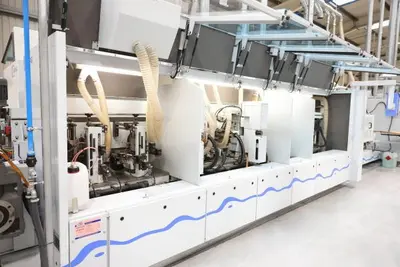

USED HOMAG KFL

Double-Sided Edgebander - Independent Machine (or 1st and/or 2nd in line)
Thickness of rolled edges (min/max) 0.3 - 3 mm
Thickness of strips/strips (min/max) 0.4 - 12 mm
Panel thickness (min/max) 8 - 100 mm
Working width (min/max) 240 - 3000 mm

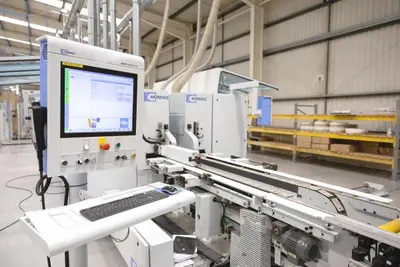

Numerical control: Power Control PC22 (Windows XP)
WoodCommander software
Variable feed speed (m/min) 10 - 40
Safety and soundproofing enclosures
Distance between pawls (mm) 400

SQUARING PART (for each side):
Grinding unit (2 x 6.6 kW)
Free space
Left side only: 2 x Rotating spindle moulders (2 x 6.6 kW)

EDGEBANDING PART (for each side):
Gluing system (Hot melt glue + Pre-melting unit) E34

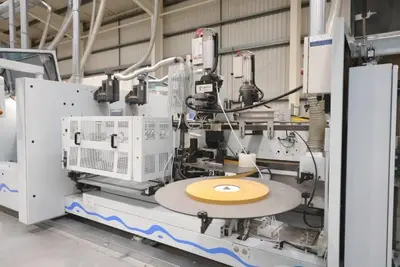

Pressure roller conveyor (revolver) for straight and shaped edges (softforming) GL sextuple Roll holder (for 1 reel)
WK14 end trimming unit (2 x 0.8 KW) 25 m/min (0°-30°)
Chamfering unit (2 x 0.55 KW) 0°-30° FF12 rounding unit (4 motors) WD70 20 m/min
Edge scraping unit PN20
Finishing unit (Glue scraper + Brushes) FA 11
