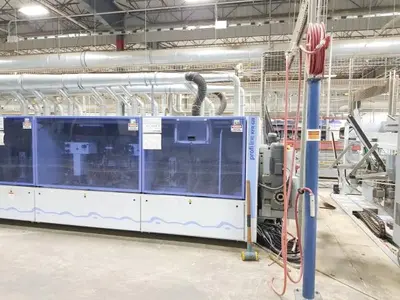

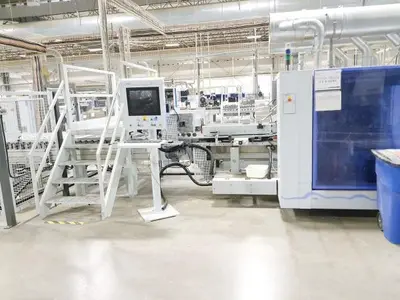

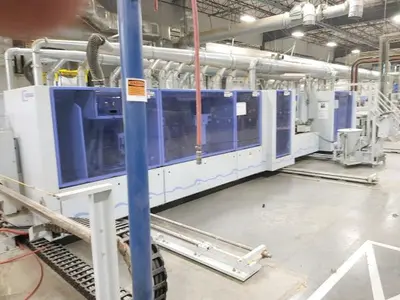

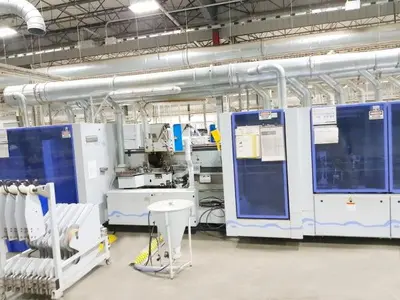

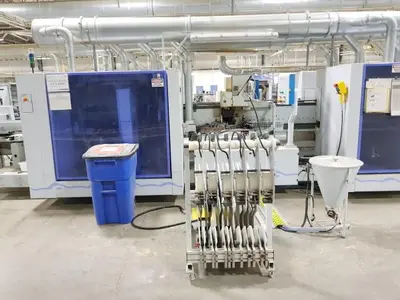

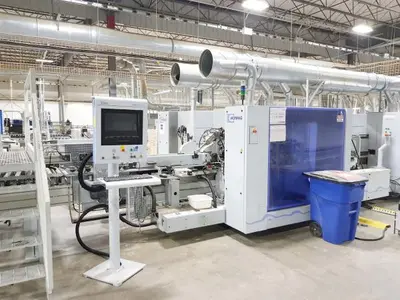

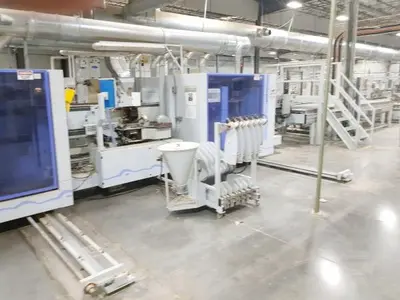

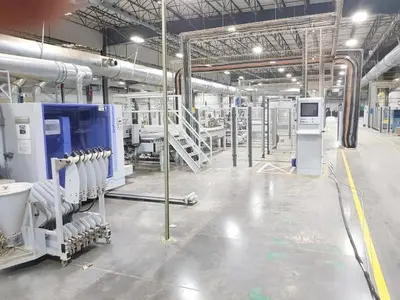

USED HOMAG KFR

Double Squaring and Edgebanding Machine - Independent Machine (or 1st and/or 2nd in the line)
Rolled edgebanding thickness (min/max) 0.3 / 3 mm
Panel thickness (min/max) 8 / 60 mm
Working width (min/max) 240 / 2500 mm
PC 22 numerical control
Variable feed speed (m/min) 10 - 60 (HIGH PERFORMANCE - SPEED PACKET)
Distance between pawls (mm) 500

SQUARING PART (for each side):
Spindle moulder (anti-splinter) 1 x 4.5 kW (hydro-clamping)
KD 11 hoggers (2 x 8.1 kW) hydro-clamping

EDGEBANDING PART (for each side):
Gluing system (hot-melt glue + pre-melting unit) A3 + A34
Door roll (N° 6 reels), Edge pressure zone "C"
Trimming group 2 x Kw 0.55
Corner trimming group (multi-radius) MF 20 (2 x Kw 0.55) 20°
Rounding group FF22 (4 x Kw 0.4) max 35 m/min
Edge scraping group PN 20
Finishing group (Glue scraper + Brushes) FA 11
