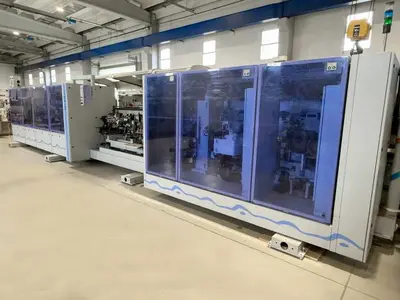

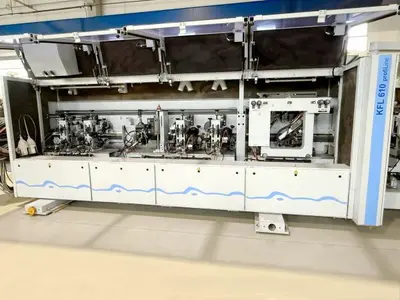

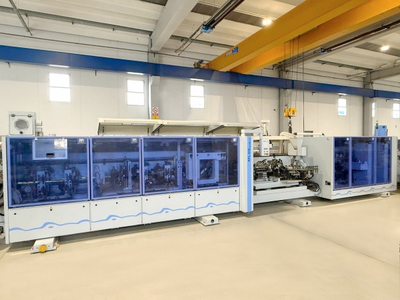

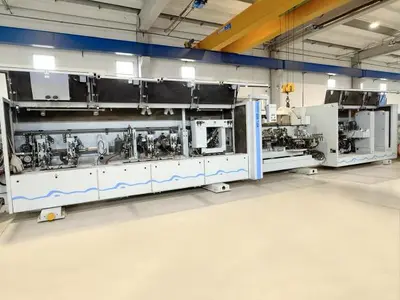

USED HOMAG KFL

SINGLE-SIDED "SOFTFORMING" SQUARING AND EDGE BANDER - LEFT-HANDED MACHINE
Rolled edge thickness (min/max) 0.4 / 3 mm
Panel thickness (min/max) 8 / 60 mm

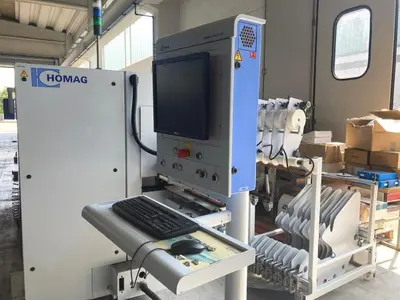

Numerical control / PC 22 / WoodCommander software
Variable feed speed (m/min) 10 - 40
Mobile tables (work unit holders) manually adjustable 30 - 80 mm

SQUARING PART:
Spraying unit (for anti-adhesive liquid)
Double KD 10 hoggers (2 x 6.6 kW)
Chamfering unit for softforming (2 x 1.85 kW) 0°-20°
Sanding unit (with abrasive belt) for straight edges KS 10 (120 x 120 mm) 2100)
Free space (700 mm)

EDGE BANDER:
Gluing system (Hotmelt glue + Pre-melting unit) E34 softforming

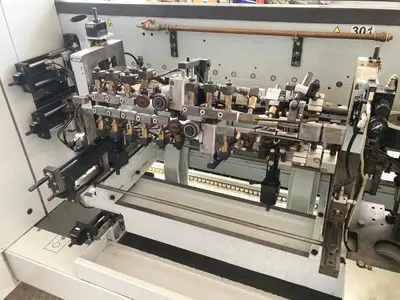

Pressure roller conveyor (4-position revolver) G for straight and shaped edges (softforming)
In-lay knives (top and bottom)
E3 roll holder (for 6 rolls)
HL 84 End trimming unit (2 x 0.8 kW) 0°-30° (max 25 m/min)

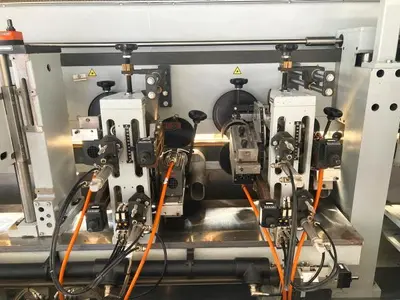

1st Fine trimming unit (2 x 0.55 kW) 0°-30° (pneumatic adjustment)
2nd Fine trimming unit (2 x 0.55 kW) 0°-30° (pneumatic adjustment)
Spindle moulder (for slots and edges) UF11 (1 x 4 kW) 0°-90°
Edge scraping unit PN20 (Pneumatic)
Finishing unit (glue scraper + brushes) FA11
