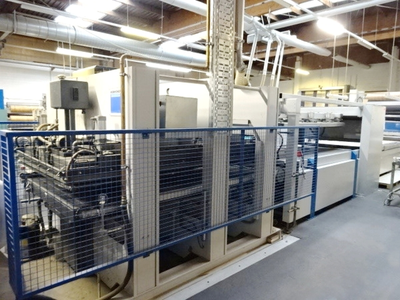

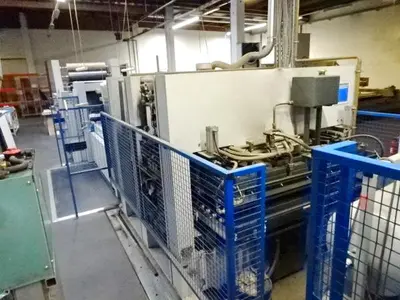

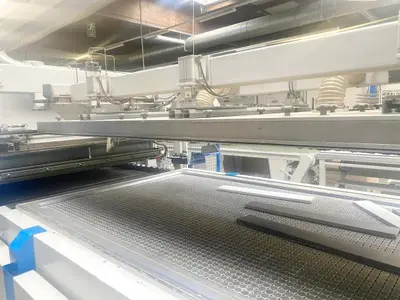

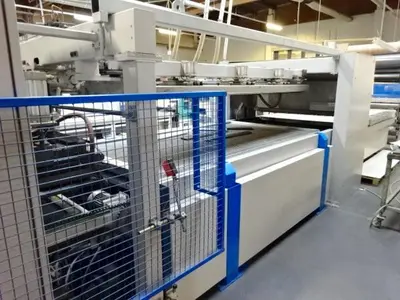

USED WEMHONER KT-MB-28/15-240

MEMBRANE PRESS
For overlaying MDF shaped workpieces with PVC, PP and PET
With VARIOPIN system
Double Automatic front loading/unloading and preparation table (1500 x 2800 mm tray)
Max pressure 2,400 KN
Working pressure 320 BAR
Dimensions of the Platens tables mm 1500 x 2800
Useful working dimensions mm 1250 (or 2 x 600) x 2550
Front loading side from mm 1500 (useful width mm 1250)
Separate electrical cabinet and controls
Electronic Programmer SIEMENS SIMATIC Panel Touch
Total Installed power KW 50 ca.
"Paternoster" reels Store (magazine)
Unwinder (reels holder) with coating sheet cutting system
