Numerical Control Type NC 400
Through-feed motorized conveyoring belts (No.) 2
No. 2 Horizontal units/supports

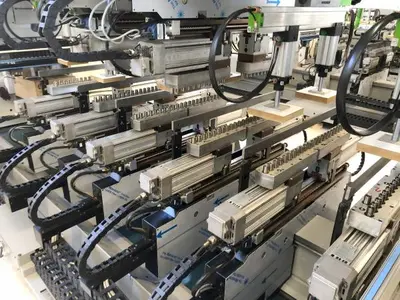

Drilling heads for each horizontal unit (N°) 2
Splindles for each horizontal drilling head (N°) 11
Max. working width (mm) 3200
Min. working width (mm) 205 (ca.)

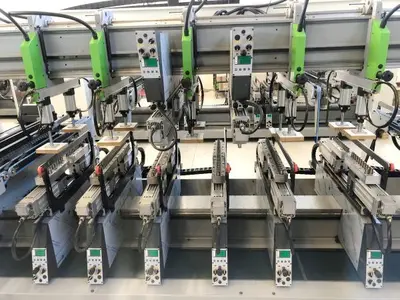

No. 6 Bottom vertical units/supports
Drilling heads/blocks for each bottom vertical unit (N°) 2
No. 2 Top vertical units/supports
Drilling heads/block for each top vertical unit (N°) 2
Vertical top pressure clamps (N°) 5
Transport belt to evacute chips (wastes)
Digital quota (axes) display
Total installed power (Kw) 59,1
The CNC controls the movement (X axe) of the mobile horizontal unit
The CNC controls the movement (Y axe) of the stops
