4-SIDED SIZING-SHAPING LINE (currently for Internal Doors).
Composed by of the following machines:
X10023A) Motorized infeed rollers table "CELASCHI"

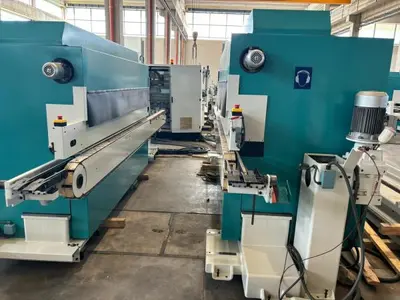

X10023B) Double End Tenoner "CELASCHI" Mod. TSA 3 B 480 A

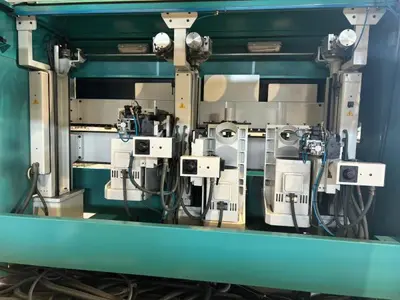

No. 4 Working Groups (left and right identical)
First: jumping vertical NC Milling Unit (useful height 300mm)
Belt Drive Motor: 9.2 kW @ 3000 RPM
Second: standard vertical NC Milling Unit (useful height 300mm)
Belt Drive Motor: 9.2 kW @ 3000 RPM
Third: jumping vertical NC Milling Unit (useful height 300mm)
Belt Drive Motor: 9.2 kW @ 3000 RPM
Forth: vertical Milling Unit, 1.5 kW @ 1470 RPM
Installed power KW 65
X10023C) 90° Motorized Transfer ("L-shape") conveyor "CELASCHI" Mod.

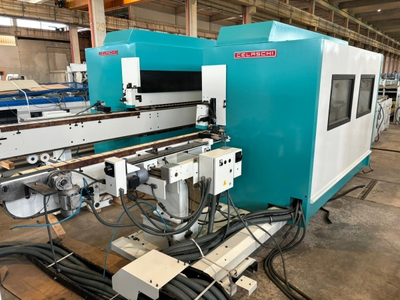

X10023D) Double End Tenoner "CELASCHI"" Mod. TSA 2 B 360

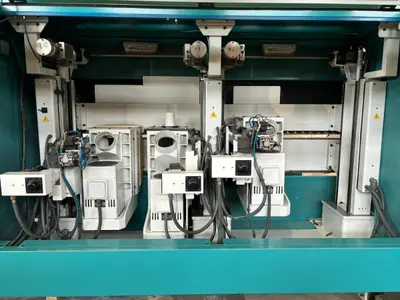

No. 3 Working Groups (left and right identical)
First: jumping vertical NC Milling Unit (useful height 300mm)
Belt Drive Motor: 9.2 kW @ 3000 RPM
Second: standard vertical NC Milling Unit (useful height 500mm)
Belt Drive Motor: 9.2 kW @ 3000 RPM
Third: jumping vertical NC Milling Unit (useful height 300mm)
Belt Drive Motor: 9.2 kW @ 3000 RPM
Forth: free space
Installed power KW 60
