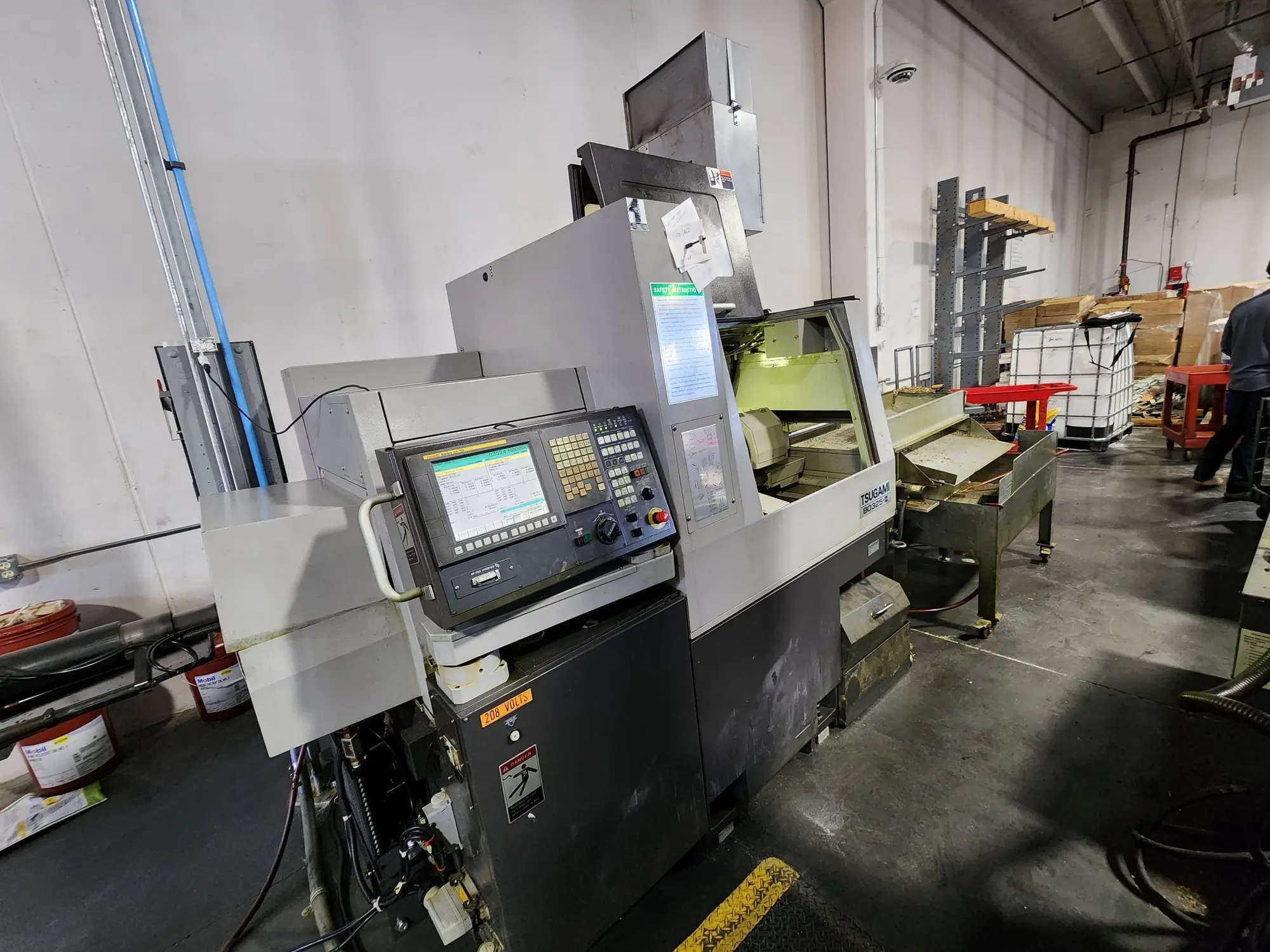

USED 2015 TSUGAMI BO325II

Tsugami BO325II CNC Swiss Lathe, New in 2015

General Machine Specifications per Manufacturer's Brochure

Number of Axes: 5 (X1,Y1,Z1, X2,Z2)
C Axis Optional
Chucking Barstock Diameter: 8 - 32mm (0.31 - 1.25")
Max Machining Length: 320 mm (12.59")
(w// direct Drive Rotary GB)
Max Drilling Diameter: 12 mm (.47")
Max Tapping Diameter: M10
Max Back Spindle Chucking Diameter; 32mm (1.25")
Max Back Spindle Drilling Diameter: 10mm (.39")
Max Back Spindle Tapping Diameter: M8
Max Tool Spindle Drilling Diameter: 8mm (.31")
Max Tool Spindle Tapping Diameter: M6
Max Tool Spindle Slotting Diameter: 45mm (1.77")
Main Spindle Speed: 200 - 8000 rpm
Back Spindle Speed: 200 - 8000 rpm
Rapid Traverse Rate: 32 m/min (X1,Y1,Y2 24 m/min)

Tool Storage Capacity (std/max): 27/39
Stick Tool Size: 16 x 16 x 100mm
Tooling Configuration:
Live Cross Drills: 4
OD Turning Tools: 8
ID Tools (by sub spindle) 2
ID/BW Tools: 5
BW Tools: 4 Fixed

Main Spindle: 3.7 / 5.5 kW
Back Spindle: 2.2 / 3.7 kW
Tool Spindle: 1.0 kW
Rotary Guide Bushing: 1.5 / 3.0 kW
X1: 0.5 kW
Y1, Z1, X2, Z2: 0.75 kW
Coolant Pump: 400 W
Lubricating Pump: 3 W

Power Requirements: 21.4 KVA
Air Requirements: 0.4 MPa or Above
Air Discharge rate: 40 NL/min
Coolant Tank Capacity: 180 L (47.5 gal)

Machine Dimensions: 104.5" x 57" x 77"
Machine Weight: 7,500 lbs

Fanuc 0i-TD Control
Edge Patriot 338 Magazine Barloader, 12' bar length cap
MP Systems V2 High Pressure Coolant System
TriMist 850 G2 Mist Collection System
LNS Turbo Chip Conveyor
Long Parts Attachment

Machine Ran:
- C360 Brass & C230 Red Brass
Only oil ran.
-XTREME CUT 757
Power On: 40,383 hrs
Operating Time: 22,500 hrs apprx
(at some point the clock was reset, average run time is 1-1.5 shifts/day)
