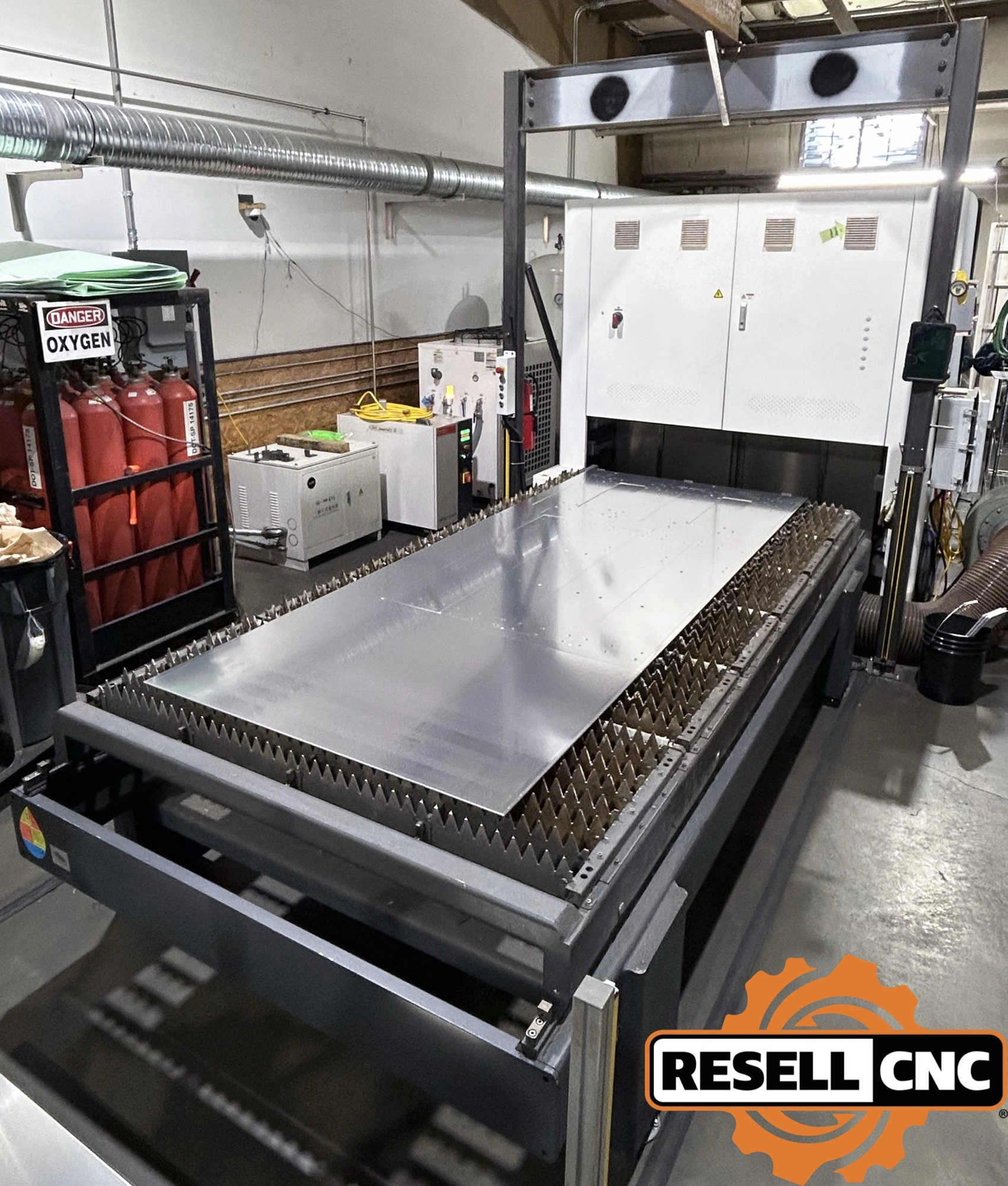

USED 2023 Bodor P3-CU

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Version 3.0+

Additional Machine Specs: Laser Power: 12 kW BodorPower fiber laser source

Max Linkage Speed: 7,874 in/min

Max Acceleration: 4.0 G (High Dynamic Motion)

Max Shuttle Table Load: Up to 1,450 kg



Control & Software Features:

One-Second Edge Finding (Vision-Based)

Visual Collision Avoidance and Active Obstacle Detection

Remnant Typesetting and “Lightning Perforation” (Fast Piercing Mode)

Bodor Nesting Software, Intelligent Anti-Shake, Auto-Focus Laser Head, Air-Pressure Intelligent Gas Control, Intelligent Maintenance Reminders

B Axis: false
C Axis: false

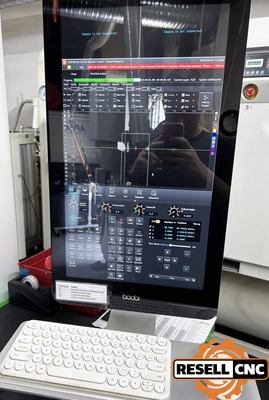

Control Make Model: BodorThinker CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 120" x 60
Watts: 12.0
X Travel: 120.0
Y Axis: false
Y Travel: 60.0
Z Travel: 13.8
