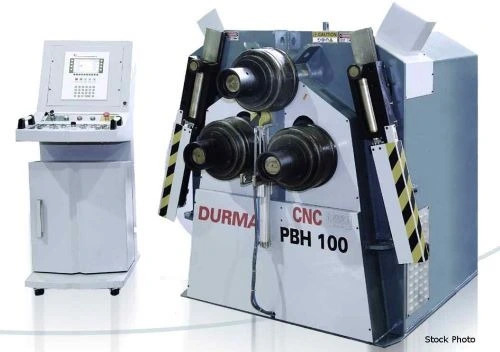

NEW DURMA PBH 100

DURMA (NEW) PBH 100 PROFILE ANGLE BENDING ROLL

SHAFT DIAMETERS
- 4.33" TOP
- 3.94" PLANETARY (2)
12.4" ROLL DIAMETERS
15 HP
0-26 FPM TURNING SPEED

2-1/4" X 2-1/4" SOLID - SQUARE, 24" DIAMETER
4" X 1/2" ANGLE - LEG OUT, 42" DIAMETER
4" X 1/2" ANGLE - LEG IN, 42" DIAMETER
2-3/4" SOLID - ROUND, 32" DIAMETER
4" SCHEDULE 40 PIPE, 48" DIAMETER

STANDARD EQUIPMENT
- 1 SET UNIVERSAL HARDENED GROUND ROLLS
- ROLLS HYDRAMOTOR DRIVEN THRU PLANETARY GEAR BOX
- 3-AXIS HARDENED SIDE SUPPORTS (LATERAL GUIDE
ROLLS) WITH:
FORWARD-BACKWARD (THRUST) MOVEMENT
UP-DOWN (TRANSLATION) MOVEMENT
LEFT-RIGHT (RADIAL) MOVEMENT
- SIDE SUPPORTS FOR ANGLE IRON BENDING
LEG IN
LEG OUT
- PORTABLE CONTROL UNIT WITH PROGRAMMABLE DROs
- VERTICAL OR HORIZONTAL OPERATION
- BODY CONSTRUCTED OF STRESS-RELIEVED STEEL
- HYDRAULIC/ ELECTRICAL OVERLOAD PROTECTION
- BOTTOM ROLL SHAFTS HYDRAULICALLY ADJUSTED
- WORLD STANDARD ELECTRICAL/HYDRAULIC COMPONENTS
- COMPLIANT WITH CE NORMS REGULATIONS

OPTIONS AVAILABLE - PRICE ON REQUEST
- SPECIAL ROLLS FOR TUBES, PROFILES, ETC.
- ROLLS/TOOLING FOR HARDWAY BEAM/CHANNEL BENDING
- ADJUSTABLE TURNING SPEED
- HYD CTRL OF LATERAL GUIDE ROLLS IN ADD'L 2 AXES
DIGITAL READOUT FOR SIDE SUPPORTS
- NC CONTROL SYSTEM - WITH OR WITHOUT AXIS
- CNC CONTROL SYSTEM
- REMOTE (WIRED OR WIRELESS)
- APPARATUS TO PREVENT U-I-H BENDING DEFORMATION
- SPIRAL BENDING APPARATUS
