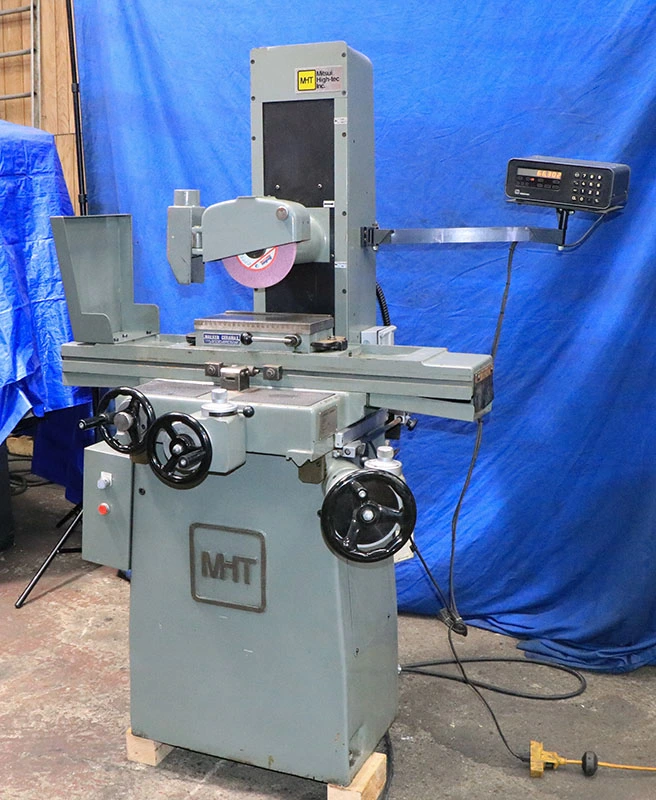

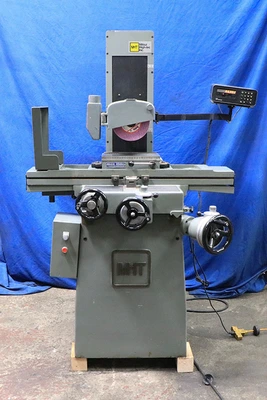

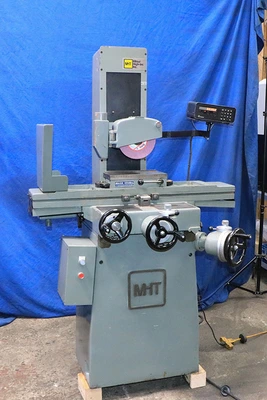

6" Width 12" Length MITSUI MSG-200MH, 1991, 50 MILLIONTHS DOWNFEED & CROSS FF SURFACE GRINDER, DRO, PMC
6" X 12" MITSUI "HIGH-PRECISION"
(MADE IN JAPAN)
HAND FEED SURFACE GRINDER
w/ROLLER BEARING TABLE
** FINE FEEDS FOR CROSS& VERTICAL AXES
(.000050" GRAD.)
** DIGITAL READOUT DISPLAY **
MODEL: MSG-200MH S/N:91067509 NEW:
WIDTH& LENGTH GROUND ..................... 6" x 12"
TABLE TO SPINDLE CENTER .................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ... 11"
LONGITUDINAL TABLE TRAVEL ................ 15"
CROSS TRAVEL ............................. 8"

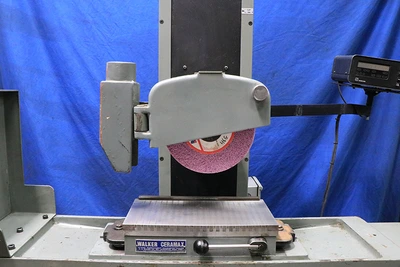

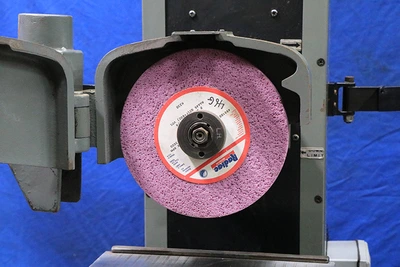

GRINDING WHEEL CAPACITY .......... 8" x 3/4" x 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL
(.001" GRAD.) .......................... 0.100"
VERTICAL FEED PER REV. OF HANDWHEEL
(.0001" GRAD.) ......................... 0.0500"
FINE FEED SYSTEM FOR CROSS FEED,
GRAD. TO ............................... 0.00005"
FINE FEED SYSTEM FOR VERT. FEED,
GRAD. TO ............................... 0.00005"
APPROX. WEIGHT ........................... 1,500 LBS.
APPROX. DIMENSIONS ................ 58" x 46" x 71"H
EQUIPPED WITH:

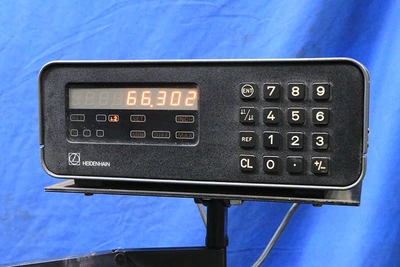

"HEIDENHAIN" 1-AXIS DIGITAL READOUT DISPLAY

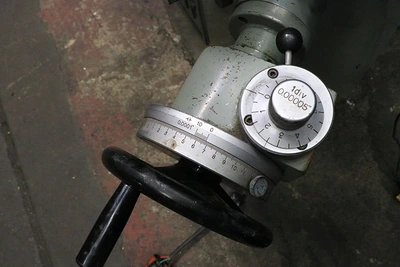

FINE FEED OPTIONS FOR BOTH CROSS& VERTICAL AXES,
0.000050" GRADUATION ON DIALS
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...
DRIVEN BY CABLE SYSTEM
HARDENED & REPLACEABLE STEEL WAYS ON TABLE,
CARRIAGE/SADDLE & COLUMN
CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN
1-1/3 HP SPINDLE MOTOR
AUTOMATIC LUBRICATION SYSTEM

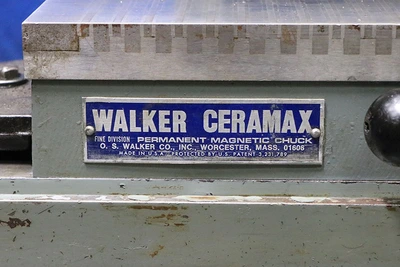

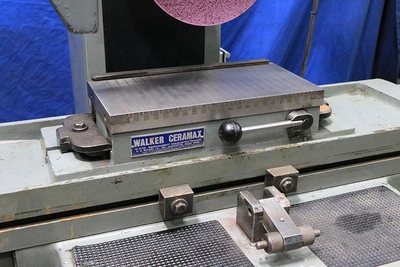

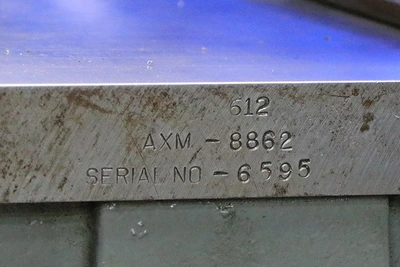

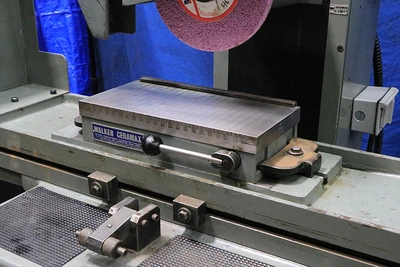

6" X 12" "O.S. WALKER" "CERAMAX" FINE-DIVISION
PERMANENT MAGNETIC CHUCK
MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS
Link to video: https://youtu.be/SLPpbzz8OvM?si=IWfASl7_N8n4VIvY
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
** JUST BEAUTIFUL - ORIGINAL PAINT **
** EXCELLENT CONDITION& APPEARANCE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
