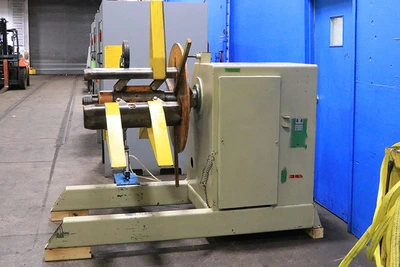

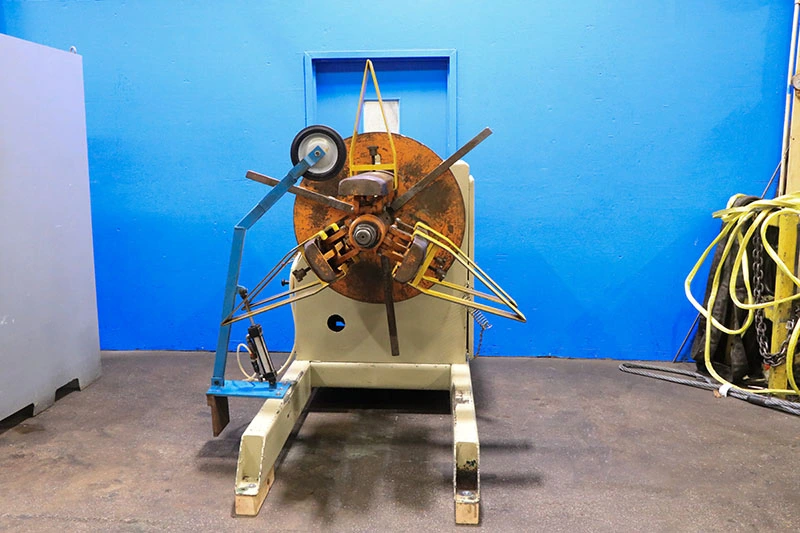

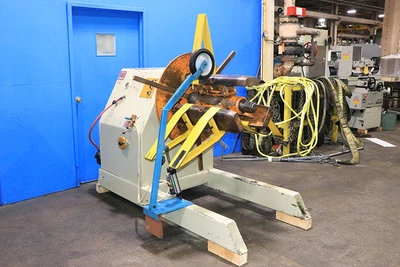

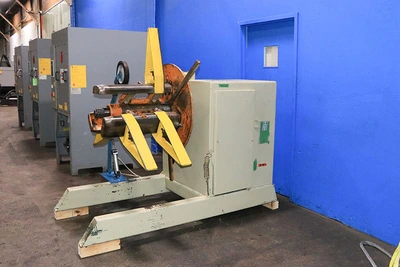

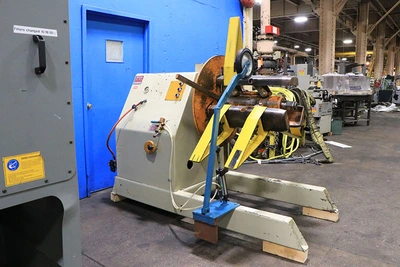

USED 1977 American Steel Line 1000

6000Lb Cap. 24" Width American Steel Line 1000 UNCOILER

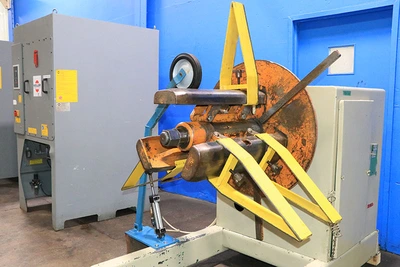

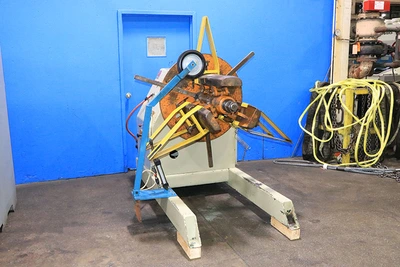

6,000 LB. AMERICAN STEEL LINE MOTORIZED COIL REEL

MODEL 1000         S/N 5708        YEAR 1977

Capacity ......................... 6,000 lbs

Width ............................ 24"

Actual width of mandrels ......... 33"

Inside diameter range ............ 16" - 21"

Maximum outside diameter ......... 60"

Floor to centerline of mandrel ... 40-1/2"

Speed ............................ 33-100 fpm

Motor ............................ 2 HP

Dimensions 74" x 44" x 62" high

Weight 3,500 lbs

Machine is equipped with:

- Vari-speed drive

- Partial backing plate

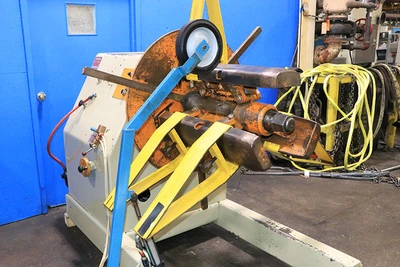

- Keepers (As Shown)

- Loop Control

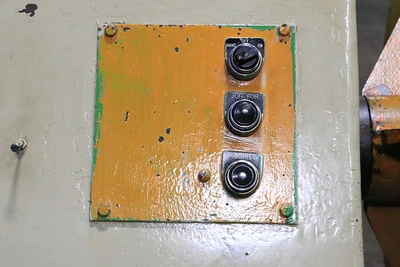

- Jog For/Rev mode

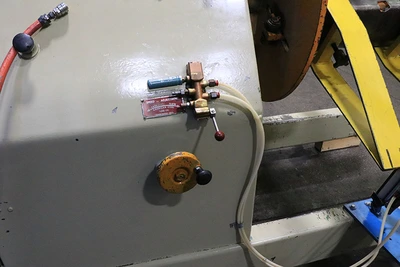

- Pneumatic Hold Down Arms

FOR MORE INFORMATION: Call Rick at 973-497-7560
